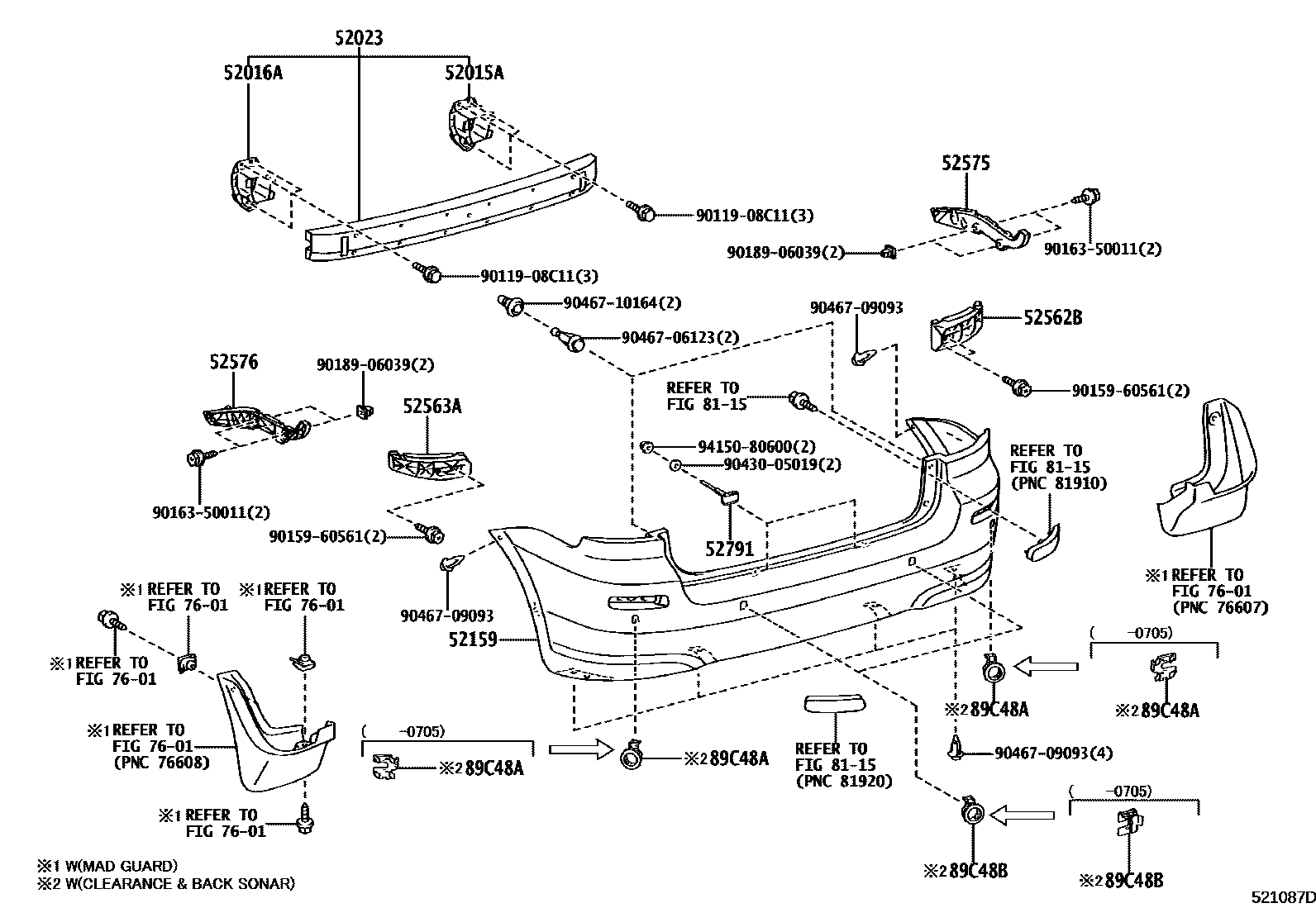

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-0F010iAUR10,CUR10,ZNR1#200402-200902

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-0F010iAUR10,CUR10,ZNR1#200402-200705

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-0F010iAUR10,CUR10,ZNR1#200402-200705

52159COVER, REAR BUMPER

main52159-0F900iAUR10,CUR10,ZNR1#200402-200705

PAINT REQ.

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-0F010iAUR10,CUR10,ZNR1#200402-200705

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-0F010iAUR10,CUR10,ZNR1#200402-200705

52575RETAINER, REAR BUMPER SIDE, RH

main52575-0F010iAUR10,CUR10,ZNR1#200402-200705

52576RETAINER, REAR BUMPER SIDE, LH

main52576-0F010iAUR10,CUR10,ZNR1#200402-200705

52791BOLT, BUMPER MOULDING SET, NO.1

main52791-12040iAUR10,CUR10,ZNR1#200402-200705

7601

8115

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

9011908C11

main90119-08C11

9015960561

main90159-60561

9016350011

main90163-50011

9018906039

main90189-06039

9043005019

main90430-05019

9046706123

main90467-06123

9046709093

main90467-09093

9046710164

main90467-10164

9415080600

main94150-80600

22 parts on this diagram · 1 diagram in section
