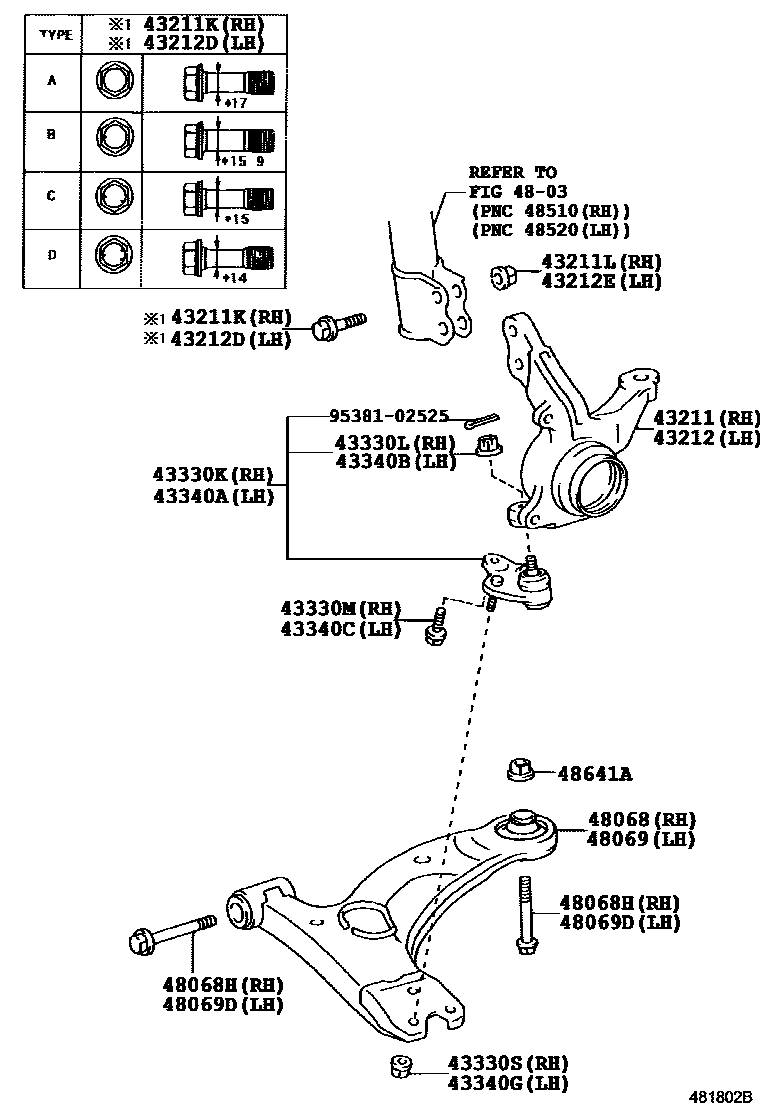

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-0F010iAUR10,ZNR1#200402-200705

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17009iAUR10,ZNR1#200402-200705

OD=15.9,TYPE B:REFER ILLUST.

main90105-17010iAUR10,CUR10,ZNR1#200402-200705

OD=15,TYPE C:REFER ILLUST.

main90105-17011iAUR10,CUR10,ZNR1#200402-200705

OD=14,TYPE D:REFER ILLUST.

main90105-W0070iAUR10,ZNR1#200402-200705

OD=17,TYPE A:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17001iAUR10,ZNR1#200402-200705

43212KNUCKLE, STEERING, LH

main43212-0F010iAUR10,ZNR1#200402-200705

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17009iAUR10,CUR10,ZNR1#200402-200705

OD=15.9,TYPE B:REFER ILLUST.

main90105-17010iAUR10,ZNR1#200402-200705

OD=15,TYPE C:REFER ILLUST.

main90105-17011iAUR10,CUR10,ZNR1#200402-200705

OD=14,TYPE D:REFER ILLUST.

main90105-W0070iAUR10,CUR10,ZNR1#200402-200705

OD=17,TYPE A:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17001iCUR10200402-200705

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09360iCUR10200402-200902

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iAUR10,CUR10,ZNR1#200402-200705

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-W0077iCUR10200402-200705

sub90105-12346

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-W0037iCUR10200402-200705

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09360iCUR10200402-200705

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iCUR10200402-200705

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-W0077iCUR10200402-200705

sub90105-12346

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-W0037iCUR10200402-200705

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-0F010iCUR10200402-200705

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-W0086iCUR10200402-200705

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-0F010iCUR10200402-200705

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-W0086iCUR10200402-200705

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90179-14068iCUR10200402-200705

9538102525

main95381-02525

21 parts on this diagram · 1 diagram in section
