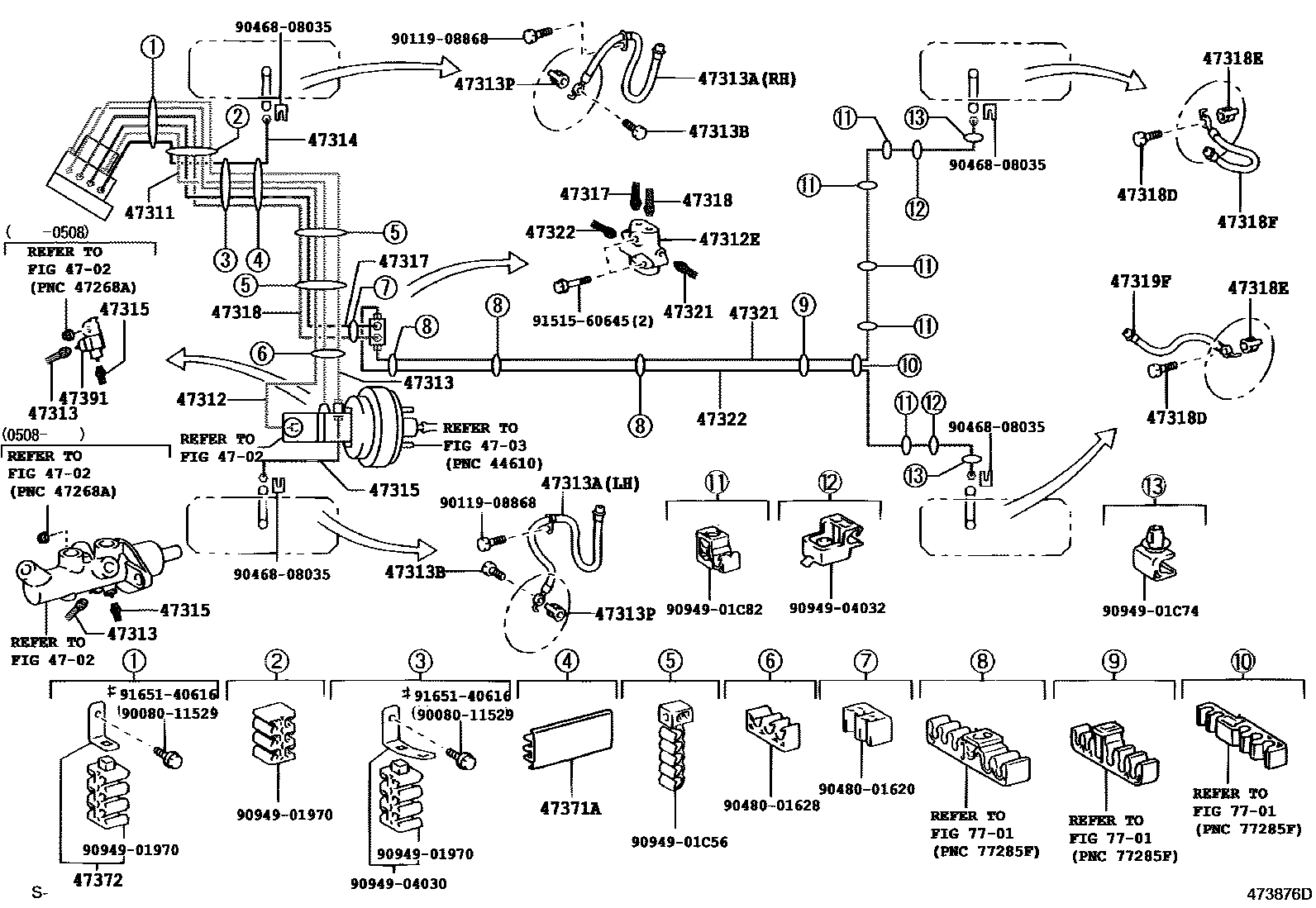

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1W(VSC) 0004 1W(VSC) 0005 1W(VSC) 0006 1W(VSC) 0007 1 0008 1W(VSC) 0009 1W(VSC)

4702

4703

47311TUBE, FRONT BRAKE, NO.1

main47311-0F020iCUR10..RHD200402-200705

main47311-0F040iZNR1#..LHD200402-200705

main47311-0F050iAUR10..RHD200508-200705

main47311-0F060iAUR10..LHD200508-200705

47312TUBE, FRONT BRAKE, NO.2

main47312-0F020iZNR1#..RHD200402-200705

main47312-0F040iCUR10..LHD200402-200705

main47312-0F051iAUR10..RHD200508-200705

main47312-0F061iAUR10..LHD200508-200705

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90904-12082iCUR10¥3,490200402-200705

47313TUBE, FRONT BRAKE, NO.3

main47313-0F020iCUR10,ZNR1#..RHD200402-200902

main47313-0F040iCUR10,ZNR1#..LHD200402-200902

main47313-0F050iAUR10..RHD200508-200902

main47313-0F060iAUR10..LHD200508-200902

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90080-94199iAUR10,CUR10,ZNR1#..DCR,DCRL,HTWC200402-200602

RH

sub90947-02D22¥2,610

main90080-94199iAUR10,ZNR1#..DCR,DCRL,HTWC200602-200610

(L),RH

sub90947-02D22¥2,610

main90080-94200iAUR10,CUR10,ZNR1#..DCR,DCRL,HTWC¥2,060200402-200602

LH

sub90947-02D23¥2,610

main90080-94200iAUR10,ZNR1#..DCR,DCRL,HTWC¥2,060200602-200610

(L),LH

sub90947-02D23¥2,610

main90947-02D22iAUR10,ZNR1#¥2,610200602-200705

(J),RH

main90947-02D22iAUR10,ZNR1#¥2,610200705

RH

main90947-02D23iAUR10,ZNR1#¥2,610200705

LH

main90947-02D23iAUR10,ZNR1#¥2,610200602-200705

(J),LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iCUR10¥220200402-200705

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iAUR10,ZNR1#¥280200402-200705

47314TUBE, FRONT BRAKE, NO.4

main47314-0F020iCUR10..RHD200402-200705

main47314-0F040iZNR1#..LHD200402-200705

main47314-0F050iAUR10..RHD200508-200705

main47314-0F060iAUR10..LHD200508-200705

47315TUBE, FRONT BRAKE, NO.5

main47315-02160iAUR10,ZNR1#..RHD¥750200402-200902

main47315-05150iAUR10,ZNR1#..LHD¥750200402-200902

47317TUBE, FRONT BRAKE, NO.7

main47317-0F020iCUR10..RHD200402-200705

main47317-0F040iZNR1#..LHD200402-200705

main47317-0F050iAUR10..RHD200508-200705

main47317-0F060iAUR10..LHD200508-200705

47318TUBE, FRONT BRAKE, NO.8

main47318-0F020iCUR10..RHD200402-200705

main47318-0F040iZNR1#..LHD200402-200705

main47318-0F050iAUR10..RHD200508-200705

main47318-0F060iAUR10..LHD200508-200705

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iAUR10,ZNR1#¥220200402-200705

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iAUR10,ZNR1#¥280200402-200705

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02E84iCUR10200402-200705

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02E84iCUR10200402-200705

47321TUBE, REAR BRAKE, NO.1

main47321-0F010iAUR10,CUR10,ZNR1#200402-200902

47322TUBE, REAR BRAKE, NO.2

main47322-0F010iAUR10,CUR10,ZNR1#200402-200902

47371ACLAMP, BRAKE TUBE, NO.1

main47371-12230iCUR10¥320200402-200705

47372CLAMP, BRAKE TUBE, NO.2

main47374-12050¥580

47391WAY, BRAKE TUBE

main47391-05140iCUR10,ZNR1#..LHD200402-200508

7701

9008011529

main90080-11529

9011908868

main90119-08868¥70

9046808035

main90468-08035¥110

9048001620

main90480-01620¥160

9048001628

main90480-01628¥200

9094901970

main90949-01970¥500

9094901C56

main90949-01C56¥510

9094901C74

main90949-01C74¥360

9094901C82

main90949-01C82¥110

9094904030

main90949-04030¥630

9094904032

main90949-04032¥160

9151560645

main91515-60645¥110

9165140616

main91651-40616¥60

36 parts on this diagram · 9 diagrams in section
