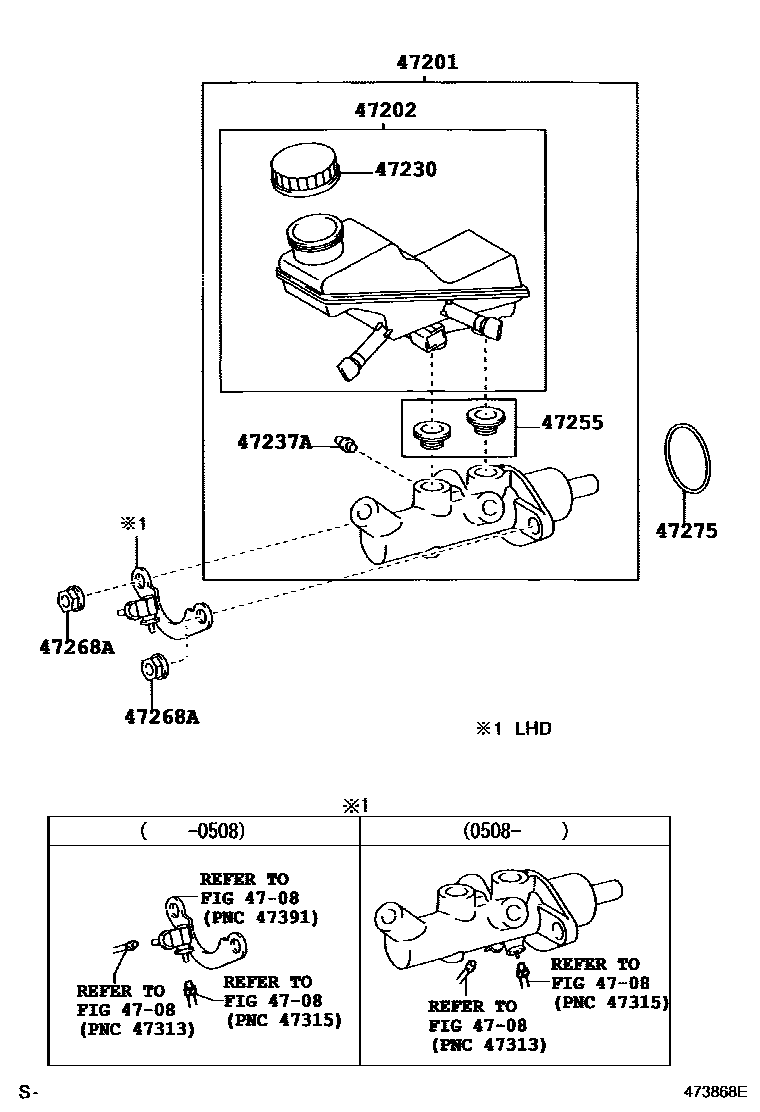

BRAKE MASTER CYLINDER

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0F030iCUR10,ZNR1#..LHD200402-200508

sub47201-0F031

main47201-0F031iAUR10,ZNR1#..LHD200508-200711

sub47201-0F032

main47201-0F032iAUR10,ZNR1#..LHD200712

main47201-0F040iAUR10,CUR10,ZNR1#..RHD200402-200711

sub47201-0F041

main47201-0F041iAUR10,ZNR1#..RHD200712

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-0F010iCUR10,ZNR1#..LHD200402-200902

main47220-0F020iAUR10,CUR10,ZNR1#..RHD200402-200902

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D010iCUR10200402-200705

47237ASTOPPER, BREKE MASTER CYLINDER RESERVOIR TANK

main47237-0D010iCUR10200402-200705

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09010iCUR10200402-200902

47268ANUT, BRAKE MASTER CYLINDER

main47268-0D010iAUR10,CUR10,ZNR1#200402-200902

47275GASKET, BRAKE MASTER CYLINDER

main47275-05020iCUR10200402-200705

8 parts on this diagram · 1 diagram in section
