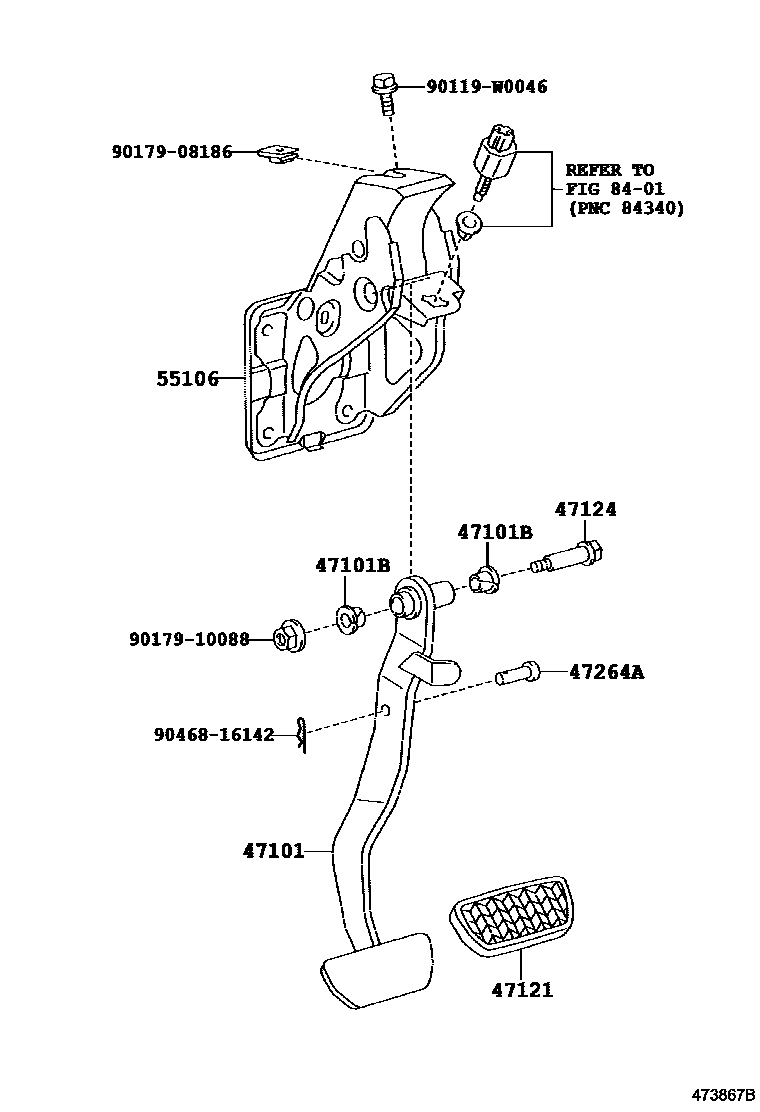

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-0F010iCUR10..LHD200402-200705

main47101-0F020iZNR11..LHD..5FS200402-200705

main47101-0F030iAUR10,ZNR1#..RHD..(5F,6F)200402-200705

main47101-0F040iZNR11..RHD..5FS200402-200705

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iCUR10200402-200705

47121PAD, BRAKE PEDAL

main31321-52010iAUR10,CUR10,ZNR1#..5F,6F200402-200902

main47121-52010iZNR11..5FS200402-200902

47124SHAFT, BRAKE PEDAL

main90109-10174iCUR10200402-200705

47264APIN(FOR PUSH ROD)

main47148-20030iAUR10,ZNR1#200402-200705

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-0F010iAUR10,CUR10,ZNR1#..RHD200402-200902

main55106-0F020iAUR10,CUR10,ZNR1#..LHD200402-200902

8401

90119W0046

main90119-W0046

9017908186

main90179-08186

9017910088

main90179-10088

9046816142

main90468-16142

11 parts on this diagram · 1 diagram in section
