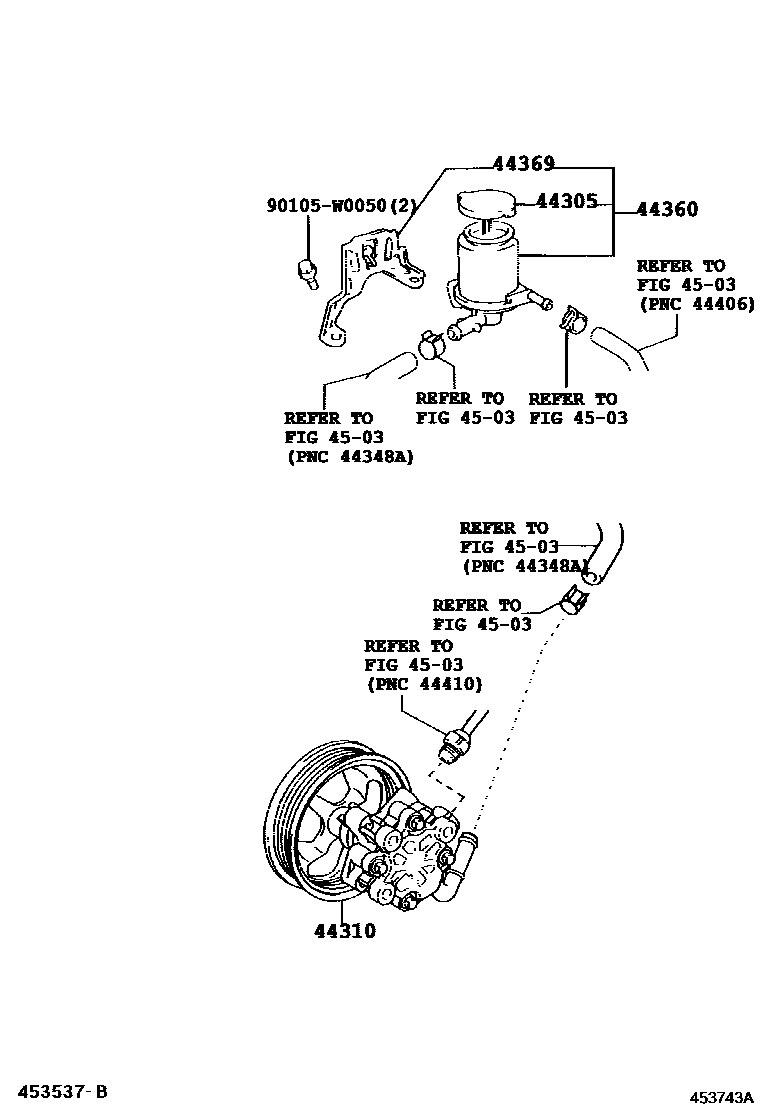

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22040iAUR10200508-200801

sub44305-22060

main44305-22060iAUR10200802

sub44305-22061

main44305-28030iCUR10200402-200801

sub44305-28060

main44305-28060iZNR1#200802

sub44305-28061

44310PUMP ASSY, VANE

main44310-05100iCUR10200402-200508

main44310-05120iAUR10200508-200902

main44310-0F010iZNR1#200402-200902

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-64010iZNR1#200402-200902

main44360-64020iCUR10200402-200508

44369BRACKET, OIL RESERVOIR, NO.1

main44369-64010iCUR10200402-200705

4503

90105W0050

main90105-W0050

6 parts on this diagram · 3 diagrams in section
