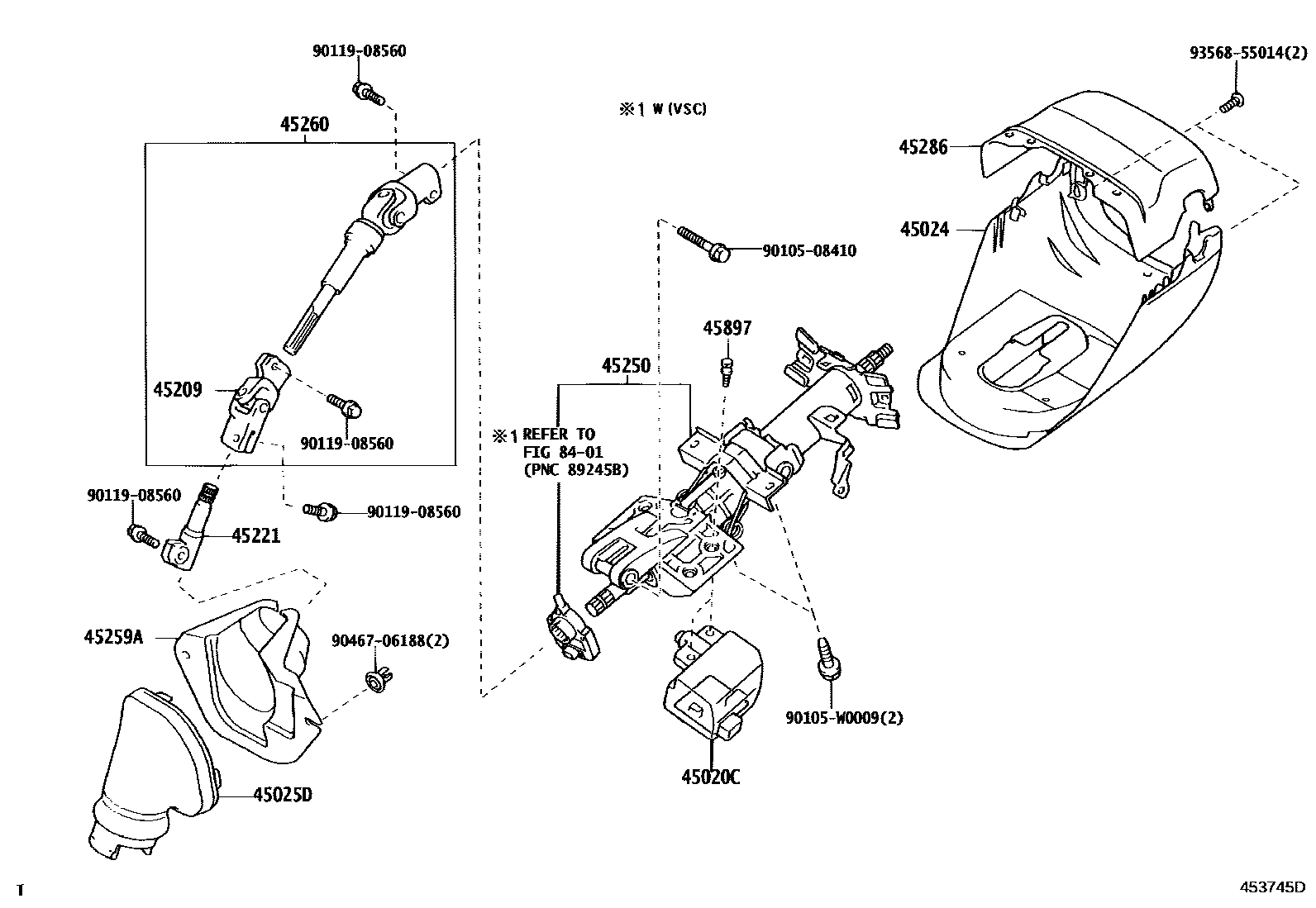

STEERING COLUMN & SHAFT

0001 1 0002 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0F010iAUR10,CUR10,ZNR1#200402-200902

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-0F010-B0iAUR10,ZNR1#200402-200902

DK.GRAY,TRIM1#

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0F010iCUR10..RHD200402-200705

main45025-0F020iAUR10,ZNR1#..LHD200402-200705

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-05020iCUR10,ZNR1#..LHD200402-200404

sub45209-05H00

main45209-05021iCUR10..LHD200404-200705

main45209-0F010iCUR10,ZNR1#..RHD200402-200404

sub45209-0FH00

main45209-0F011iCUR10..RHD200404-200705

45221SHAFT, STEERING INTERMEDIATE

main45221-05010iCUR10,ZNR1#200402-200404

sub45260-05H00

sub45260-05H01

sub45260-0FH00

sub45260-0FH01

main45221-05011iAUR10,CUR10,ZNR1#200404-200902

45250COLUMN ASSY, STEERING

main45250-0F020iZNR1#..RHD200402-200705

main45250-0F040iCUR10..LHD200402-200705

main45250-0F050iAUR10..RHD200508-200705

main45250-0F060iAUR10..LHD200508-200705

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-0F010iZNR1#..LHD200402-200705

main45259-0F020iZNR1#..RHD200402-200705

main45259-0F030iAUR10..LHD200402-200705

main45259-0F040iAUR10..RHD200402-200705

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-0F010iCUR10,ZNR1#..RHD200402-200404

sub45260-0FH00

main45260-0F011iAUR10,ZNR1#..RHD200404-200705

main45260-0F020iCUR10,ZNR1#..LHD200402-200404

sub45260-0FH01

main45260-0F021iAUR10,ZNR1#..LHD200404-200705

45286COVER, STEERING COLUMN

main45286-0F010-B0iAUR10,CUR10,ZNR1#200402-200902

DK.GRAY,TRIM1#

45897BOLT, STEERING LOCK SET

main45897-12020iCUR10200402-200705

8401

9010508410

main90105-08410

90105W0009

main90105-W0009

9011908560

main90119-08560

9046706188

main90467-06188

9356855014

main93568-55014

16 parts on this diagram · 2 diagrams in section
