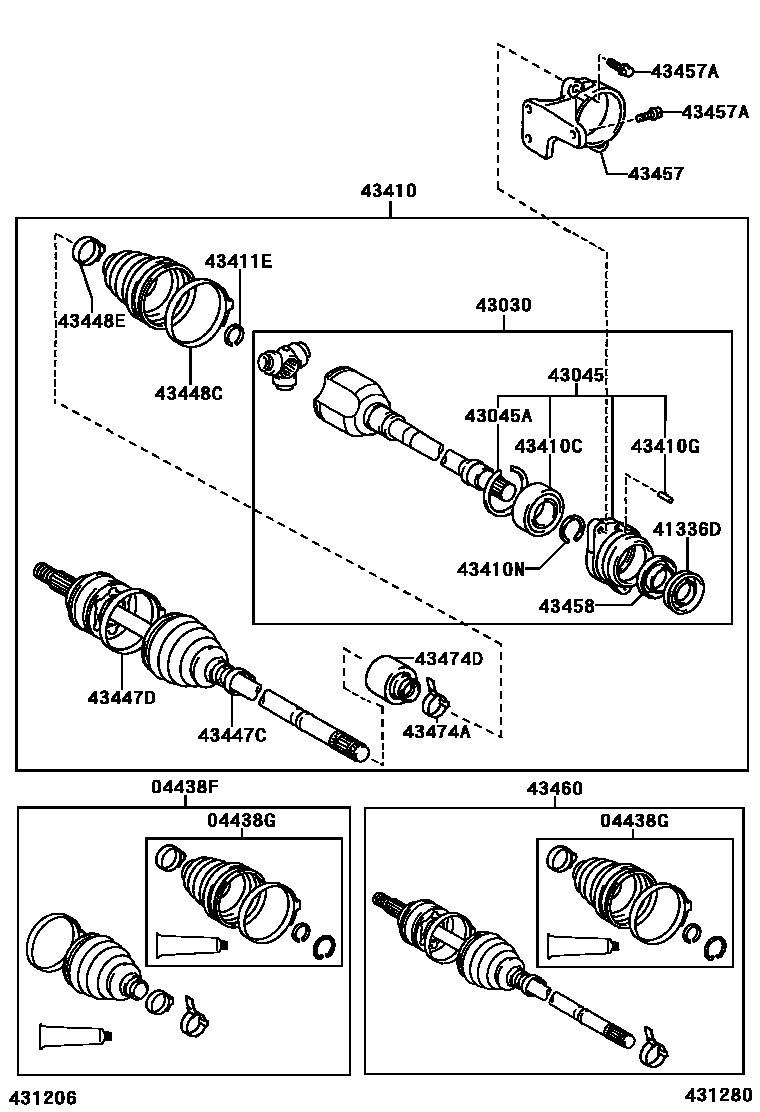

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1RH 0004 1LH 0005 1RH 0006 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-02340iZNR1#200402-200705

main04427-05180iAUR10200508-200705

sub04427-05181

main04438-0F040iCUR10200402-200508

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-02260iZNR1#200402-200705

main04437-05070iAUR10200508-200705

main04438-05250iCUR10¥6,700200402-200508

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-05030iZNR1#¥570200402-200509

sub41336-05140¥380

main41336-05080iCUR10¥740200402-200508

main41336-05100iAUR10200508-200705

main41336-05140iZNR1#¥380200510-200705

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-05200iAUR10200508-200705

main43030-0F010iCUR10200402-200508

main43040-0F010iZNR1#200402-200705

43045CASE SUB ASSY, DRIVE SHAFT BEARING

main43045-64020iCUR10¥4,940200402-200508

43045ARING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)

main90520-69002iCUR10¥100200402-200705

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-05320iAUR10¥85,400200508-200705

sub43410-05321

main43410-0F010iZNR1#200402-200705

main43410-0F021iCUR10200402-200508

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-41003iCUR10¥2,750200402-200508

43410GPIN, STRAIGHT (FOR FRONT DRIVE SHAFT)

main90250-06003iCUR10¥90200402-200508

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-05050iAUR10200508-200705

main90080-52055iZNR1#¥90200402-200705

main90080-52106iCUR10¥160200402-200508

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-02020iCUR10¥60200402-200508

main43425-05040iAUR10200508-200705

main90080-52052iZNR1#¥160200402-200705

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02110iZNR1#¥310200402-200705

main42345-05280iAUR10200508-200705

main42345-0F020iCUR10200402-200508

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02100iZNR1#¥440200402-200705

main42345-05240iCUR10¥360200402-200508

main42345-05270iAUR10¥680200508-200705

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02080iCUR10¥650200402-200508

main42345-05090iZNR1#¥680200402-200705

main42345-05210iAUR10200508-200705

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02090iCUR10¥250200402-200508

main42345-05100iZNR1#¥310200402-200705

main42345-05250iAUR10200508-200705

43457BRACKET, DRIVE SHAFT BEARING

main43457-05030iCUR10200402-200508

main43457-05050iAUR10200508-200705

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10361iCUR10¥110200402-200705

*10-1.25PX22-19.5

43458COVER, FRONT DRIVE SHAFT DUST

main43458-05020iCUR10¥680200402-200508

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09K90iZNR1#200402-200705

main43470-09B50iCUR10200402-200508

main43470-09M10iAUR10200508-200705

sub43470-09M11

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-05220iZNR1#¥240200402-200705

main42345-05260iAUR10200508-200705

main42345-0F040iCUR10200402-200508

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-02080iZNR1#200402-200705

main43474-05140iAUR10200508-200705

main43474-0F010iCUR10200402-200508

21 parts on this diagram · 6 diagrams in section
