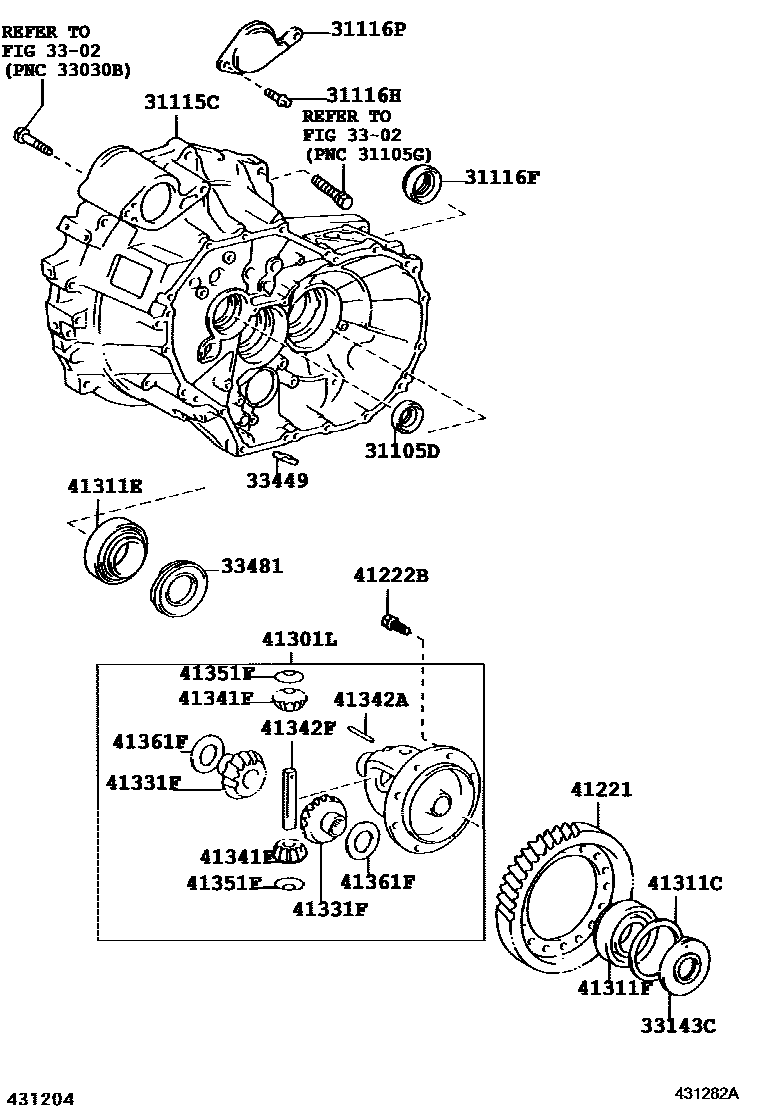

FRONT AXLE HOUSING & DIFFERENTIAL
31105CASE SUB-ASSY, TRANSAXLE(MTM)
31115CCASE, FRONT TRANSAXLE(MTM)
sub31105-12230
sub31115-02030
sub31115-12111
sub31105-12240
sub31115-20081
sub31115-20061
31116FSEAL, OIL(FOR FRONT TRANSAXLE CASE COVER)
sub90311-40030
31116HBOLT(FOR FRONT TRANSAXLE CASE COVER)
31116PCOVER, TRANSAXLE CASE
3302
33143CBAFFLE, FRONT DIFFERENTIAL OIL
33449MAGNET, TRANSMISSION
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=35
N=32
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41301LCASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.00,MARK 0
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.30,MARK 6
T=2.35,MARK 7
T=2.40,MARK 8
T=2.45,MARK 9
T=2.50,MARK A
T=2.55,MARK B
T=2.60,MARK C
T=2.65,MARK D
T=2.70,MARK E
T=2.75,MARK F
T=2.80,MARK G
T=2.85,MARK H
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.25
T=1.30
T=1.35
T=1.40
T=1.45
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
T=1.95
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
T=1.0,MARK 1
T=1.1,MARK 2
T=1.2,MARK 3
T=1.3,MARK 4
23 parts on this diagram · 3 diagrams in section
