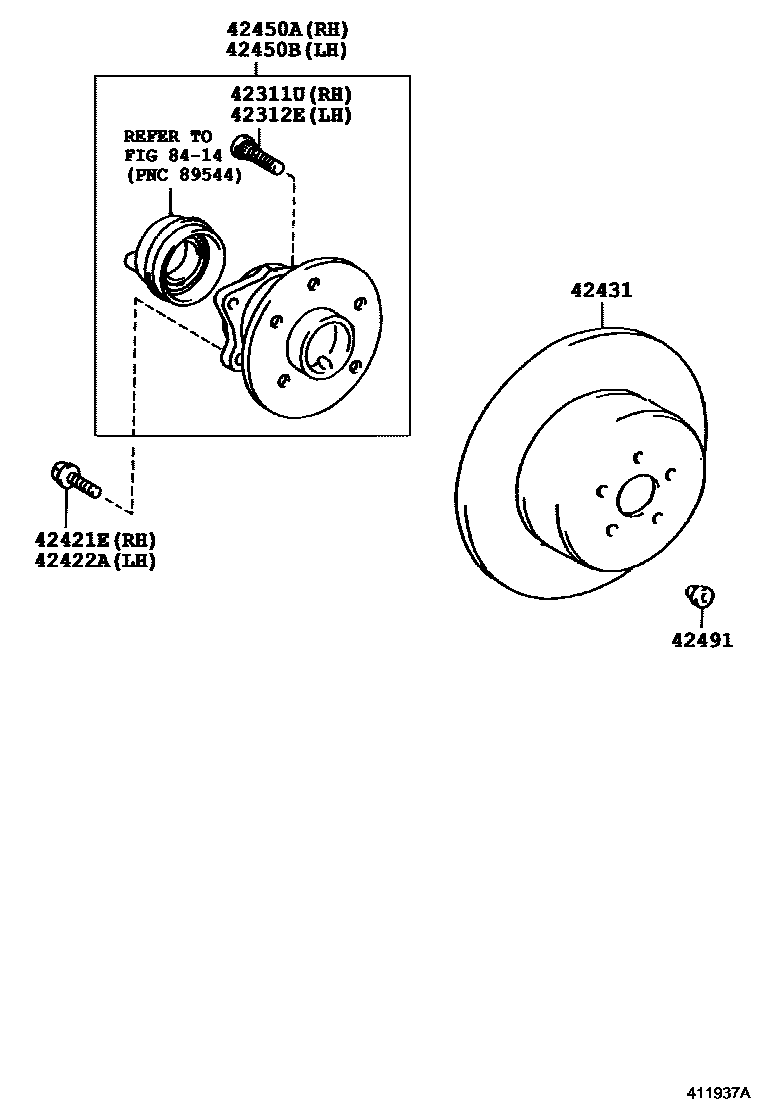

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iCUR10¥240200402-200705

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iCUR10¥240200402-200705

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12345iCUR10¥260200402-200705

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12345iCUR10¥260200402-200705

42431DISC, REAR

main42431-0F010iCUR10200402-200705

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-0F010iAUR10,CUR10,ZNR1#200402-200902

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-0F010iCUR10200402-200705

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-05010iCUR10¥140200402-200705

8414

9 parts on this diagram · 1 diagram in section
