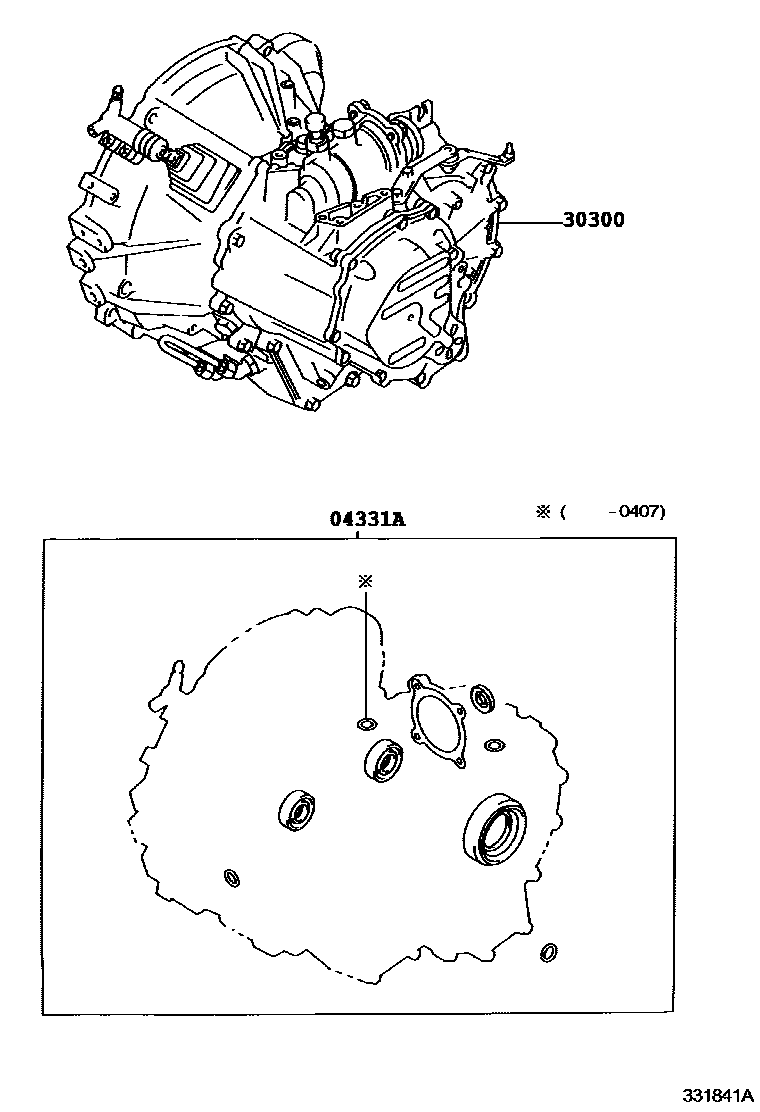

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1E358 0002 1C251,C251A 0003 1EA62,EA63 0004 1EA62,EA63

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-05070iZNR1#..5F200402-200507

sub04331-05090

main04331-05090iZNR1#..5F200508-200705

sub04331-05101

main04331-05100iZNR1#..5F200705

sub04331-05101

main04331-12640iZNR11..5FS200511-200706

sub04331-12641

main04331-64010iCUR10200402-200508

sub04331-64011

main04331-64020iZNR11..5FS200402-200508

sub04331-64021

main04331-64031iZNR11..5FS200508-200510

sub04331-12640

main04331-64040iAUR10200508-200705

main04331-64070iAUR10200705

30300TRANSAXLE ASSY, MANUAL

main30300-0F010iZNR1#..5F200402-200902

C251

sub30300-12E70

main30300-64010iCUR10200402-200503

E358

sub30300-64011

main30300-64011iCUR10200503-200508

E358

main30300-64020iAUR10..DCRL200508-200902

EA62

main30300-64030iAUR10..DCR,DCRE200508-200902

EA63

main30340-64010iZNR11..5FS200402-200902

C251A

2 parts on this diagram · 4 diagrams in section
