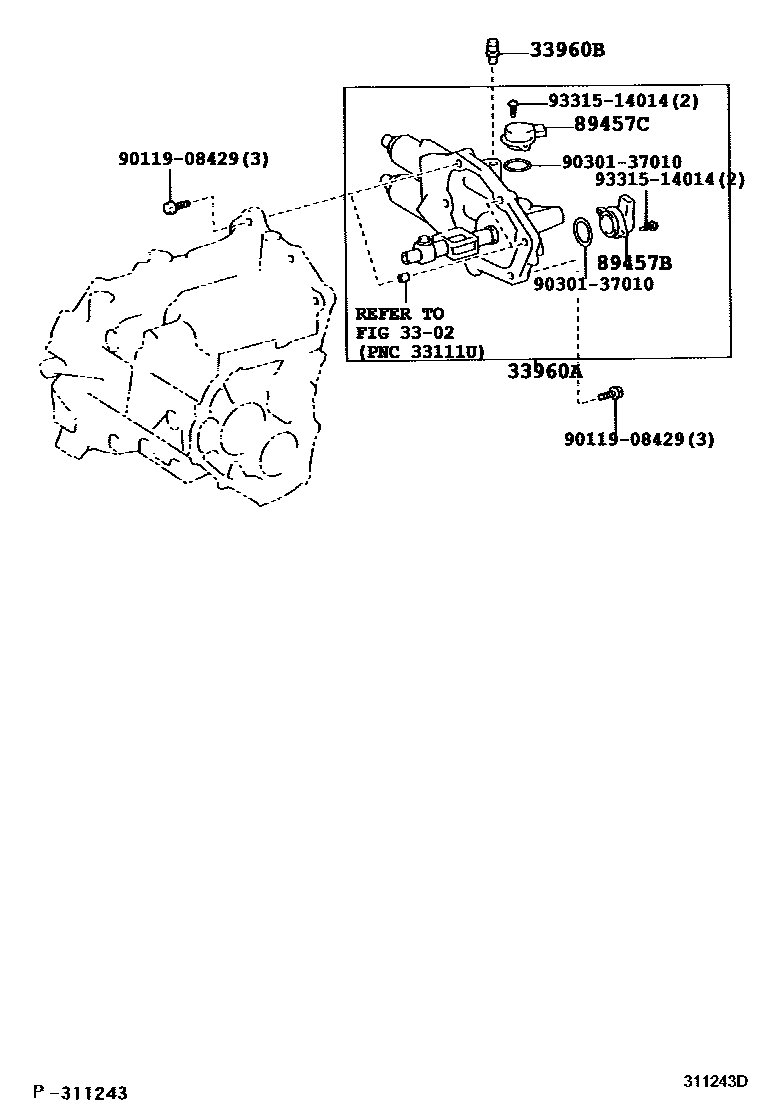

PUMP & ACTUATOR, SEQUENTIAL OR MULTI-MODE MANUAL TRANSAXLE

3302

33960AACTUATOR ASSY, SHIFT & SELECT

main33960-64010iZNR11..5FS200402-200506

sub33960-64011

main33960-64011iZNR11..5FS200506-200602

sub33960-64012

main33960-64012iZNR11..5FS200602-200902

sub33960-64020

33960BBREATHER PLUG, SHIFT & SELECT ACTUATOR

main90930-03133iZNR11..5FS200402-200705

89457BSTROKE SENSOR, SHIFT

main89457-52010iZNR11..5FS200402-200902

89457CSTROKE SENSOR, SELECT

main89457-52010iZNR11..5FS200402-200902

9011908429

main90119-08429

9030137010

main90301-37010

9331514014

main93315-14014

8 parts on this diagram · 1 diagram in section
