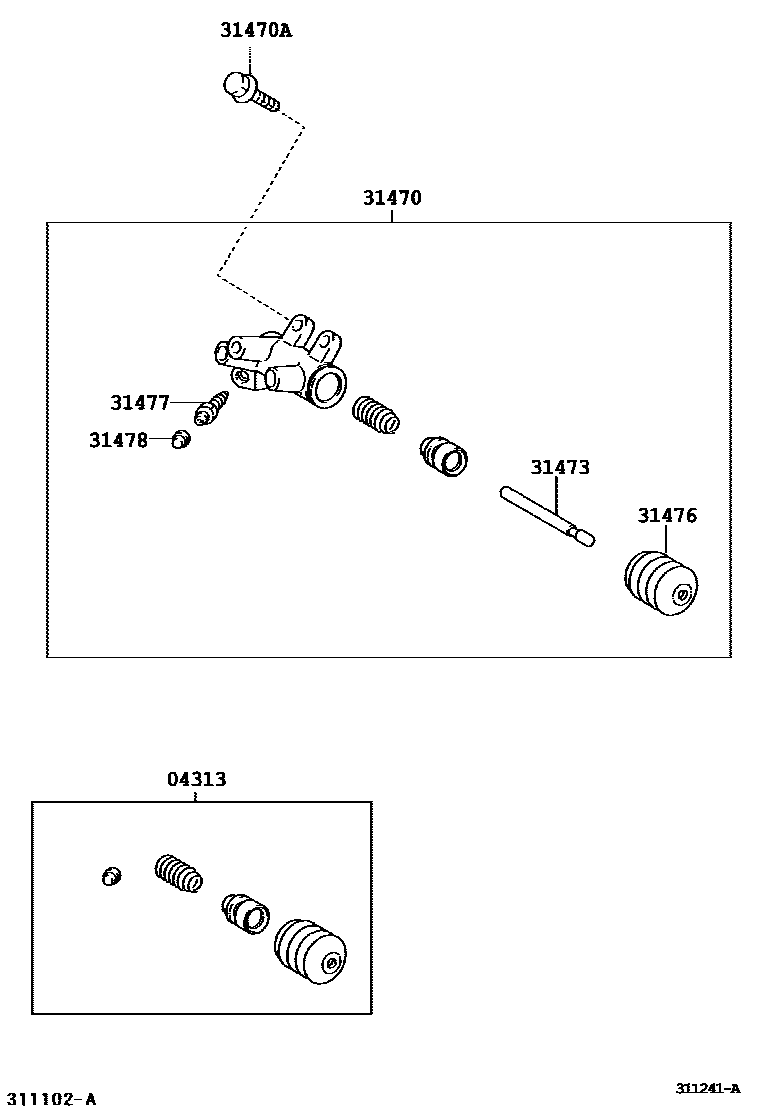

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-28020iZNR1#..5F200402-200705

main04313-52020iCUR10200402-200508

main04313-53010iAUR10200508-200705

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12130iZNR1#..5F200402-200902

main31470-12190iAUR10200705-200902

main31470-20240iAUR10200508-200705

sub31470-12190

main31470-32022iCUR10200402-200406

sub31470-32023

main31470-32023iCUR10200406-200508

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iCUR10200402-200508

*8-1.25PX25-20.1

main90119-W0028iZNR1#..5F200402-200902

*8-1.25PX22-17.1

main91611-60822iAUR10200508-200902

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iAUR10,ZNR1#..5F,6F200402-200705

main31473-22010iCUR10200402-200406

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAUR10,ZNR1#..5F,6F200402-200705

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iAUR10,CUR10,ZNR1#..5F,6F200402-200705

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAUR10,CUR10,ZNR1#..5F,6F200402-200705

7 parts on this diagram · 2 diagrams in section
