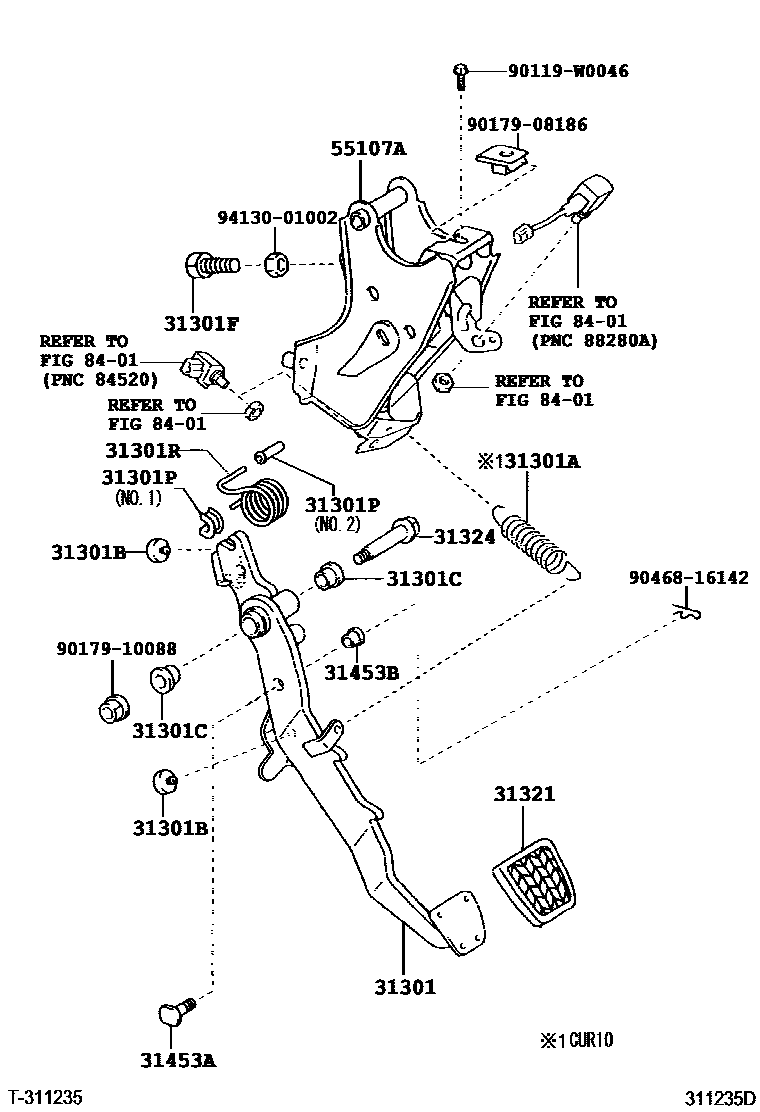

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-0F010iZNR1#..LHD..5F..SOL200705

CRUISE CONTROL-WITHOUT

main31301-0F010iZNR1#..LHD..5F..TERRA200402-200705

main31301-0F010iZNR1#..LHD..5F..SOL200508-200705

LUNA PACKAGE

main31301-0F020iCUR10..LHD200402-200508

main31301-0F030iZNR1#..RHD..5F200402-200705

main31301-0F040iCUR10..RHD200402-200508

main31301-0F050iZNR1#..LHD..5F..SOL200402-200705

main31301-0F060iAUR10..RHD200508-200705

main31301-0F070iAUR10..LHD200508-200705

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iZNR1#..LHD..5F200402-200705

main90507-14050iZNR1#..RHD..5F200402-200705

main90507-17004iCUR10..LHD200402-200508

main90507-19005iCUR10..RHD200402-200508

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iCUR10200402-200705

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iAUR10,ZNR1#..5F,6F200402-200705

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iAUR10,ZNR1#..5F,6F200402-200705

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90386-05017iAUR10200402-200705

NO.1

main90389-05019iAUR10200402-200705

NO.2

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03122iCUR10200402-200505

sub90949-03143

main90949-03138iAUR10200508-200705

main90949-03143iCUR10200505-200508

31321PAD, CLUTCH PEDAL

main31321-52010iCUR10200402-200705

31324SHAFT, CLUTCH PEDAL

main90109-10167iCUR10200402-200705

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08143iCUR10200402-200705

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iCUR10200402-200705

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0F010iZNR1#..LHD..5F..SOL200508-200705

LUNA PACKAGE

main55107-0F010iZNR1#..LHD..5F..SOL200705-200902

CRUISE CONTROL-WITHOUT

main55107-0F010iZNR1#..LHD..5F..TERRA200402-200705

main55107-0F020iZNR1#..LHD..5F..SOL200402-200902

main55107-0F030iAUR10,CUR10..LHD200402-200902

main55107-0F040iZNR1#..RHD..5F200402-200902

main55107-0F050iAUR10..RHD200402-200902

8401

90119W0046

main90119-W0046

9017908186

main90179-08186

9017910088

main90179-10088

9046816142

main90468-16142

9413001002

main94130-01002

18 parts on this diagram · 9 diagrams in section
