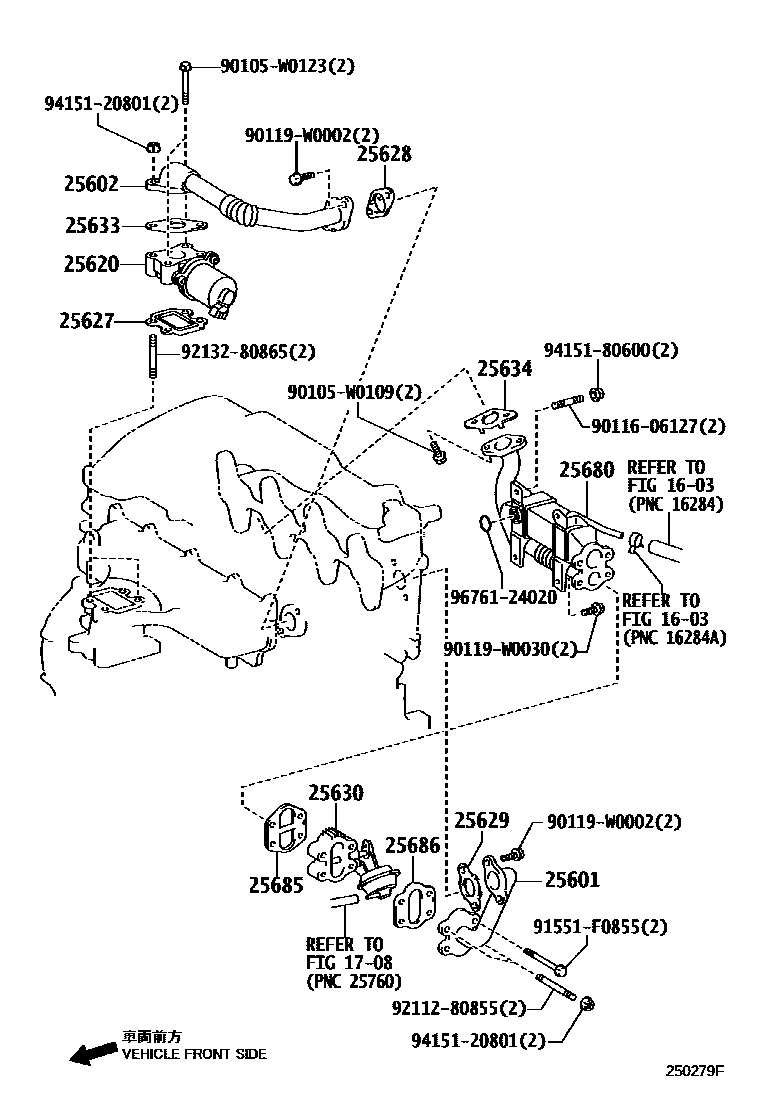

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0003 1 0004 1

1603

1708

25601PIPE SUB-ASSY, EGR, NO.1

main25601-27020i1CDFTV..CUR10200402-200508

main25611-26020i2ADFHV..AUR10200508-200705

25602PIPE SUB-ASSY, EGR, NO.2

main25612-0R010i2ADFTV..AUR10..DCR200508-200602

sub25612-26030

main25612-0R020i2ADFHV..AUR10200508-200602

sub25612-26030

main25612-26030i2AD#..AUR10200602-200705

25620VALVE ASSY, EGR

main25620-0R010i2AD#..AUR10200508-200702

sub25620-0R011

main25620-0R011i2AD#..AUR10200702-200903

sub25620-0R012

main25620-0R021i2ADFTV..AUR10..DCRE200705-200903

sub25620-0R022

main25620-27090i1CDFTV..CUR10200402-200508

25627GASKET, EGR VALVE

main25627-0R010i2AD#..AUR10200508-200705

25628GASKET, EGR INLET

main25628-0R010i2AD#..AUR10200508-200807

sub25628-26020

main25628-26020i2AD#..AUR10200807

main25628-27010i1CDFTV..CUR10200402-200508

25629GASKET, EGR VALVE ADAPTER

main25629-0R010i2AD#..AUR10200508-200705

25630VALVE ASSY, EGR, NO.2

main25630-26010i2AD#..AUR10..DCRE,DCRL200508-200812

sub25630-26020

main25630-26020i2AD#..AUR10..DCRE,DCRL200812

25633GASKET, EGR VALVE

main25633-0R010i2AD#..AUR10200508-200705

25634GASKET, EGR PIPE

main25634-0R010i2AD#..AUR10200508-200705

25680COOLER ASSY, EGR

main25680-0R010i2ADFTV..AUR10..DCR200508-200805

sub25680-0R011

sub16284-26040

main25680-0R011i2ADFTV..AUR10..DCR200805

sub25680-26041

main25680-0R020i2ADFHV..AUR10200508-200805

sub25680-0R021

sub16284-26040

main25680-0R021i2AD#..AUR10..DCRE,DCRL200805

sub25680-26021

25685GASKET, EGR COOLER, NO.1

main25685-0R010i2ADFHV..AUR10200508-200705

sub25685-0R011

main25685-27010i1CDFTV..CUR10200402-200508

25686GASKET, EGR COOLER, NO.2

main25686-0R010i2AD#..AUR10..DCRE,DCRL200508-200705

main25686-27010i1CDFTV..CUR10200402-200508

90105W0109

main90105-W0109

90105W0123

main90105-W0123

9011606127

main90116-06127

90119W0002

main90119-W0002

90119W0030

main90119-W0030

91551F0855

main91551-F0855

9211280855

main92112-80855

9213280865

main92132-80865

9415120801

main94151-20801

9415180600

main94151-80600

9676124020

main96761-24020

25 parts on this diagram · 3 diagrams in section
