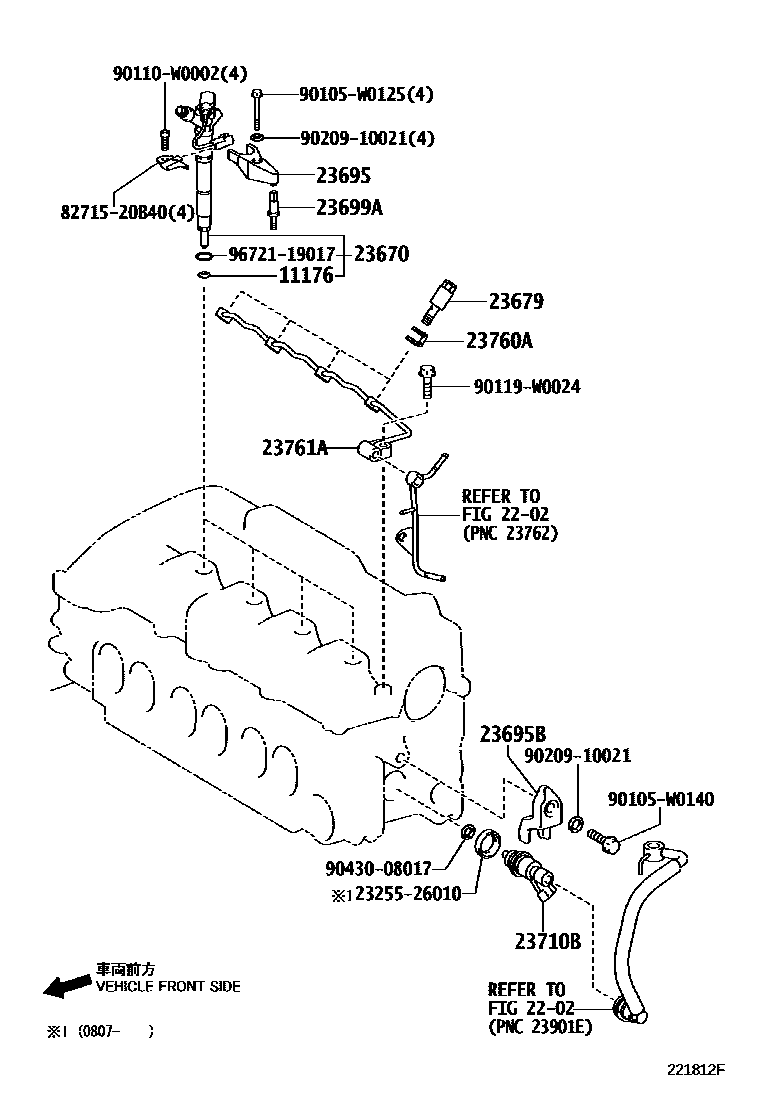

INJECTION NOZZLE

0001 1 0002 1 0003 1 0004 1

11176SEAT, INJECTION NOZZLE

main11176-26010×4i2AD#..AUR10200705-200811

sub11176-51010

main11176-26030×4i2AD#..AUR10200811

sub11176-51010

main11176-27010×4i1CDFTV..CUR10200402-200508

sub11176-27011

2202

23670INJECTOR ASSY

main23670-09030×4i1CDFTV..CUR10200402-200508

sub23670-09031

main23670-09140×4i2ADFTV..AUR10..DCR200705-200712

main23670-09190×4i2ADFTV..AUR10..DCRE200705-200712

main23670-09270×4i2ADFTV..AUR10..DCRE200712

main23670-09290×4i2ADFTV..AUR10..DCR200712

main23670-29055×4i2ADFHV..AUR10200705-200710

main23670-29105×4i2ADFHV..AUR10200710

23679SCREW, INJECTOR FOLLOW

main23679-0G010×4i1CDFTV..CUR10200402-200508

(L)

main23679-0R010×4i2ADFTV..AUR10200508-200705

main23679-26010×4i2ADFHV..AUR10200508-200705

sub23679-26020

main23679-30020×4i1CDFTV..CUR10200402-200508

(J)

sub23679-30021

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-0R010×4i2ADFTV..AUR10200508-200705

main23695-0R011×4i2ADFTV..AUR10200705-200707

main23695-0R012×4i2ADFTV..AUR10200707

main23695-0R020×4i2ADFHV..AUR10200508-200705

main23695-0R021×4i2ADFHV..AUR10200808

main23695-27020×4i1CDFTV..CUR10200402-200508

23695BCLAMP, NOZZLE HOLDER, NO.2

main23695-26011i2AD#..AUR10..DCRE,DCRL200705

23699ASEAT, NOZZLE HOLDER CLAMP

main23699-0R010×4i2ADFTV..AUR10200705

sub23699-26010

main23699-0R021×4i2ADFHV..AUR10200705

23710BINJECTOR ASSY, EXHAUST FUEL ADDITION

main23710-26010i2ADFHV..AUR10200508-200704

main23710-26011i2ADFHV..AUR10200704-200705

sub23710-26012

23760PIPE ASSY, NOZZLE LEAKAGE

main23761-27010i1CDFTV..CUR10200402-200508

23760AGASKET

main90904-30008×5i2ADFHV..AUR10200508-200705

23761APIPE, NOZZLE LEAKAGE, NO.1

main23761-0R011i2ADFTV..AUR10200705-200901

main23761-0R020i2ADFHV..AUR10200508-200510

main23761-0R030i2ADFHV..AUR10200510-200705

main23761-26010i2ADFTV..AUR10200901

2325526010VALVE, THERMOSTATIC VACUUM TRANSMITTING, NO.1

main23255-26010

8271520B40BRACKET,WIRING HARNESS CLAMP

main82715-20B40

90105W0125

main90105-W0125

90105W0140

main90105-W0140

90110W0002

main90110-W0002

90119W0024

main90119-W0024

9020910021

main90209-10021

9043008017

main90430-08017

9672119017

main96721-19017

20 parts on this diagram · 4 diagrams in section
