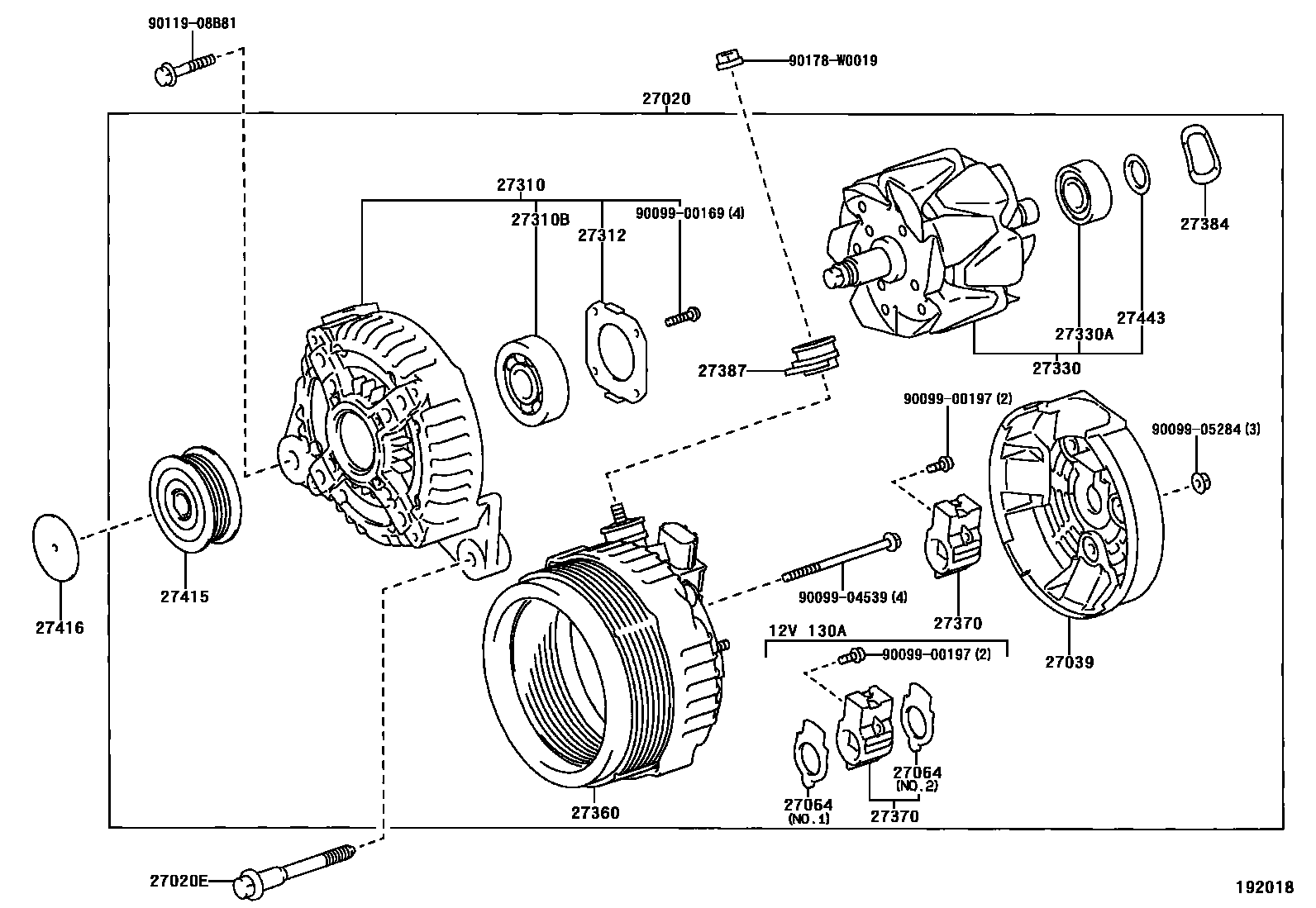

ALTERNATOR

0001 112V 100A,12V 130A 0002 112V 80A,12V 90A 0003 112V 100A,12V 130A 0004 112V 90A

27020ALTERNATOR ASSY

main27060-0D160i3ZZFE..ZNR10;1ZZFE..ZNR11..TERRA;1ZZFE..ZNR11..5F..SOL200402-200705

12V 80A

main27060-0D170i1ZZFE..ZNR11..5FS..SOL200402-200705

12V 90A

main27060-0D170i1ZZFE..ZNR11..5FS..SOL200402-200705

12V 90A,COLD SPEC

main27060-0D170i1ZZFE..ZNR11..5FS..SOL200402-200705

12V 90A,FRONT FOG LAMP-WITH

main27060-0D170i1ZZFE..ZNR11..5FS..SOL200402-200705

12V 90A,SUB-COLD SPEC

main27060-0D170i1ZZFE..ZNR11..5FS..SOL200402-200705

12V 90A,COLD SPEC&FRONT FOG LAMP-WITH

main27060-0D170i1ZZFE..ZNR11..5FS..SOL200402-200705

12V 90A,SUB-COLD SPEC&FRONT FOG LAMP-WITH

main27060-0D190i1ZZFE,3ZZFE..ZNR1#200705-200901

12V 90A

sub27060-0D191

main27060-0G011i2AD#..AUR10200508-200705

12V 100A

main27060-27090i1CDFTV..CUR10200402-200508

12V 100A

sub27060-27070

27020EBOLT(FOR ALTERNATOR)

main90105-10075i1ZZFE,3ZZFE..ZNR1#200705

NO.1

main90105-10075i1ZZFE,3ZZFE..ZNR1#200402-200705

main90901-05004i1CDFTV..CUR10200402-200508

main91511-80830i1ZZFE,3ZZFE..ZNR1#200705

NO.2

27039COVER, ALTERNATOR REAR END

main27039-27060i1CDFTV..CUR10200402-200706

main27039-27090i2AD#..AUR10200707

27064SEAL, ALTERNATOR PLATE

main27064-42010

main27064-20130

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-27050i1CDFTV..CUR10200402-200508

main27310-27090i2AD#..AUR10200508-200705

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10142i1CDFTV..CUR10200402-200508

sub90099-10223

main90099-10223i2AD#..AUR10200508-200705

27312PLATE, RETAINER

main27312-72100i1CDFTV..CUR10200402-200705

27330ROTOR ASSY, ALTERNATOR

main27330-0J020i1ZZFE,3ZZFE..ZNR1#200402-200705

main27330-30070i2AD#,1CDFTV..AUR10,CUR10200402-200705

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i1CDFTV..CUR10200402-200508

27360COIL ASSY, ALTERNATOR

main27360-27060i1CDFTV..CUR10200402-200508

main27360-27090i2AD#..AUR10200508-200705

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-27060i1CDFTV..CUR10200402-200508

main27370-58460i2AD#..AUR10200508-200705

main27370-75060i1ZZFE,3ZZFE..ZNR1#200402-200705

27384WASHER

main27384-50030i2AD#..AUR10200402-200705

27387INSULATOR, TERMINAL

main27387-20130i1CDFTV..CUR10200402-200705

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-26010i2AD#..AUR10200508-200705

COLD SPEC

main27415-26010i2AD#..AUR10200705-200902

COLD AREA SPEC

main27415-27011i1CDFTV..CUR10200402-200508

27416CAP, ALTERNATOR PULLEY

main27416-27010i1CDFTV..CUR10200402-200705

27443COVER, ALTERNATOR BEARING

main27443-63020i1CDFTV..CUR10200402-200508

9009900169

main90099-00169

9009900197

main90099-00197

9009904539

main90099-04539

9009905284

main90099-05284

9011908B81

main90119-08B81

90178W0019

main90178-W0019

22 parts on this diagram · 4 diagrams in section
