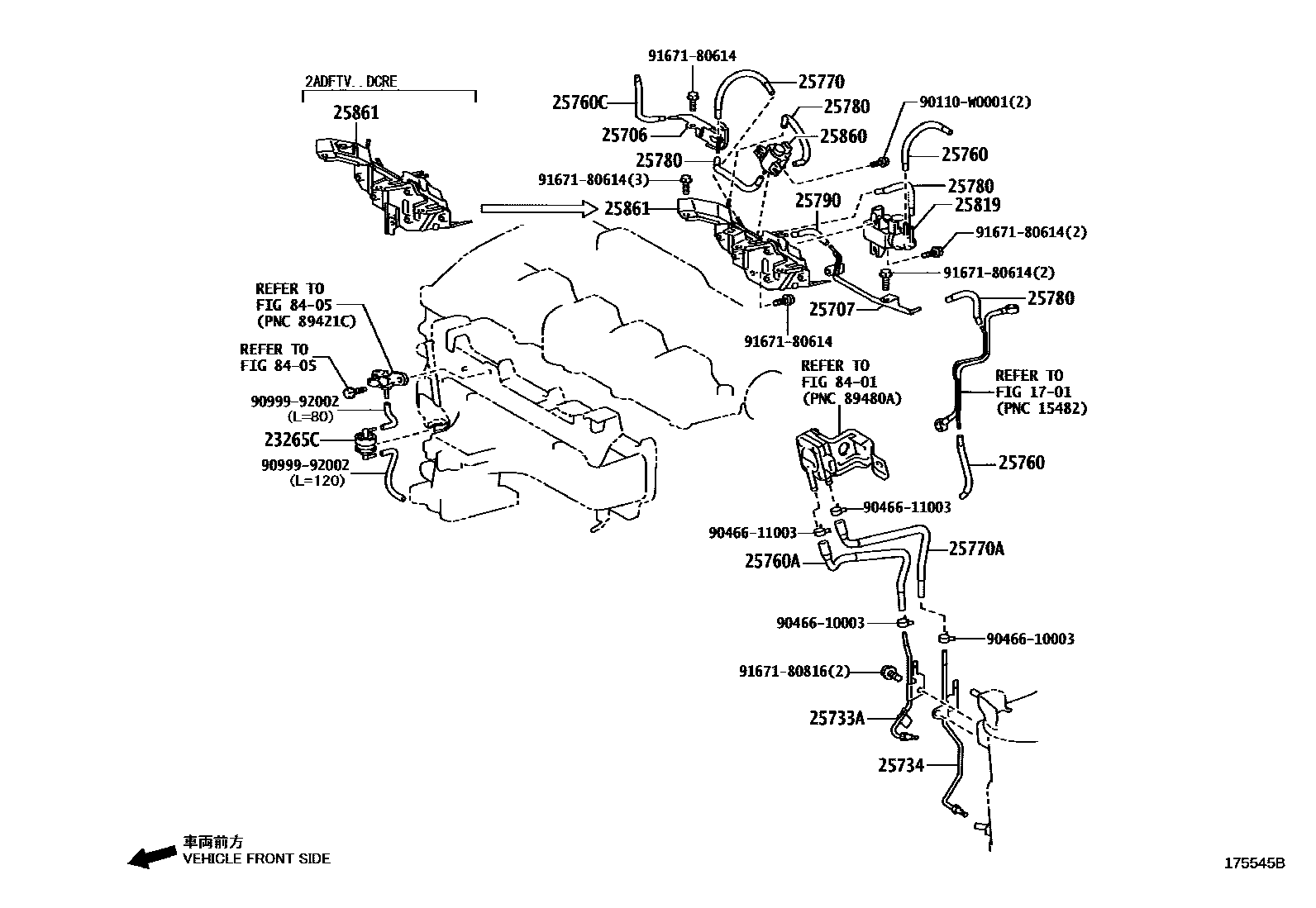

VACUUM PIPING
1701
23265FILTER, GAS, NO.1
23265CFILTER, GAS
25706PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25707PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25733APIPE, VACUUM, NO.1
25734PIPE, VACUUM, NO.2
25760HOSE ASSY, VACUUM TRANSMITTING
25760AHOSE ASSY, VACUUM TRANSMITTING
25760CHOSE ASSY, VACUUM TRANSMITTING, NO.3
25770HOSE ASSY, VACUUM TRANSMITTING, NO.2
25770AHOSE ASSY, VACUUM TRANSMITTING, NO.2
25780HOSE ASSY, VACUUM TRANSMITTING, NO.3
25861BRACKET, VACUUM SWITCHING VALVE
8401
8405
90110W0001
main90110-W0001
9046610003
9046611003
9099992002
9167180614
9167180816
25 parts on this diagram · 4 diagrams in section
