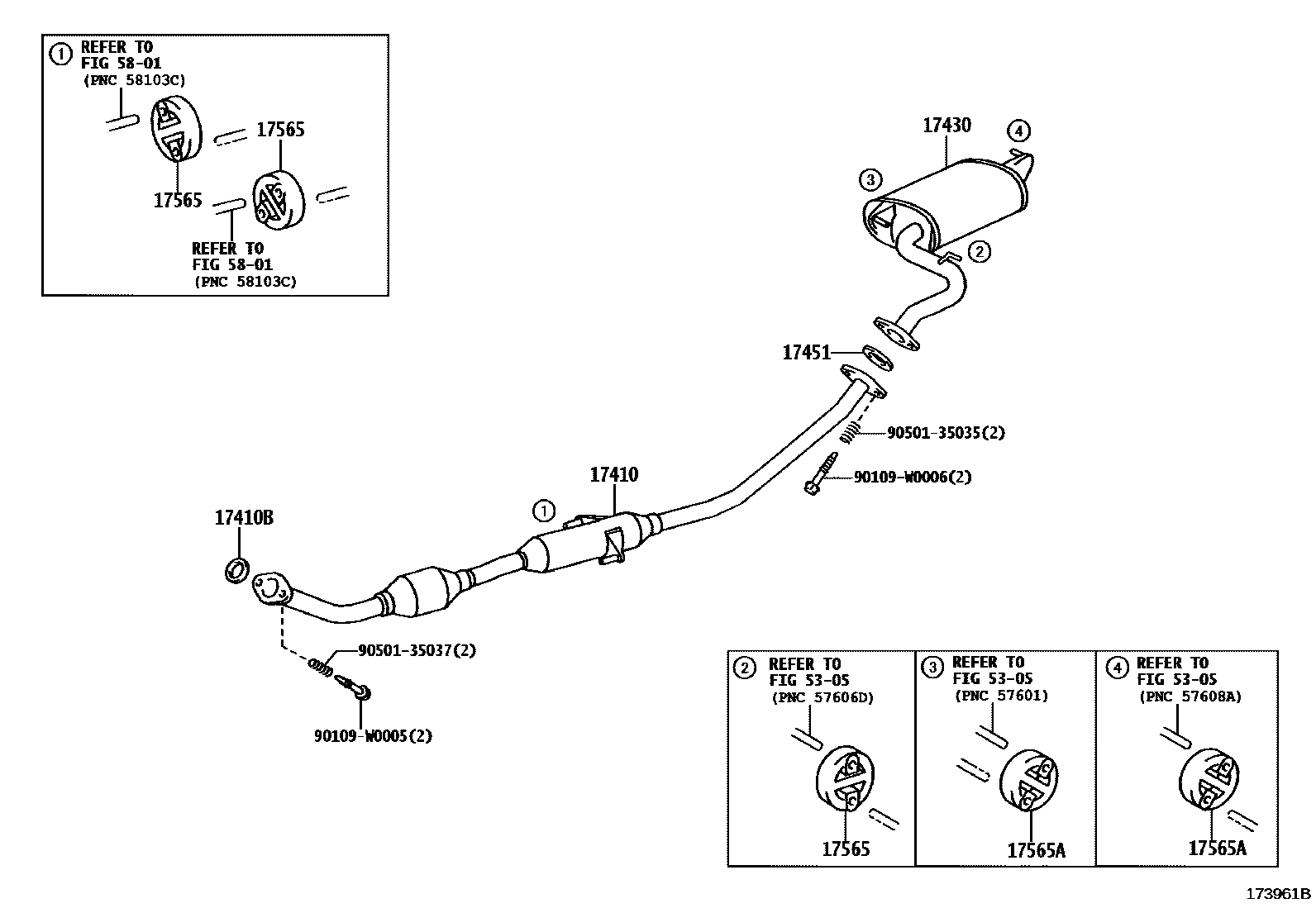

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-0D290i1ZZFE,3ZZFE..ZNR1#200402-200705

*114=TOYOTA/GC8GC9/Y

main17410-0G080i1CDFTV..CUR10200402-200404

*114=TOYOTA/AB1AB2/Y

sub17410-0G081

main17410-0G081i1CDFTV..CUR10200405-200508

*114=TOYOTA/AB1AB2/Y

main17410-0R030i2ADFTV..AUR10..DCR200508-200705

*114=TOYOTA/AB9AC1/Y

main17410-0R040i2ADFHV..AUR10200508-200705

*114=TOYOTA/AC2AC3/Y

main17410-0R110i2ADFTV..AUR10..DCRE200705

*114=TOYOTA/AC5AC6/Y

17410BGASKET, EXHAUST PIPE

main17451-0D090i1ZZFE,3ZZFE..ZNR1#200402-200705

main17451-0R010i2AD#..AUR10200508-200705

17430PIPE ASSY, EXHAUST, TAIL

main17430-0D320i1ZZFE,3ZZFE..ZNR1#200402-200406

sub17430-0D321

main17430-0D321i1ZZFE,3ZZFE..ZNR1#200407-200705

main17430-0G080i1CDFTV..CUR10200402-200508

main17430-0R020i2AD#..AUR10200508-200705

17451GASKET, EXHAUST PIPE

main17451-02030i1CDFTV..CUR10200402-200705

main17451-0R030i2AD#..AUR10200508-200811

sub17451-0R031

main17451-0R031i2AD#..AUR10200812

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0D060i1CDFTV..CUR10200402-200705

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0D030i1CDFTV..CUR10200402-200705

5305

5801

90109W0005

main90109-W0005

90109W0006

main90109-W0006

9050135035

main90501-35035

9050135037

main90501-35037

12 parts on this diagram · 1 diagram in section
