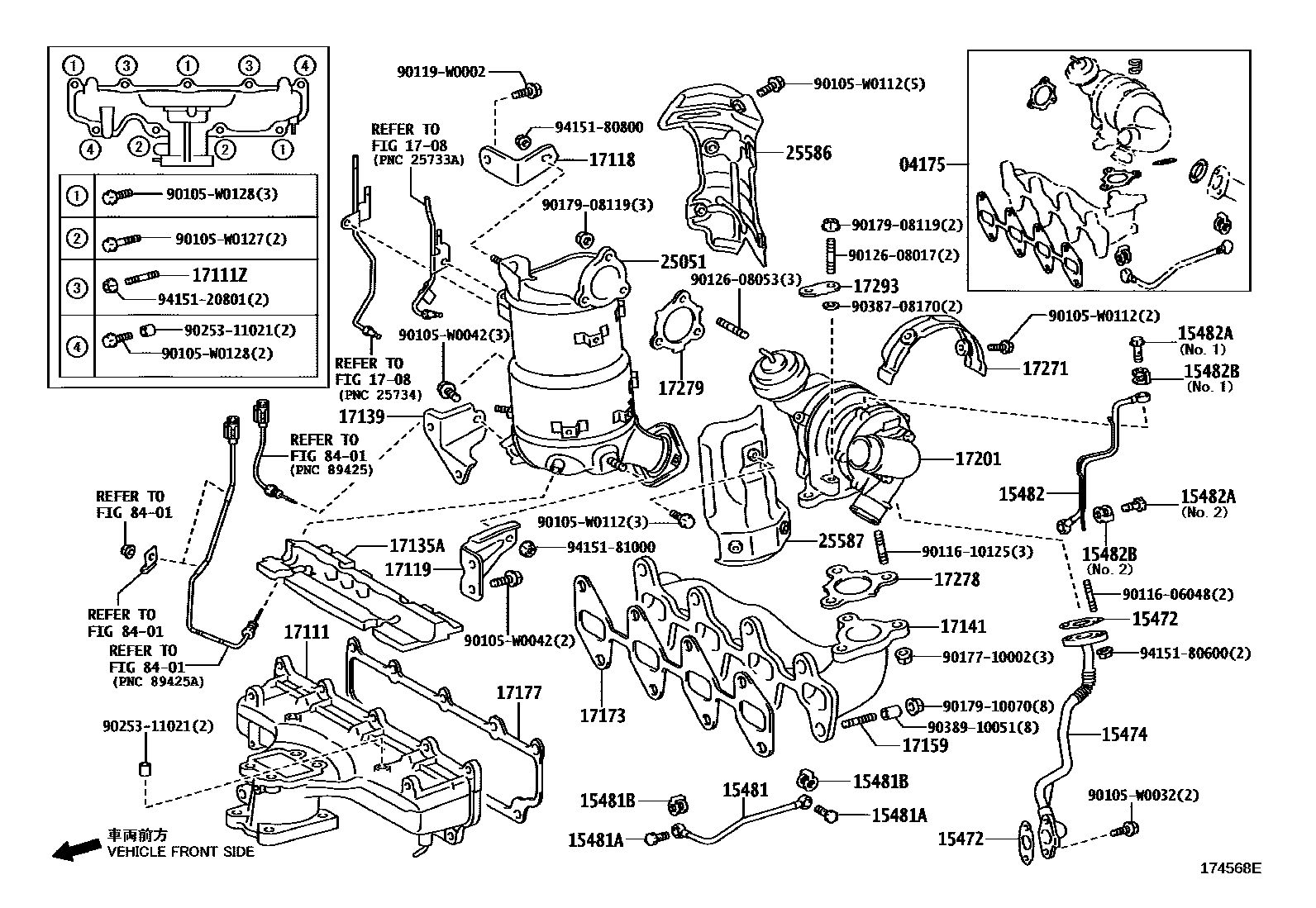

MANIFOLD
15472GASKET, TURBO OIL OUTLET, NO.1
15474PIPE, TURBO OIL OUTLET
15481PIPE, TURBO OIL, NO.1
15481ABOLT, UNION, NO.1
15481BGASKET(FOR UNION BOLT NO.1)
15482ABOLT, UNION, NO.2
NO.1
NO.2
15482BGASKET(FOR UNION BOLT NO.2)
NO.2
NO.1
1708
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118STAY, MANIFOLD
17135AINSULATOR, INTAKE MANIFOLD, NO.1
17139STAY, MANIFOLD, NO.2
17141MANIFOLD, EXHAUST
(L)
(J)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.2
NO.1
NO.1
NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
(L)
(J)
(L)
(J)
17278GASKET, TURBO TO EXHAUST MANIFOLD
17279GASKET, TURBINE OUTLET ELBOW
17293STAY, TURBOCHARGER
(L)
(J)
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
*114=TOYOTA/0R010/Y
*114=TOYOTA/0R020/Y,(L)
sub25733-26011
*114=TOYOTA/26031/Y
*114=TOYOTA/26040/Y,(J)
sub25733-26011
*114=TOYOTA/26041/Y
*114=TOYOTA/2706/Y
8401
90105W0032
90105W0042
main90105-W0042
90105W0112
main90105-W0112
90105W0127
main90105-W0127
90105W0128
main90105-W0128
9011606048
9011610125
90119W0002
main90119-W0002
9012608017
9012608053
9017710002
9017908119
9017910070
9025311021
9038708170
9038910051
9415120801
9415180600
9415180800
9415181000
49 parts on this diagram · 9 diagrams in section
