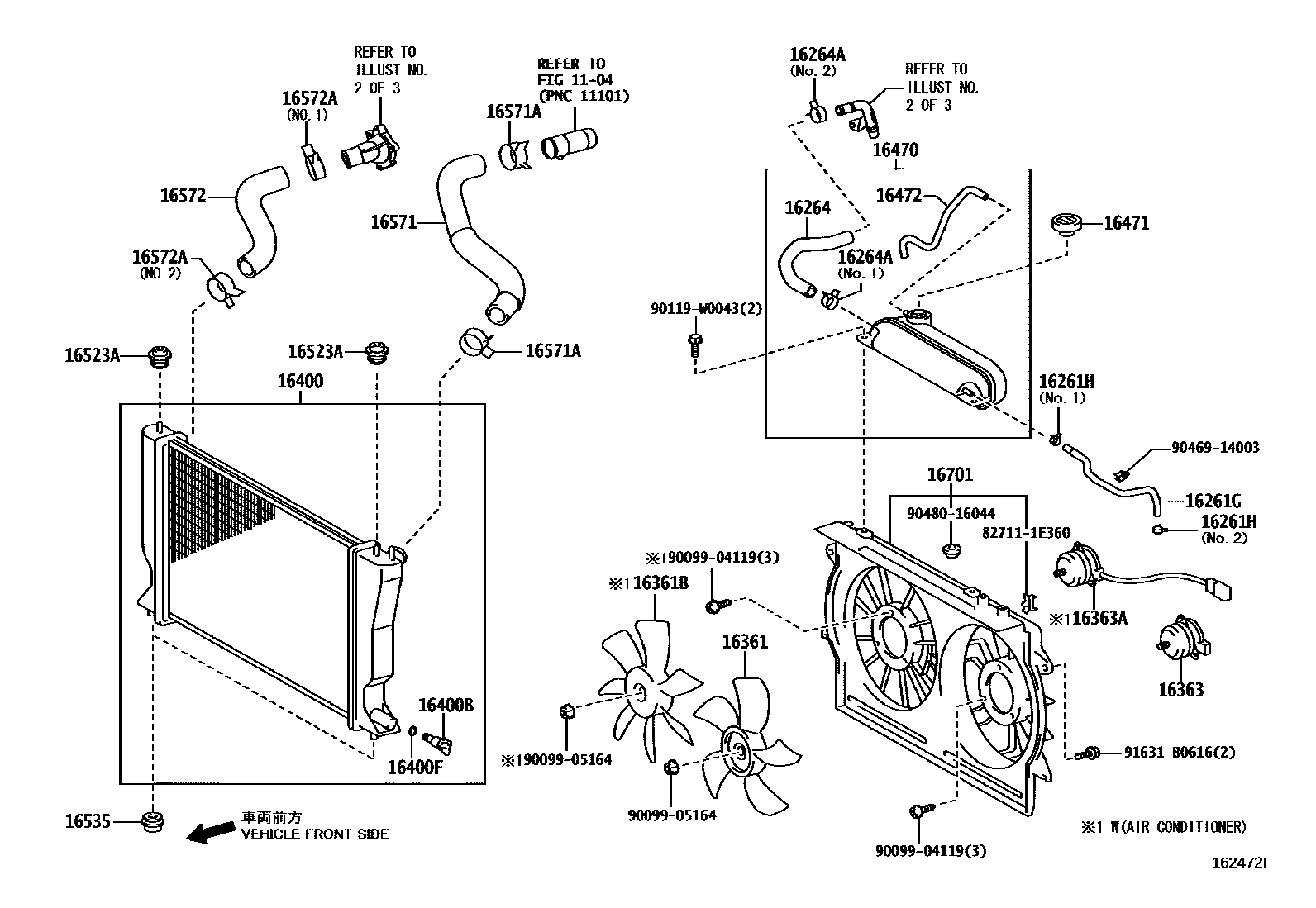

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

1104

16261HOSE, WATER BY-PASS

main16261-0D122i1ZZFE,3ZZFE..ZNR1#200402-200705

(L)

main16261-0R020i2AD#..AUR10200508-200802

main16261-0R081i2AD#..AUR10¥480200802

main16261-22142i1ZZFE,3ZZFE..ZNR1#¥580200402-200705

(J)

16261GHOSE, WATER BY-PASS, NO.1

main16261-0R031i2AD#..AUR10..DCR,DCRL200508-200509

sub16261-0R032

main16261-0R032i2AD#..AUR10200510-200803

sub16261-0R040

main16261-0R040i2AD#..AUR10200804

main16261-27080i1CDFTV..CUR10¥880200402-200508

16261HCLIP(FOR WATER BY-PASS HOSE NO.1)

main90466-13003i2AD#..AUR10¥120200508-200705

NO.1

main96137-41501i2AD#..AUR10¥120200508-200705

NO.2

16264HOSE, WATER BY-PASS, NO.2

main16264-0D121i1ZZFE,3ZZFE..ZNR1#200402-200503

(L)

main16264-0D122i1ZZFE,3ZZFE..ZNR1#200503-200705

(L)

main16264-0G010i1CDFTV..CUR10200402-200508

main16264-0R010i2AD#..AUR10¥870200508-200705

main16264-22121i1ZZFE,3ZZFE..ZNR1#¥1,290200402-200404

sub16264-22122¥1,290

main16264-22122i1ZZFE,3ZZFE..ZNR1#¥1,290200404-200503

(J)

main16264-22123i1ZZFE,3ZZFE..ZNR1#¥1,280200503-200705

(J)

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90466-W0002i1ZZFE,3ZZFE..ZNR1#¥220200402-200705

main90466-W0010i2AD#..AUR10¥320200402-200705

NO.1

main90467-21010i2AD#..AUR10¥380200402-200705

NO.2

16361FAN

main16361-0D080i1ZZFE,3ZZFE..ZNR1#200402-200705

sub16361-21060¥5,200

main16361-0G010i1CDFTV..CUR10¥4,480200402-200705

16361BFAN, NO.2

main16361-0G020i1CDFTV..CUR10..TERRA¥6,300200402-200508

AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION)

main16361-0G020i1CDFTV..CUR10..SOL¥6,300200402-200705

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main16361-0G020i2AD#..AUR10¥6,300200705

AIR CONDITIONER-MANUAL(MAKER OPTION)

16363MOTOR, COOLING FAN

main16363-0G050i2AD#..AUR10200402-200705

sub16363-0G051¥23,400

main16363-0H030i1ZZFE,3ZZFE..ZNR1#¥23,700200402-200705

16363AMOTOR, COOLING FAN, NO.2

main16363-0G060i1CDFTV..CUR10..TERRA200402-200705

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main16363-0G060i1CDFTV..CUR10..TERRA200402-200508

AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION)

main16363-0G060i2AD#..AUR10200705

AIR CONDITIONER-MANUAL(MAKER OPTION)

16400RADIATOR ASSY

main16400-0D120i1ZZFE..ZNR11200402-200705

main16400-0D210i3ZZFE..ZNR10200402-200705

main16400-0G030i1CDFTV..CUR10200402-200508

sub16400-0G031

main16400-0R010i2AD#..AUR10200508-200604

main16400-0R011i2AD#..AUR10200604-200705

16400BPLUG, RADIATOR DRAIN COCK

main16417-0R010i2AD#..AUR10200508-200705

main23322-54010i1ZZFE..ZNR11¥380200402-200705

main90080-34010i3ZZFE..ZNR10200402-200705

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1ZZFE,3ZZFE..ZNR1#¥210200402-200705

16470TANK ASSY, RADIATOR RESERVE

main16480-0G020i1CDFTV..CUR10200402-200508

main16480-0R010i2AD#..AUR10200508-200604

main16480-0R011i2AD#..AUR10¥3,610200604-200705

16471CAP SUB-ASSY, RESERVE TANK

main16401-53010i2AD#..AUR10¥1,400200402-200709

sub16475-51010¥1,100

main16405-0D040i1ZZFE,3ZZFE..ZNR1#200402-200705

main16475-28120i2AD#..AUR10¥1,400200710-200806

sub16475-51010¥1,100

main16475-51010i2AD#..AUR10¥1,100200807

sub16475-28140¥1,200

16472HOSE, BREATHER

main16472-0G020i1CDFTV..CUR10200402-200508

main16472-0R010i2AD#..AUR10¥700200508-200705

16523ACUSHION, RADIATOR SUPPORT

main16523-0D020i1CDFTV..CUR10¥470200402-200705

16535SUPPORT, RADIATOR, LOWER

main16535-0D031i1ZZFE,3ZZFE..ZNR1#¥1,590200402-200705

main16535-0R010i2AD#..AUR10200508-200705

main16535-27010i1CDFTV..CUR10¥1,590200402-200508

16571HOSE, RADIATOR, INLET

main16571-0G011i1CDFTV..CUR10200402-200508

main16571-0R010i2AD#..AUR10200508-200803

sub16571-0R020

main16571-0R020i2AD#..AUR10200804

main16571-22160i1ZZFE,3ZZFE..ZNR1#¥2,160200402-200705

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-41005i2AD#..AUR10¥310200508-200705

main90466-41008i1CDFTV..CUR10¥320200402-200508

main90466-W0011i1ZZFE,3ZZFE..ZNR1#¥240200402-200705

NO.2

main90466-W0012i1ZZFE,3ZZFE..ZNR1#200402-200705

NO.1

16572HOSE, RADIATOR, OUTLET

main16572-0D110i1ZZFE,3ZZFE..ZNR1#200402-200804

sub16572-0D270

main16572-0D270i1ZZFE,3ZZFE..ZNR1#200804

main16572-0G010i1CDFTV..CUR10200402-200508

main16572-0R010i2AD#..AUR10¥1,840200508-200803

sub16572-0R020

main16572-0R020i2AD#..AUR10200804

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-41005i2AD#..AUR10¥310200508-200705

NO.2

main90466-41007i2AD#..AUR10¥300200508-200705

NO.1

main90466-41008i1CDFTV..CUR10¥320200402-200508

main90466-W0013i1ZZFE,3ZZFE..ZNR1#200402-200705

16701SHROUD SUB-ASSY, FAN

main16711-0G030i1CDFTV..CUR10..SOL200402-200508

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main16711-0G060i1CDFTV..CUR10..TERRA200402-200508

main16711-0R010i2AD#..AUR10..DCR,DCRL200508-200603

sub16711-0R011

main16711-0R050i2AD#..AUR10200604-200705

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360¥60

9009904119

main90099-04119

9009905164

main90099-05164¥0

90119W0043

main90119-W0043¥110

9046914003

main90469-14003¥110

9048016044

main90480-16044¥0

91631B0616

main91631-B0616¥90

30 parts on this diagram · 11 diagrams in section
