WATER PUMP

0001 1 0002 1 0003 1

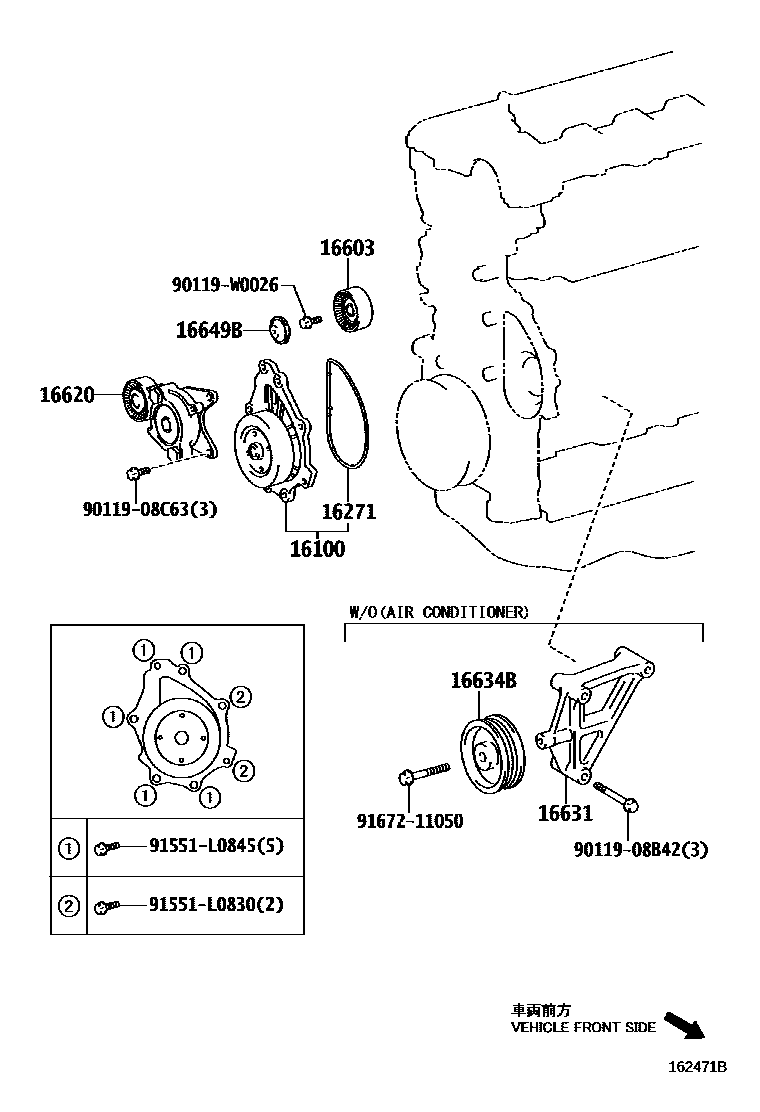

16100PUMP ASSY, ENGINE WATER

main16100-09310i1ZZFE,3ZZFE..ZNR1#200402-200705

sub16100-29415

main16100-09310i1ZZFE,3ZZFE..ZNR1#200705-200902

(L)

sub16100-29415

main16100-09340i2AD#..AUR10200508-200705

sub16100-09341

main16100-29185i1CDFTV..CUR10200402-200508

main16100-29415i1ZZFE,3ZZFE..ZNR1#200705

(J)

16271GASKET, WATER PUMP

main16271-26010i2AD#..AUR10200508-200705

main16271-27010i1CDFTV..CUR10200402-200508

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-0R010i2AD#..AUR10200508-200705

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0R010i2AD#..AUR10200508-200705

main16620-0W093i1ZZFE,3ZZFE..ZNR1#200610-200705

main16620-22012i1ZZFE,3ZZFE..ZNR1#200402-200610

sub16620-22013

16631BRACKET, IDLER PULLEY

main16631-31011i2ADFTV..AUR10..TERRA200508-200705

sub16631-31012

16634BPULLEY ASSY, IDLER

main16634-26010i2ADFTV..AUR10..TERRA200508-200705

16649BPLATE, IDLER PULLEY COVER

main16649-0R010i2AD#..AUR10200508-200705

9011908B42

main90119-08B42

9011908C63

main90119-08C63

90119W0026

main90119-W0026

91551L0830

main91551-L0830

91551L0845

main91551-L0845

9167211050

main91672-11050

13 parts on this diagram · 3 diagrams in section
