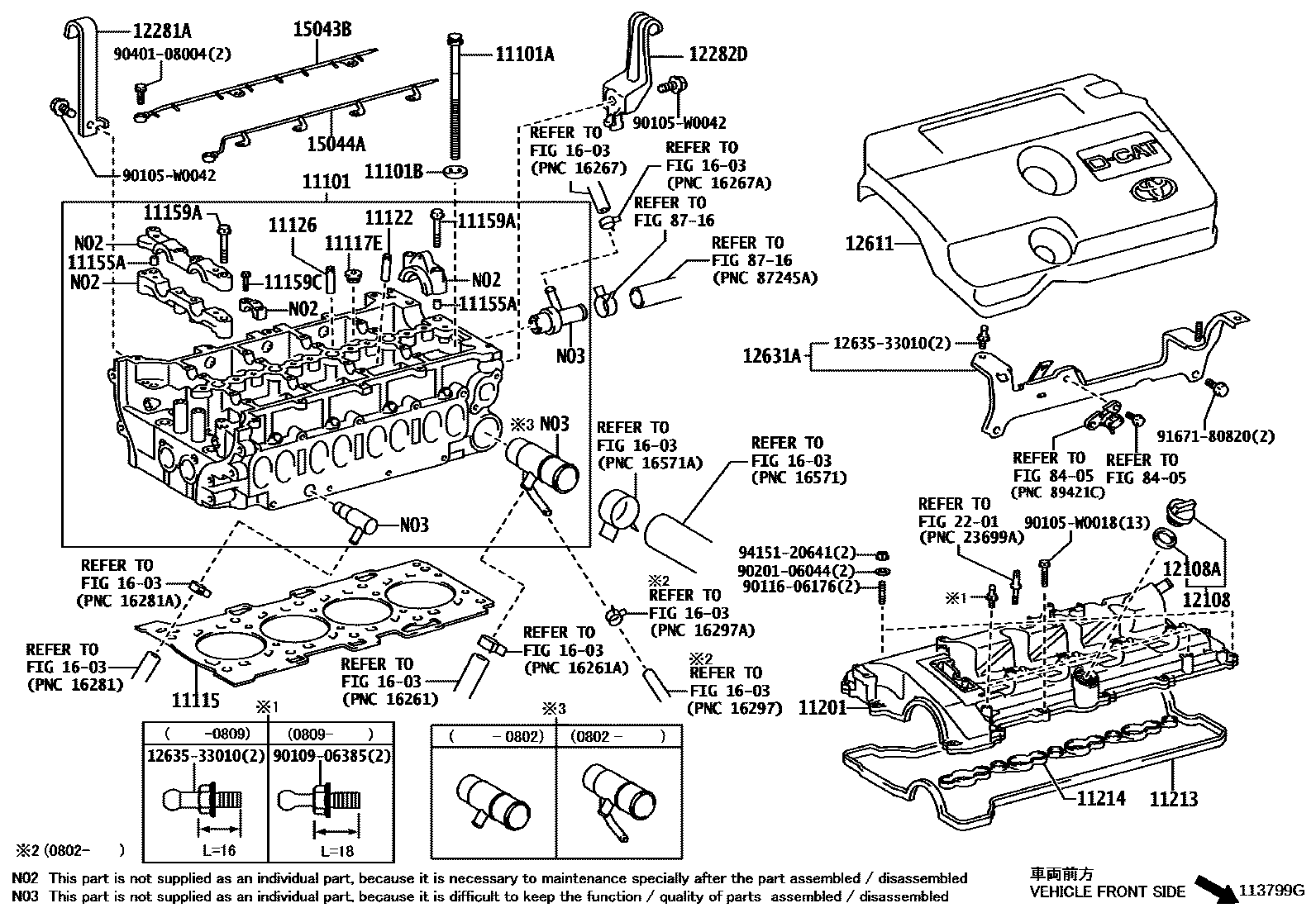

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
(L)
(L)
(L)
(L)
(L)
(L)
(J)
11101ABOLT(FOR CYLINDER HEAD SET)
*11-1.25PX160-60
*11-1.25PX104-63
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11115GASKET, CYLINDER HEAD
MARKA
MARKB
MARKC
MARKD
MARKE
MARK A
MARK B
MARK C
MARK D
MARK E
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11122BUSH, INTAKE VALVE GUIDE
STD
main11122-20020i1ZZFE..ZNR11..07S;3ZZFE..ZNR10..RHD;3ZZFE..ZNR10..LHD..07S;3ZZFE..ZNR10..LHD..05S..TERRA¥530200402-200705
STD
sub11122-22040
STD
O/S 0.05
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
main11122-20020i1ZZFE..ZNR11..07S;3ZZFE..ZNR10..RHD;3ZZFE..ZNR10..LHD..07S;3ZZFE..ZNR10..LHD..05S..TERRA¥530200402-200705
STD
sub11122-22040
STD
O/S 0.05
O/S 0.05
O/S 0.05
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(L)
NO.2
NO.1
NO.1
NO.2
NO.3
(J)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(L)
*6-1.0PX32-18
*6-1.0PX30-18
(J)
11213GASKET, CYLINDER HEAD COVER
(L)
(J)
(J)
11214GASKET, CYLINDER HEAD COVER, NO.2
12108CAP SUB-ASSY, OIL FILLER
(J)
12108AGASKET(FOR OIL FILLER CAP)
(J)
12281AHANGER, ENGINE, NO.1
NO.1
NO.2
12282DHANGER, ENGINE, NO.2
NO.1
NO.2
12611COVER, ENGINE, NO.1
12631ABRACKET, ENGINE COVER
15043BPIPE SUB-ASSY, CAMSHAFT OIL DELIVERY, RH
15044APIPE SUB-ASSY, CAMSHAFT OIL DELIVERY, LH
1603
2201
8405
8716
1263533010JOINT, ENGINE COVER
90105W0018
main90105-W0018
90105W0042
main90105-W0042
9010906385
9011606176
9020106044
9040108004
9167180820
9415120641
