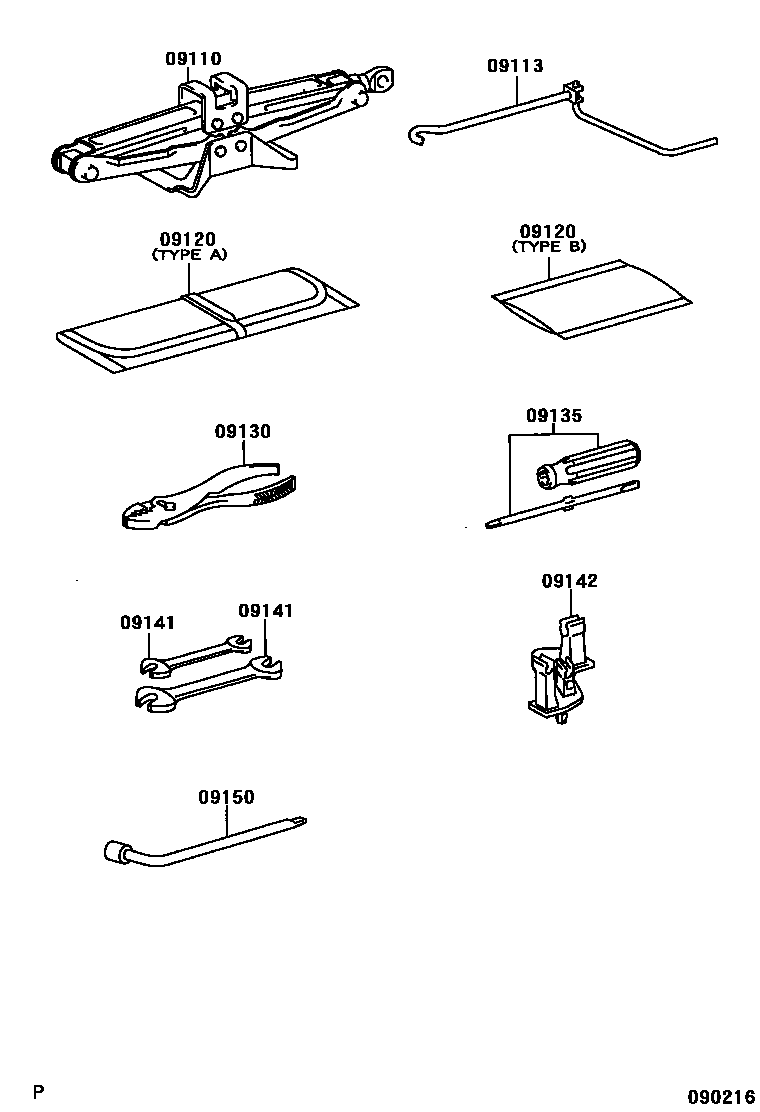

STANDARD TOOL

09110JACK ASSY

main09111-0F020iAUR10,CUR10,ZNR1#200502-200705

sub09111-05050

main09111-50051iCUR10,ZNR1#200402-200502

sub09111-76011

09113HANDLE, JACK

main09113-0F010iCUR10200402-200508

09120BAG, TOOL

main09120-02050iCUR10200402-200508

TYPE A:REFER ILLUST.

sub09120-10040

main09120-0F010iZNR11..LHD..TERRA;AUR10,ZNR10..LHD..05S..TERRA200402-200705

W/O REAR SEAT,TYPE B:REFER ILLUST.

09130PLIERS

main90080-99009iAUR10,ZNR1#200705

TOOL(DEALERSHIP OPTION)-WITH

09135DRIVER, SCREW

main90080-99008iAUR10,ZNR1#200402-200705

09141SPANNER

main90080-99010iAUR10,ZNR1#200705

8 X 10,TOOL(DEALERSHIP OPTION)-WITH

main90080-99011iAUR10,ZNR1#200402-200705

12 X 14

09142CLAMP, JACK HANDLE

main09142-64010iCUR10200402-200508

09150WRENCH, HUB NUT BOX

main09150-02050iCUR10200402-200508

sub09150-02060

8 parts on this diagram · 1 diagram in section
