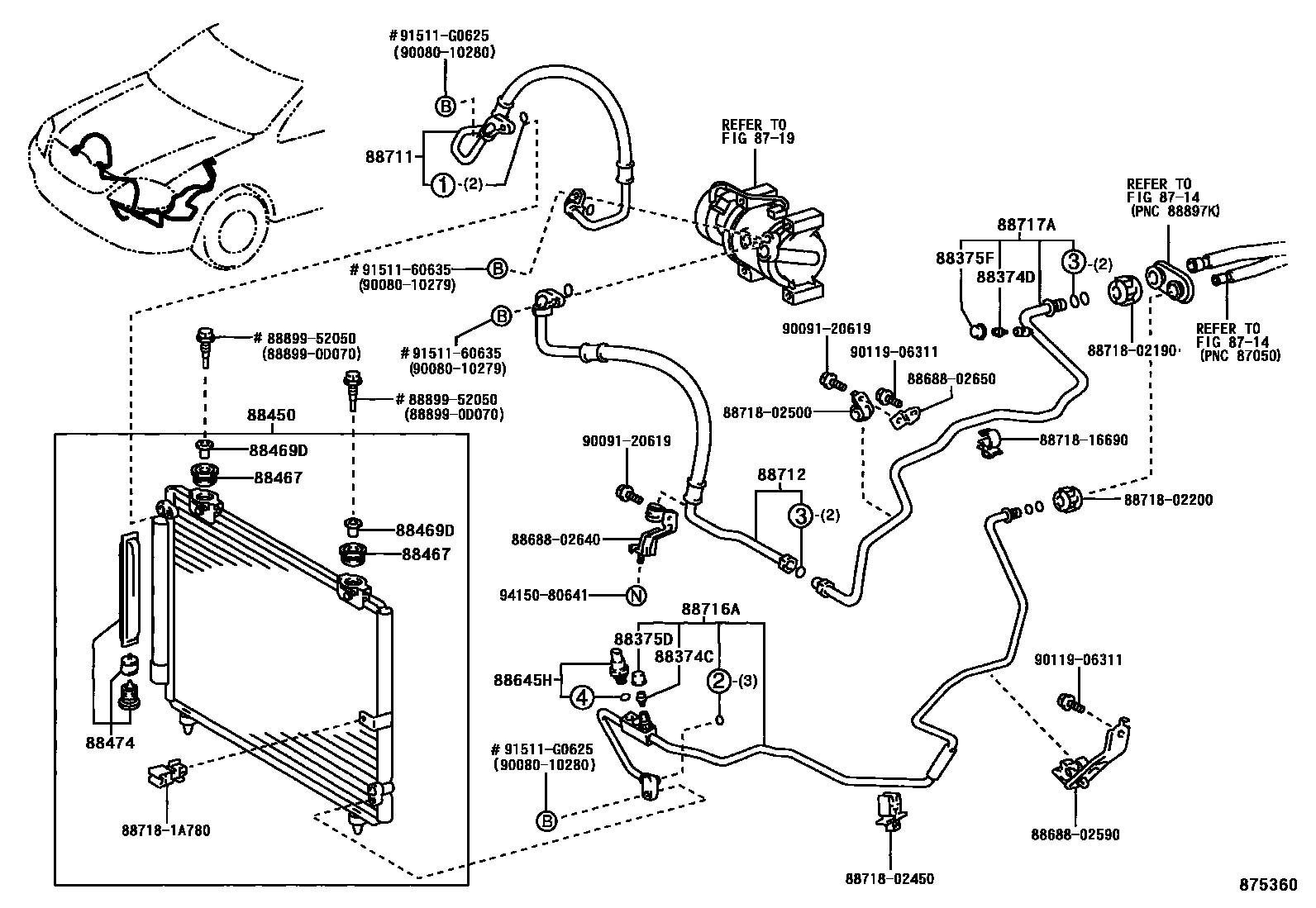

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1MAKER OPTION 0002 1DEALER OPTION 0003 1MAKER OPTION 0004 1DEALER OPTION 0005 1MAKER OPTION 0006 1DEALER OPTION 0007 1MAKER OPTION 0008 1MAKER OPTION 0009 1MAKER OPTION 0010 1DEALER OPTION 0011 1DEALER OPTION 0012 1DEALER OPTION 0013 1MAKER OPTION 0014 1DEALER OPTION 0015 1O-RING

8714

8719

88374CVALVE, SERVICE, NO.2

main88374-30010iCDE120..UKP;ZZE12#..UKP..LHD200301-200702

88374DVALVE, SERVICE NO.3

main88374-30010iCDE120..UKP..RHD200201-200406

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iCDE120,ZZE12#..UKP200201-200702

88375FCAP, SERVICE VALVE, NO.3

main88375-30290iCDE120..UKP..RHD200301-200406

88450CONDENSER ASSY, W/RECEIVER

main88450-02140iZZE12#..UKP..RHD..TERRA200201-200406

main88450-02150iZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA200201-200406

main88450-02240iCDE120,NDE120,ZZE12#..UKP..TERRA200406

DEALER OPTION

main88450-02250iCDE120,NDE120,ZZE12#..UKP200406

MAKER OPTION

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12180iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

88474DRYER, COOLER

main88474-17010iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

main88474-47010iCDE120,NDE120,ZZE12#..UKP200406

88645HSWITCH, PRESSURE NO.1

main88645-60030iCDE120,ZZE12#..UKP..RHD200201-200406

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-02090iZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA200301-200406

DEALER OPTION

main88703-02090iZZE12#..UKP200201-200301

main88703-02100iCDE120..UKP..DCR200201-200301

main88703-02100iCDE120..UKP200301-200406

DEALER OPTION

main88703-02170iZZE12#..UKP200301-200406

MAKER OPTION

main88703-02180iCDE120..UKP200301-200406

MAKER OPTION

main88703-02190iNDE120..UKP..TERRA200408

DEALER OPTION

main88703-02240iZZE12#..UKP..TERRA200406

DEALER OPTION

main88703-02250iCDE120..UKP..TERRA200406

DEALER OPTION

main88703-02260iZZE12#..UKP200406

MAKER OPTION

main88703-02270iCDE120..UKP200406

MAKER OPTION

main88703-02280iNDE120..UKP200408

MAKER OPTION

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-02360iCDE120..UKP..RHD200406

DEALER OPTION

main88704-02390iZZE12#..UKP..RHD200406

DEALER OPTION

main88704-02400iNDE120..UKP..RHD200408

DEALER OPTION

main88704-02420iNDE120..UKP..LHD..TERRA200408

DEALER OPTION

main88704-02470iZZE12#..UKP..RHD200406

MAKER OPTION

main88704-02480iCDE120..UKP..RHD200406

MAKER OPTION

main88704-02490iNDE120..UKP..RHD200408

MAKER OPTION

main88704-02500iZZE12#..UKP..LHD200406

MAKER OPTION

main88704-02510iCDE120..UKP..LHD200406

MAKER OPTION

main88704-02520iNDE120..UKP..LHD200408

MAKER OPTION

main88704-02531iZZE12#..UKP..LHD..TERRA200406

DEALER OPTION

main88704-02561iCDE120..UKP..LHD..TERRA200406

DEALER OPTION

main88712-02180iZZE12#..UKP..RHD..TERRA200201-200406

main88712-02190iCDE120..UKP..RHD200201-200406

main88712-02200iZZE121..UKP..WG..4FC..TERRA200201-200406

main88712-02210iCDE120..UKP..LHD200201-200406

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-02480iCDE120,ZZE12#..UKP..LHD200301-200406

main88710-02730iCDE120,NDE120,ZZE12#..UKP..RHD200406

main88716-02280iCDE120,ZZE12#..UKP..RHD200201-200301

main88716-02300iCDE120,ZZE12#..UKP..LHD200201-200301

main88716-02480iCDE120,ZZE12#..UKP..RHD200301-200406

main88716-02710iCDE120,NDE120,ZZE12#..UKP..LHD..TERRA200406

88717PIPE, COOLER REFRIGERANT SUCTION, NO.1

main88707-05040iCDE120..UKP..RHD200406

main88717-02140iCDE120..UKP..RHD200201-200406

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88710-02740iNDE120..UKP..RHD200408

main88717-02130iCDE120..UKP..RHD200201-200301

MAKER OPTION

main88717-02170iCDE120..UKP..RHD200301-200406

main88717-05230iCDE120..UKP..RHD200406

8868802590BRACKET, COOLER DIAPHRAGM

main88688-02590

8868802640BRACKET, COOLER DIAPHRAGM

main88688-02640

8868802650BRACKET, COOLER DIAPHRAGM

main88688-02650

8871802190PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02190

8871802200PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02200

8871802450PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02450

8871802500PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02500

8871816690PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-16690

887181A780PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A780

888990D070COVER, EVAPORATOR

main88899-0D070

8889952050COVER, EVAPORATOR

main88899-52050

9008010279

main90080-10279

9008010280

main90080-10280

9009120619

main90091-20619

9011906311

main90119-06311

9151160635

main91511-60635

91511G0625

main91511-G0625

9415080641

main94150-80641

34 parts on this diagram · 15 diagrams in section
