ANTENNA

0001 1 0002 1

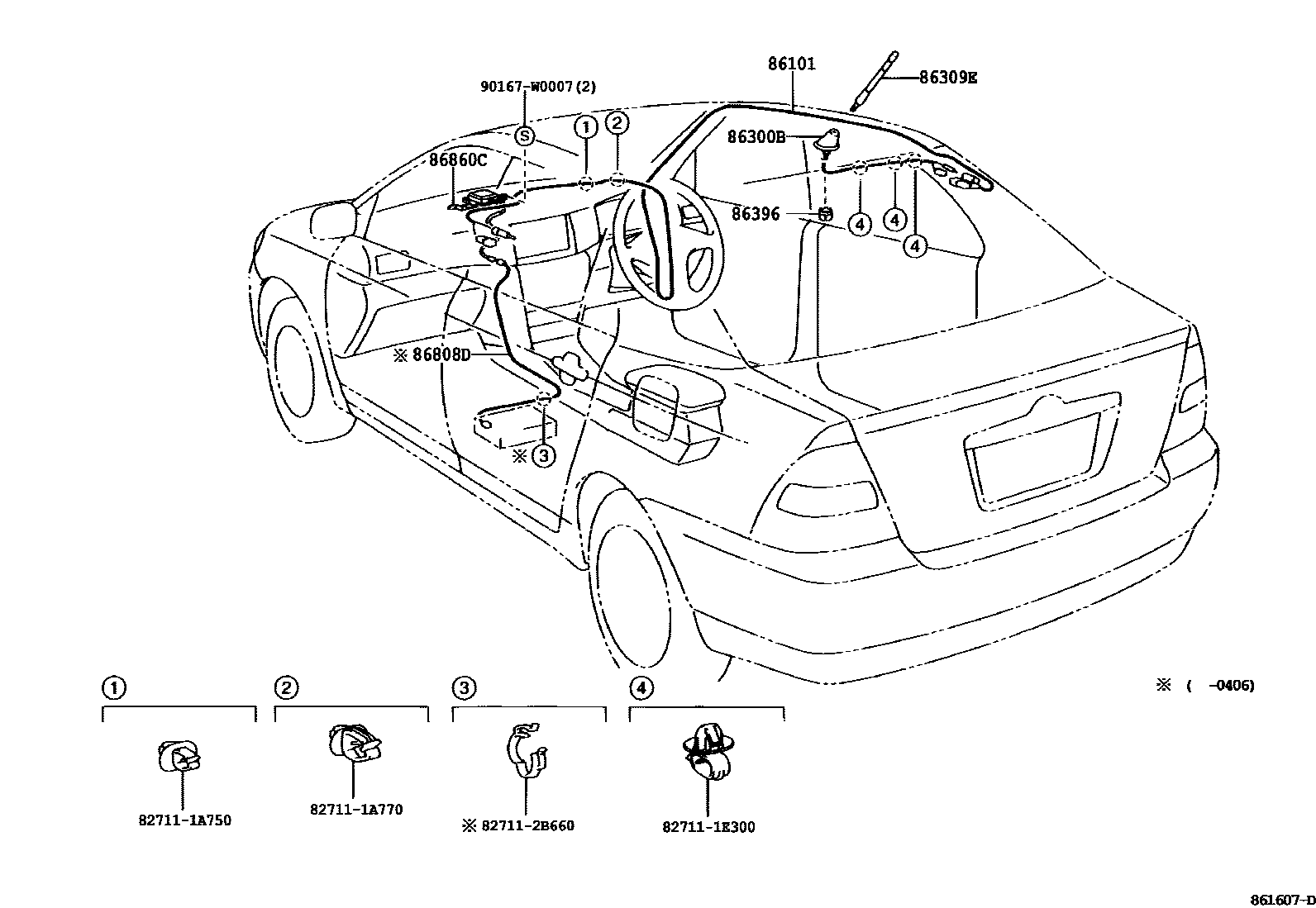

86101CORD SUB-ASSY, ANTENNA

main86101-02070iCDE120,ZZE12#..UKP..SED..(DCR,HTWC)200201-200301

main86101-02090iCDE120..UKP..WG..DCR;ZZE121..UKP..WG..4FC..TERRA200208-200406

main86101-02140iCDE120,NDE120,ZZE12#..UKP..SED200301-200406

main86101-12320iCDE120,ZZE12#..UKP..SED..(DCR,HTWC)¥8,200200201-200301

W(NAVIGATION SYSTEM)

main86101-12330iCDE120..UKP..WG..DCR;ZZE121..UKP..WG..4FC..TERRA¥8,200200208-200406

W(NAVIGATION SYSTEM)

main86101-12390iCDE120..UKP..SED..DCR;ZZE121..UKP..RHD..SOL¥5,800200301-200406

W(NAVIGATION SYSTEM)

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-02080iCDE120,ZZE12#..UKP..SED..(DCR,HTWC)200201-200301

sub86300-02081

main86300-02120iZZE120..UKP..WG;ZZE121..UKP..WG..SOL;ZZE121..UKP..WG..5F..TERRA200208-200504

sub86300-02121

main86300-02121iCDE120,NDE120,ZZE12#..UKP..WG200505

main86300-02190iCDE120..UKP..SED..DCR;ZZE121..UKP..RHD..SOL200301-200504

sub86300-02191

main86300-02191iCDE120,NDE120,ZZE12#..UKP..SED200505

main86300-12740iCDE120,ZZE12#..UKP..SED..(DCR,HTWC)200201-200301

W(NAVIGATION SYSTEM)

main86300-12790iCDE120..UKP..WG..DCR;ZZE121..UKP..WG..4FC..TERRA¥19,900200208-200406

W(NAVIGATION SYSTEM)

main86300-12810iCDE120..UKP..SED..DCR;ZZE121..UKP..RHD..SOL¥19,900200301-200406

W(NAVIGATION SYSTEM)

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-02040iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA¥3,270200201-200406

main86309-13010iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA¥3,270200201-200406

W(NAVIGATION SYSTEM)

86396NUT, ANTENNA

main86396-02020iCDE120,NDE120,ZZE12#..UKP200201-200406

main86396-12030iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA¥680200201-200406

W(NAVIGATION SYSTEM)

86808DCORD SUB-ASSY, NAVIGATION ANTENNA

main86808-13010iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA¥4,210200201-200406

86860CANTENNA ASSY, NAVIGATION

main86860-12030iCDE120,NDE120,ZZE12#..UKP..SOL¥37,300200406

main86860-13030iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA¥37,300200201-200406

sub86860-12050¥37,300

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750¥60

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770¥90

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300¥70

827112B660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B660¥190

90167W0007

main90167-W0007¥110

11 parts on this diagram · 2 diagrams in section
