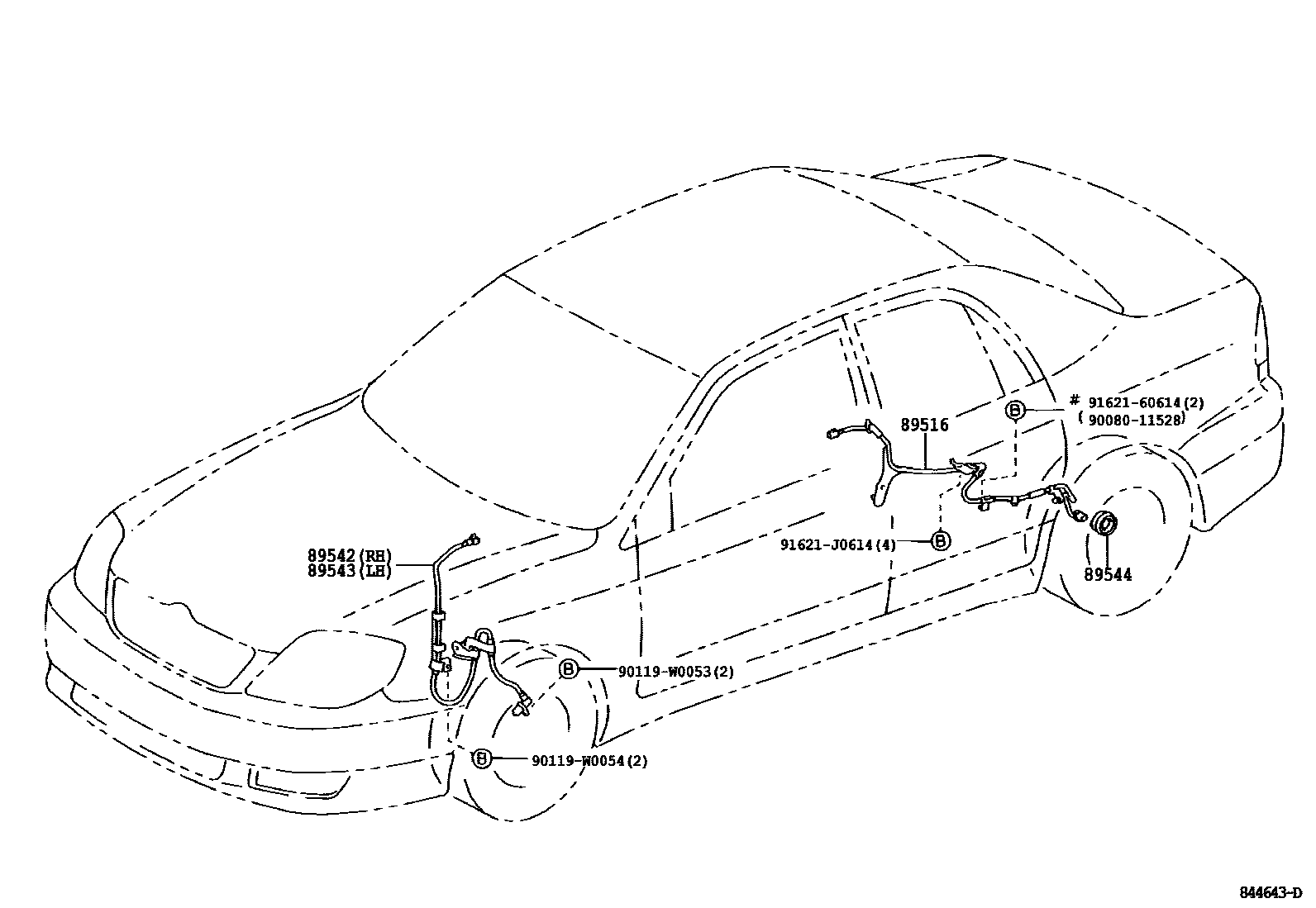

ABS & VSC

0001 1 0002 1

89516WIRE, SKID CONTROL SENSOR

main89516-02030iCDE120,NDE120,ZZE12#..UKP200201-200406

RH

main89516-02040iCDE120,ZZE12#..UKP200201-200406

LH

89542SENSOR, SPEED, FRONT RH

main89542-02040iCDE120,ZZE12#..UKP200201-200406

BOSCH

main89542-02040iCDE120,NDE120,ZZE12#..UKP200406

main89542-12070iCDE120,ZZE12#..UKP200201-200406

DENSO

89543SENSOR, SPEED, FRONT LH

main89543-02040iCDE120,ZZE12#..UKP200201-200406

BOSCH

main89543-02040iCDE120,NDE120,ZZE12#..UKP200406

main89543-12070iCDE120,ZZE12#..UKP200201-200406

DENSO

89544SENSOR, SKID CONTROL

main89544-02010iCDE120,NDE120,ZZE12#..UKP200201-200406

9008011528

main90080-11528

90119W0053

main90119-W0053

90119W0054

main90119-W0054

9162160614

main91621-60614

91621J0614

main91621-J0614

9 parts on this diagram · 2 diagrams in section
