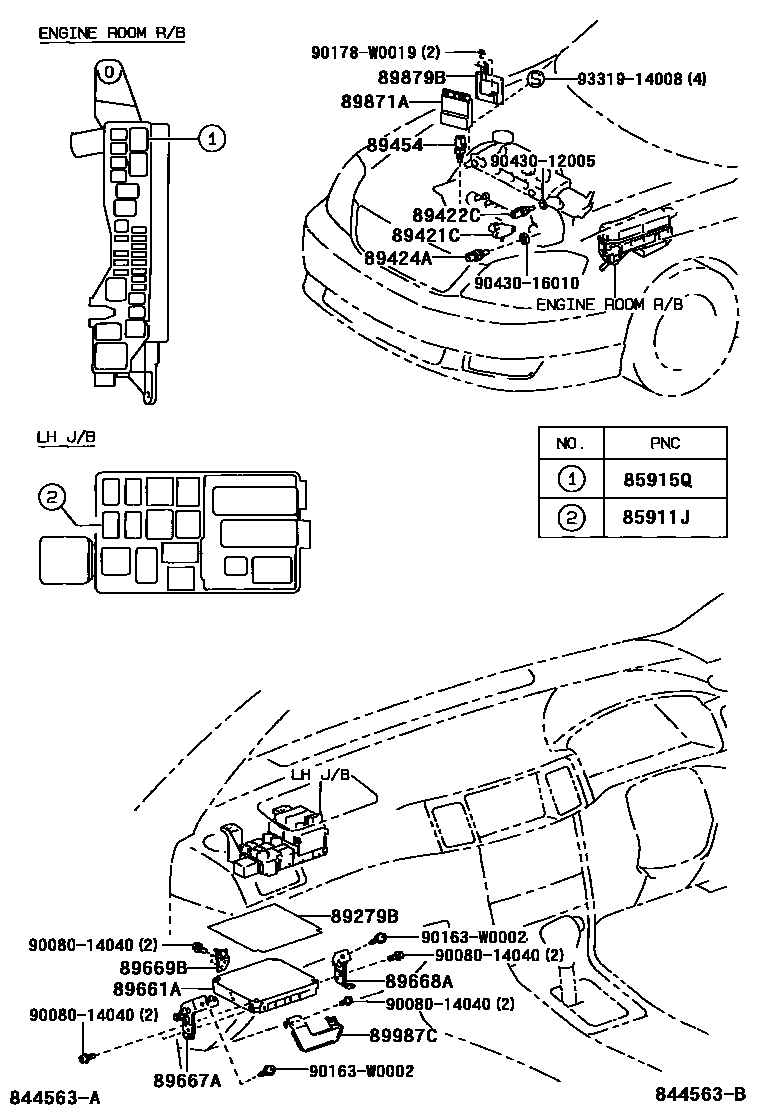

ELECTRONIC CONTROLED DIESEL (ECD)
85911JRELAY ASSY, CIRCUIT OPENING (FOR ECD)
sub90080-87021
85915QRELAY, COMPUTER (FOR DIESEL)
sub90080-87021
89279BCOVER, DIESEL ENGINE CONTROL COMPUTOR
89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE
89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89454SENSOR, FUEL TEMPERATURE
89661ACOMPUTER, ENGINE CONTROL
sub89601-02011
sub89601-02021
sub89661-02A62
PART NUMBER LABEL=89661-0Z050
89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1
89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3
89871ADRIVER, INJECTOR
89879BBRACKET, INJECTOR DRIVER
89987CBRACKET, COMPUTER, NO.1
9008014040
main90080-14040
90163W0002
main90163-W0002
90178W0019
main90178-W0019
9043012005
main90430-12005
9043016010
main90430-16010
9331914008
main93319-14008
20 parts on this diagram · 6 diagrams in section
