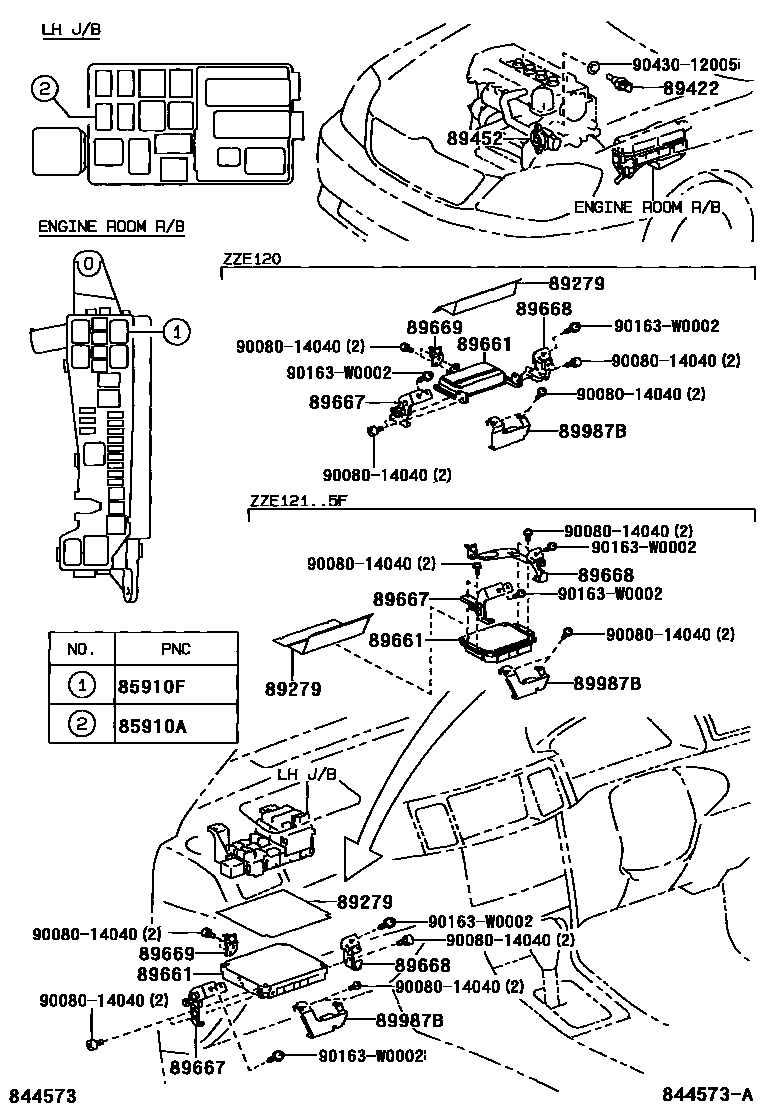

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90080-87019iZZE12#..UKP200201-200406

sub90080-87021

85910FRELAY, COMPUTER (FOR EFI)

main90080-87019iZZE12#..UKP200201-200406

sub90080-87021

89279COVER, ENGINE CONTROL COMPUTER

main89279-12150iZZE121..UKP..4FC200201-200406

main89279-52050iZZE120..UKP200201-200406

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iZZE12#..UKP200201-200406

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iZZE120..UKP200201-200406

89661COMPUTER, ENGINE CONTROL

main89661-02730iZZE120..UKP200201-200302

PART NUMBER LABEL=89661-02730

sub89661-02731

main89661-02731iZZE120..UKP200302-200406

PART NUMBER LABEL=89661-02731

sub89661-02732

main89661-02740iZZE120..UKP200201-200302

PART NUMBER LABEL=89661-02740

sub89661-02741

main89661-02741iZZE120..UKP200302-200406

PART NUMBER LABEL=89661-02741

sub89661-02742

main89661-02750iZZE121..UKP..5F200201-200406

PART NUMBER LABEL=89661-02750

sub89661-02751

main89661-02B00iZZE120..UKP200406-200410

PART NUMBER LABEL=89661-02B00

sub89661-02B01

main89661-02B01iZZE120..UKP..LHD200411-200510

PART NUMBER LABEL=89661-02B01

sub89661-02B02

main89661-02B10iZZE120..UKP200406-200410

PART NUMBER LABEL=89661-02B10

sub89661-02B11

main89661-02B11iZZE120..UKP200411

PART NUMBER LABEL=89661-02B11

sub89661-02B12

main89661-02B20iZZE120..UKP..RHD200406-200411

PART NUMBER LABEL=89661-02B20

sub89661-02B21

main89661-02B21iZZE120..UKP200411-200510

PART NUMBER LABEL=89661-02B21

sub89661-02B22

main89661-02B30iZZE120..UKP200406-200510

PART NUMBER LABEL=89661-02B30

sub89661-02B31

main89661-02B31iZZE120..UKP200411-200502

PART NUMBER LABEL=89661-02B31

sub89661-02B32

main89661-02B40iZZE121..UKP..4FC200406

PART NUMBER LABEL=89661-02B40

main89661-02B60iZZE121..UKP..4FC200406

PART NUMBER LABEL=89661-02B60

main89661-02B80iZZE121..UKP..5F200406

PART NUMBER LABEL=89661-02B80

main89661-02B90iZZE121..UKP..5F200406

PART NUMBER LABEL=89661-02B90

main89666-02060iZZE121..UKP..5F200201-200406

PART NUMBER LABEL=89666-02060

main89666-02070iZZE121..UKP..4FC200201-200406

PART NUMBER LABEL=89666-02070

sub89666-02071

main89666-02080iZZE121..UKP..4FC200201-200406

PART NUMBER LABEL=89666-02080

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-02130iZZE121..UKP200406

main89667-02150iZZE120..UKP..LHD200406

main89667-02160iZZE120..UKP..RHD200406

main89667-12190iZZE121..UKP..LHD..4FC200201-200406

main89667-13020iZZE120..UKP..LHD200201-200406

main89667-13030iZZE121..UKP..LHD..5F200201-200406

main89667-13041iZZE120..UKP..RHD200201-200406

main89667-13140iZZE121..UKP..RHD..TERRA200201-200406

main89667-13150iZZE121..UKP..RHD..SOL200201-200406

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02090iZZE121..UKP200406

main89668-02110iZZE120..UKP..LHD200406

main89668-02120iZZE120..UKP..RHD200406

main89668-13041iZZE120..UKP..RHD200201-200406

main89668-13050iZZE121..UKP..RHD..TERRA200201-200406

main89668-13060iZZE121..UKP..RHD..SOL200201-200406

main89668-13070iZZE120..UKP..LHD200201-200406

main89668-13080iZZE121..UKP..LHD..5F200201-200406

main89668-13090iZZE121..UKP..LHD..4FC200201-200406

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-02040iZZE121..UKP200406

main89669-02050iZZE120..UKP..LHD200406

main89669-02060iZZE120..UKP..RHD200406

main89669-12030iZZE121..UKP..4FC200201-200406

main89669-13010iZZE120..UKP..LHD200201-200406

main89669-13020iZZE120..UKP..RHD200201-200406

89987BBRACKET, COMPUTER, NO.1

main89987-02030iZZE120..UKP..RHD200406-200510

(L)

main89987-13010iZZE121..UKP..RHD200201-200406

main89987-13020iZZE120..UKP..RHD200201-200406

main89987-13020iZZE120..UKP..RHD200406

(J)

9008014040

main90080-14040

90163W0002

main90163-W0002

9043012005

main90430-12005

13 parts on this diagram · 4 diagrams in section
