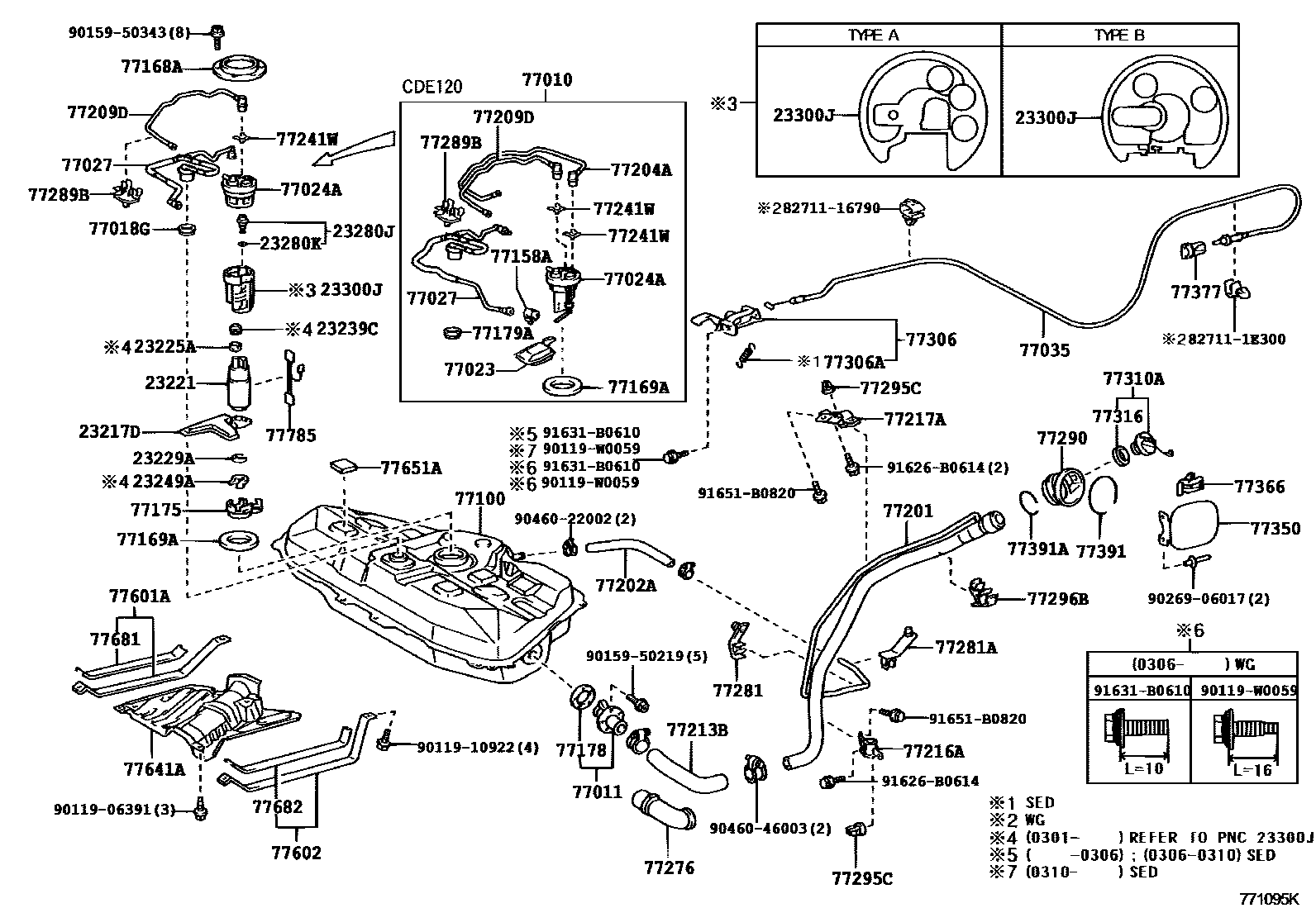

FUEL TANK & TUBE
23217DFILTER, FUEL PUMP
23225ASPACER, FUEL PUMP
(L)
(J)
23229ACLIP(FOR FUEL PUMP FILTER)
23239CSEAL, FUEL PUMP FILTER
(L)
(J)
23249ARUBBER, CUSHION(FOR FUEL PUMP)
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
23300JFILTER ASSY, FUEL
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
77010TUBE ASSY, FUEL TANK VENT
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77018GGASKET, FUEL TANK EVAP/VENT TUBE
77023FILTER SUB-ASSY, FUEL SUCTION TUBE
77024APLATE SUB-ASSY, FUEL SUCTION
77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77158ASUPPORT, TANK SUCTION TUBE
77168APLATE, FUEL TANK VENT TUBE SET
(L)
(J)
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77179AGASKET, FUEL TANK BREATHER TUBE
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
L=340
77204ATUBE, FUEL TANK RETURN
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77241WCLIP, TUBE JOINT
77276PROTECTOR, FUEL HOSE
77281BRACKET, FUEL MAIN TUBE, NO.1
77281ACLAMP, FUEL FILLER PIPE
77289BCLAMP, FUEL TUBE, NO.3
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77295CGROMMET, FUEL TUBE
77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
(L)
(L)
(J)
(J)
77306ASPRING, FUEL LID OPEN LEVER
(J)
(L)
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77602CASE SUB-ASSY, FUEL TANK, UPPER
77641APROTECTOR, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E300
9011906391
main90119-06391
9011910922
main90119-10922
90119W0059
main90119-W0059
9015950219
main90159-50219
9015950343
main90159-50343
9026906017
main90269-06017
9046022002
main90460-22002
9046046003
main90460-46003
91626B0614
main91626-B0614
91631B0610
main91631-B0610
91651B0820
main91651-B0820
67 parts on this diagram · 6 diagrams in section
