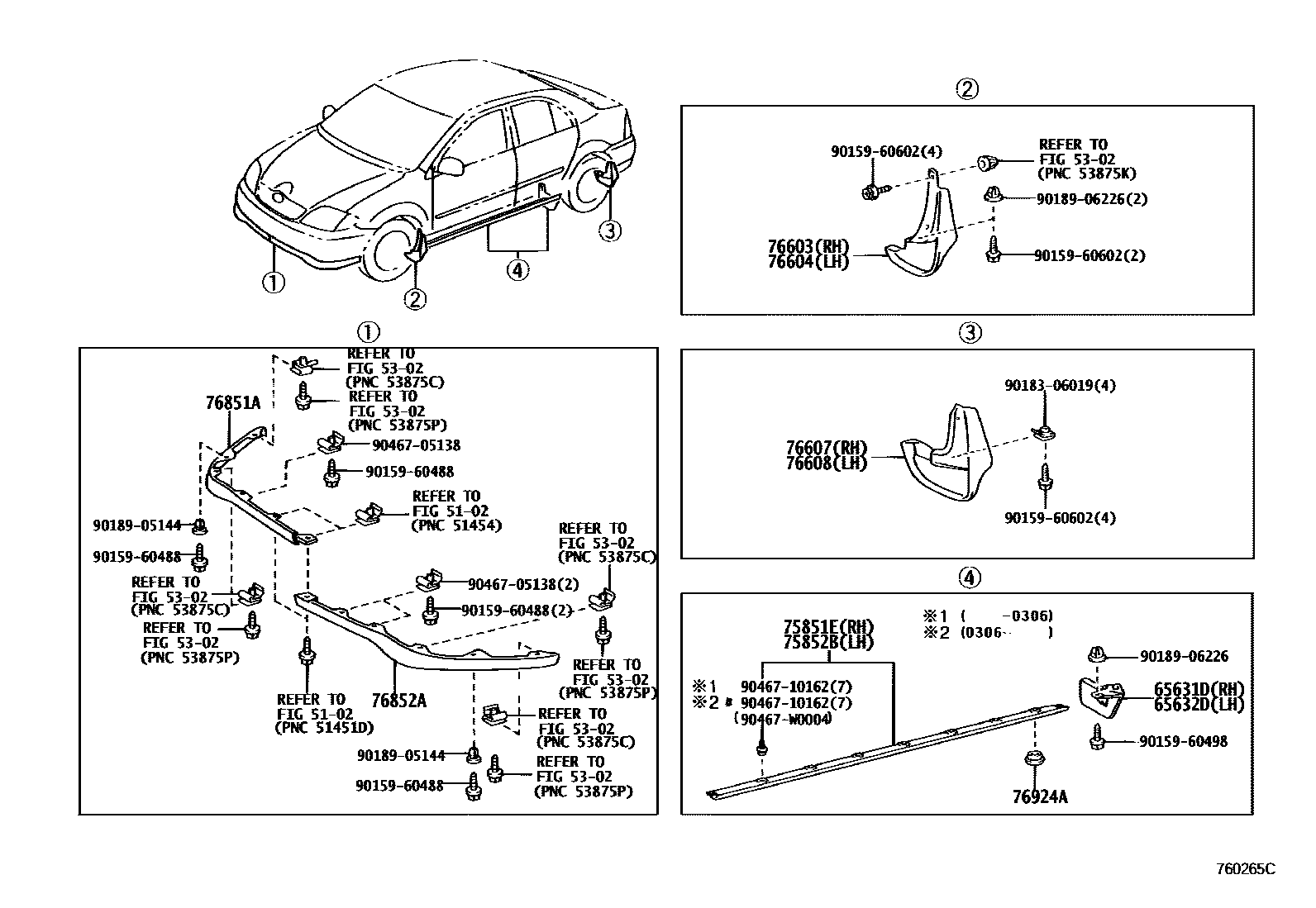

MUDGUARD & SPOILER
5102
5302
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
main65631-02010iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
main65632-02010iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406
75851EMOULDING, BODY ROCKER PANEL, RH
main75851-02050iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406
75852BMOULDING, BODY ROCKER PANEL, LH
main75852-02050iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
main76621-02110iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
main76622-02120iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
main76625-02120iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406
NO PAINT REQ.
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
main76626-02120iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406
NO PAINT REQ.
76851ACOVER, FRONT SPOILER, RH
main76851-02030iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406
76852ACOVER, FRONT SPOILER, LH
main76852-02030iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406
76924ARETAINER, SIDE MUDGUARD, NO.2
main76924-52021iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA¥110200201-200406
9015960488
9015960498
9015960602
9018306019
9018905144
9018906226
9046705138
9046710162
90467W0004
main90467-W0004
22 parts on this diagram · 1 diagram in section
