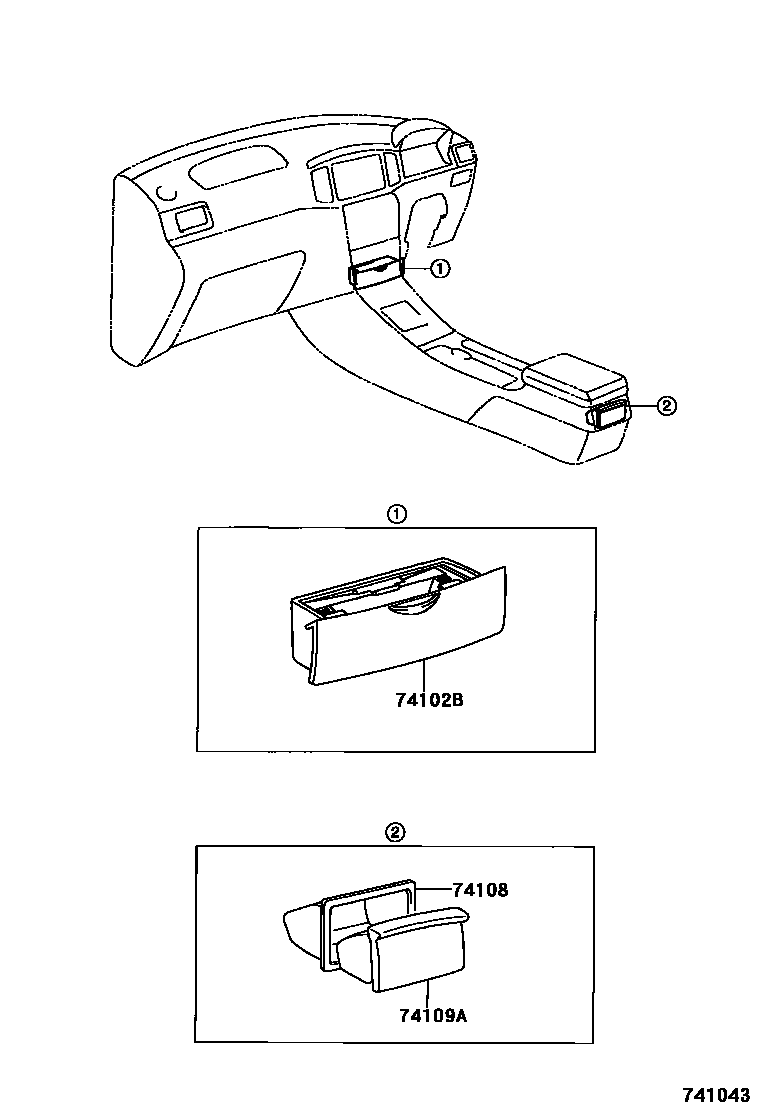

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-02080-B0iCDE120,NDE120,ZZE12#..UKP..TERRA200201-200406

DARK GRAY,TRIM1#

sub74102-02100

main74102-02090-B1iCDE120,ZZE12#..UKP..SOL200201-200406

GRAPHIC CARBON,TRIM1#

sub74102-02110

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-02020iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

(L)

sub74108-02010

main74108-28010iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

(J)

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-02050-B0iCDE120,ZZE12#..UKP200201-200406

DK.GRAY,TRIM1#,(L)

sub74109-02040

main74109-28010-B3iCDE120,ZZE12#..UKP200201-200406

DK.GRAY,TRIM1#,(J)

sub74109-28010

3 parts on this diagram · 1 diagram in section
