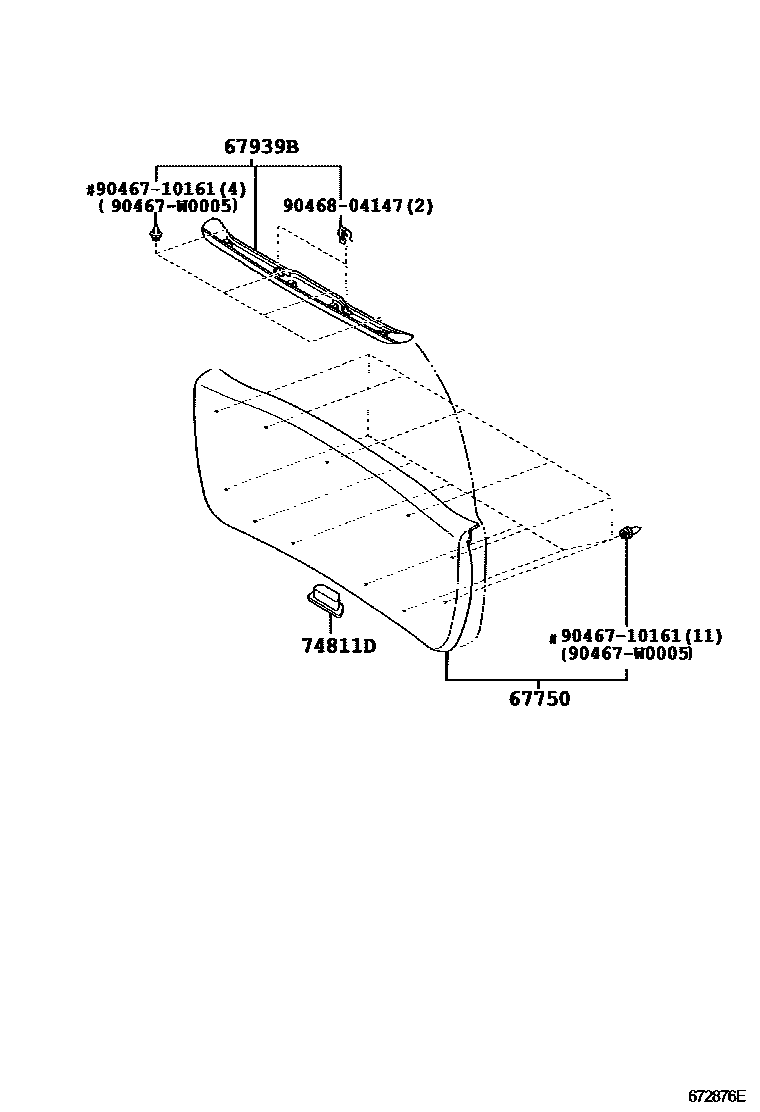

BACK DOOR PANEL & GLASS

0001 1 0002 1

67750BOARD ASSY, BACK DOOR TRIM

main67750-02050-B0iCDE120,ZZE12#..UKP..WG200208-200406

DK.GRAY,TRIM1#

67939BGARNISH, BACK DOOR, CENTER

main67939-02010-C0iCDE120,NDE120,ZZE12#..UKP..WG200208-200406

BLACK,TRIM1#

74811DHANDLE, DOOR PULL

main74811-13010-B5iCDE120,ZZE12#..UKP..WG200208-200406

DK.GRAY,TRIM1#

sub74811-13010

9046710161

main90467-10161

90467W0005

main90467-W0005

9046804147

main90468-04147

6 parts on this diagram · 2 diagrams in section
