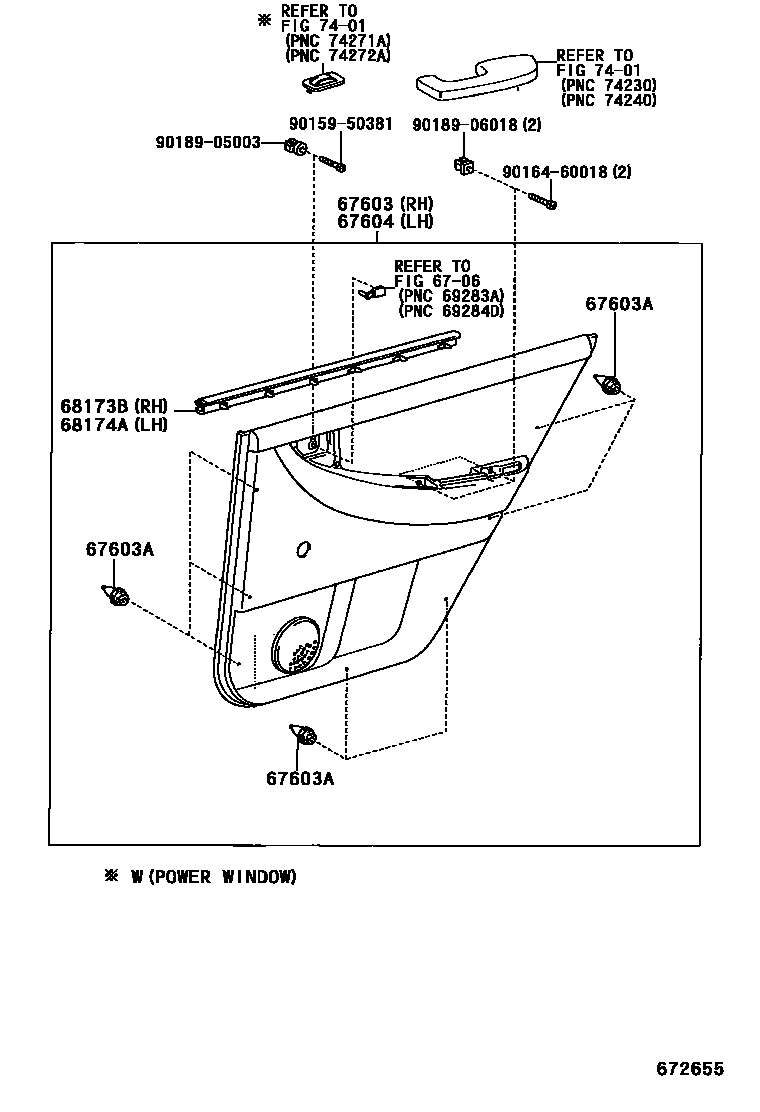

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

6706

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-02760-B1iCDE120,ZZE12#..UKP..TERRA200201-200406

DK.GRAY,TRIM1#

sub67630-02720

main67630-02770-B0iCDE120,ZZE12#..UKP..SOL200201-200406

DK.GRAY,TRIM1#

sub67630-02710

main67630-02A90-B0iCDE120,NDE120,ZZE12#..UKP..TERRA200406

DK.GRAY,TRIM1#

main67630-02B00-B0iCDE120,NDE120,ZZE12#..UKP..SOL200406

DK.GRAY,TRIM1#

main67630-02B10-B0iCDE120,NDE120,ZZE12#..UKP..TERRA200406

W(POWER WINDOW),DK.GRAY,TRIM1#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main90467-10161iCDE120,ZZE12#..UKP¥90200201-200306

main90467-10161iCDE120,ZZE12#..UKP¥90200306-200406

(J)

main90467-W0005iCDE120,ZZE12#..UKP¥80200306-200406

(L)

main90467-W0005iCDE120,NDE120,ZZE12#..UKP¥80200406

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-02760-B1iCDE120,ZZE12#..UKP..TERRA200201-200406

DK.GRAY,TRIM1#

sub67640-02720

main67640-02770-B0iCDE120,ZZE12#..UKP..SOL200201-200406

DK.GRAY,TRIM1#

sub67640-02710

main67640-02A90-B0iCDE120,NDE120,ZZE12#..UKP..TERRA200406

DK.GRAY,TRIM1#

main67640-02B00-B0iCDE120,NDE120,ZZE12#..UKP..SOL200406

DK.GRAY,TRIM1#

main67640-02B10-B0iCDE120,NDE120,ZZE12#..UKP..TERRA200406

W(POWER WINDOW),DK.GRAY,TRIM1#

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-12270iCDE120,ZZE12#..UKP¥3,090200201-200301

main68173-12290iCDE120,ZZE12#..UKP¥3,090200301-200406

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-12130iCDE120,ZZE12#..UKP¥3,090200201-200301

main68174-12150iCDE120,ZZE12#..UKP¥3,090200301-200406

7401

9015950381

main90159-50381¥110

9016460018

main90164-60018¥70

9018905003

main90189-05003¥130

9018906018

main90189-06018¥80

11 parts on this diagram · 3 diagrams in section
