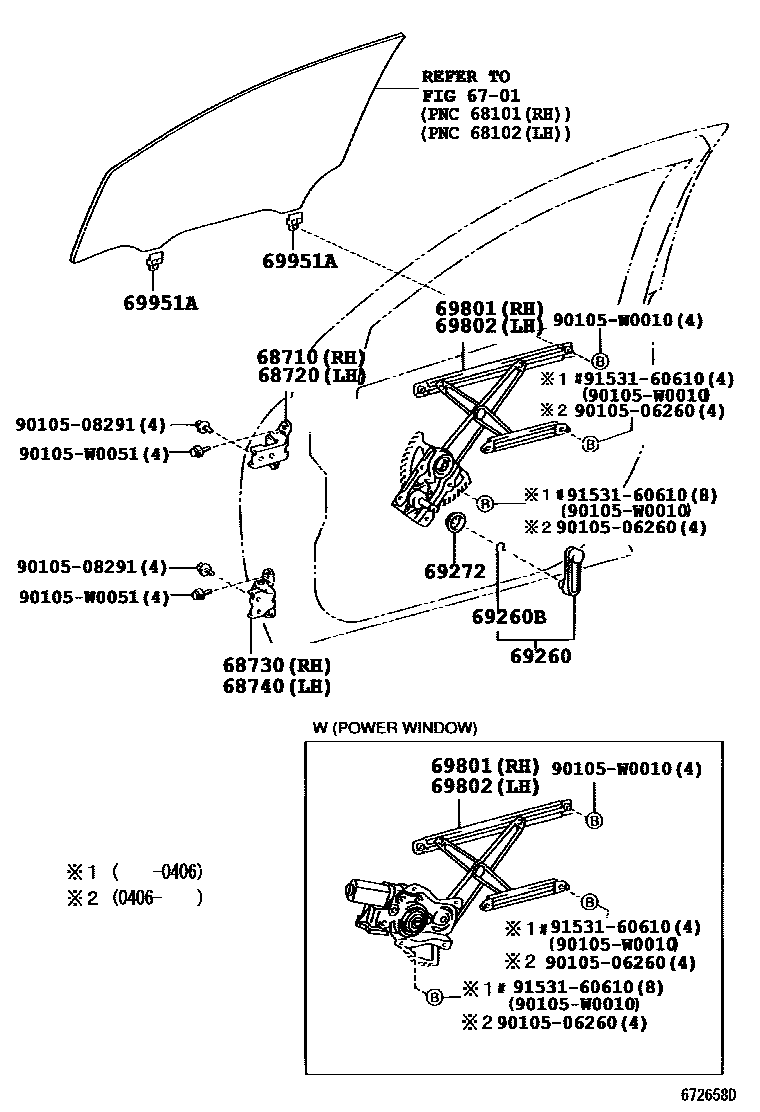

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02040iCDE120,ZZE12#..UKP200201-200406

FRAME NO.=EXXXXXX

sub68710-12151

main68710-02050iCDE120,ZZE12#..UKP200301-200406

FRAME NO.=RXXXXXX

main68710-02050iCDE120,NDE120,ZZE12#..UKP200406

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02040iCDE120,ZZE12#..UKP200201-200406

FRAME NO.=EXXXXXX

sub68720-12151

main68720-02050iCDE120,ZZE12#..UKP200301-200406

FRAME NO.=RXXXXXX

main68720-02050iCDE120,NDE120,ZZE12#..UKP200406

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02040iCDE120,ZZE12#..UKP200301-200406

FRAME NO.=RXXXXXX

main68730-02040iCDE120,NDE120,ZZE12#..UKP200406

main68730-0D010iCDE120,ZZE12#..UKP200201-200406

FRAME NO.=EXXXXXX

sub68730-52010

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02040iCDE120,ZZE12#..UKP200301-200406

FRAME NO.=RXXXXXX

main68740-02040iCDE120,NDE120,ZZE12#..UKP200406

main68740-0D010iCDE120,ZZE12#..UKP200201-200406

FRAME NO.=EXXXXXX

sub68740-52010

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-02020-B2iNDE120,ZZE12#..UKP..SED..TERRA200201-200406

DK.GRAY,TRIM1#

sub69260-02020

sub69260-02021

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90080-52100iCDE120,ZZE12#..UKP..TERRA200201-200406

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-02022iCDE120,ZZE12#..UKP..TERRA200208-200406

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-02140iNDE120,ZZE12#..UKP..SED..TERRA200201-200406

main69810-02150iNDE120..UKP200201-200406

W(POWER WINDOW)

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-02140iCDE120,ZZE12#..UKP..TERRA200201-200406

main69820-02150iCDE120,ZZE12#..UKP200201-200406

W(POWER WINDOW)

69951ACHANNEL, FRONT DOOR GLASS

main69951-16052iCDE120,NDE120,ZZE12#..UKP200406

9010506260

main90105-06260

9010508291

main90105-08291

90105W0010

main90105-W0010

90105W0051

main90105-W0051

9153160610

main91531-60610

16 parts on this diagram · 1 diagram in section
