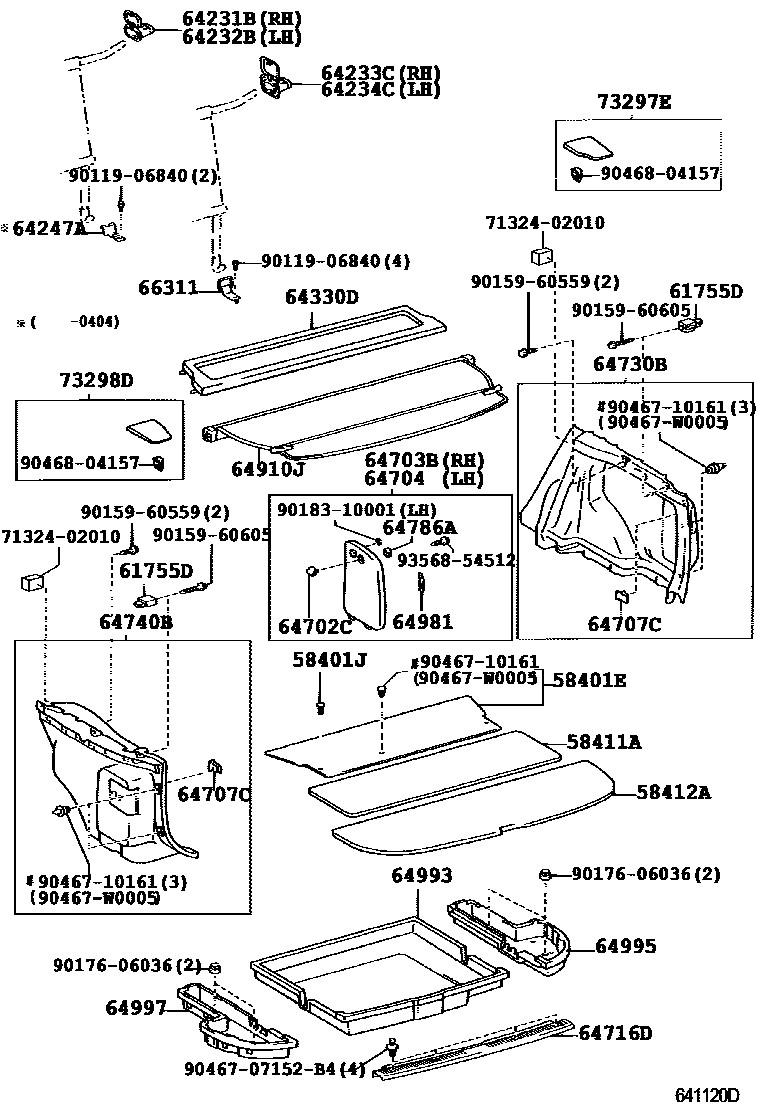

DECK BOARD & DECK TRIM COVER
58401EBOARD SUB-ASSY, DECK
GRAY,TRIM1#
58401JCLIP(FOR DECK BOAD)
58411ABOARD, DECK, NO.1
GRAY,TRIM1#
58412ABOARD, DECK, NO.2
GRAY,TRIM1#
61755DRETAINER, DECK SIDE TRIM, UPPER
64231BHOOK, ROOM PARTITION NET, FRONT RH
LT.GRAY,TRIM1#
64232BHOOK, ROOM PARTITION NET, FRONT LH
LT.GRAY,TRIM1#
64233CHOOK, ROOM PARTITION NET, REAR RH
LT.GRAY,TRIM1#
64234CHOOK, ROOM PARTITION NET, REAR LH
LT.GRAY,TRIM1#
64247ABRACKET, CENTER PILLAR GARNISH, RH
64330DPANEL ASSY, PACKAGE TRAY TRIM
DK.GRAY,TRIM1#
64702CKNOB, WASHER TANK COVER
64703BPANEL ASSY, DECK TRIM SIDE, RH
GRAY,TRIM1#
64707CKNOB, JACK COVER
64716DCOVER, DECK TRIM, REAR
64730BPANEL ASSY, DECK TRIM SIDE, RH
GRAY,TRIM1#
64740BBOARD, DECK TRIM SIDE, LH
GRAY,TRIM1#
64786APLATE, JACK COVER
64910JCOVER ASSY, TONNEAU
DK.GRAY,TRIM1#
64981STOPPER, WASHER TANK COVER
64993BOX, DECK FLOOR, REAR
64995BOX, DECK FLOOR, RH
64997BOX, DECK FLOOR, LH
66311HOOK, ROPE
73297ECOVER, DECK TRIM SIDE BELT HOLE, RH
DK.GRAY,TRIM1#
73298DCOVER,DECK TRIM SIDE BELT HOLE, LH
DK.GRAY,TRIM1#
7132402010SUPPORT SUB-ASSY, REAR NO.2 SEAT, LH
main71324-02010
9011906840
9015960559
9015960605
9017606036
9018310001
9046707152B4
main90467-07152B4
9046710161
90467W0005
9046804157
9356854512
37 parts on this diagram · 1 diagram in section
