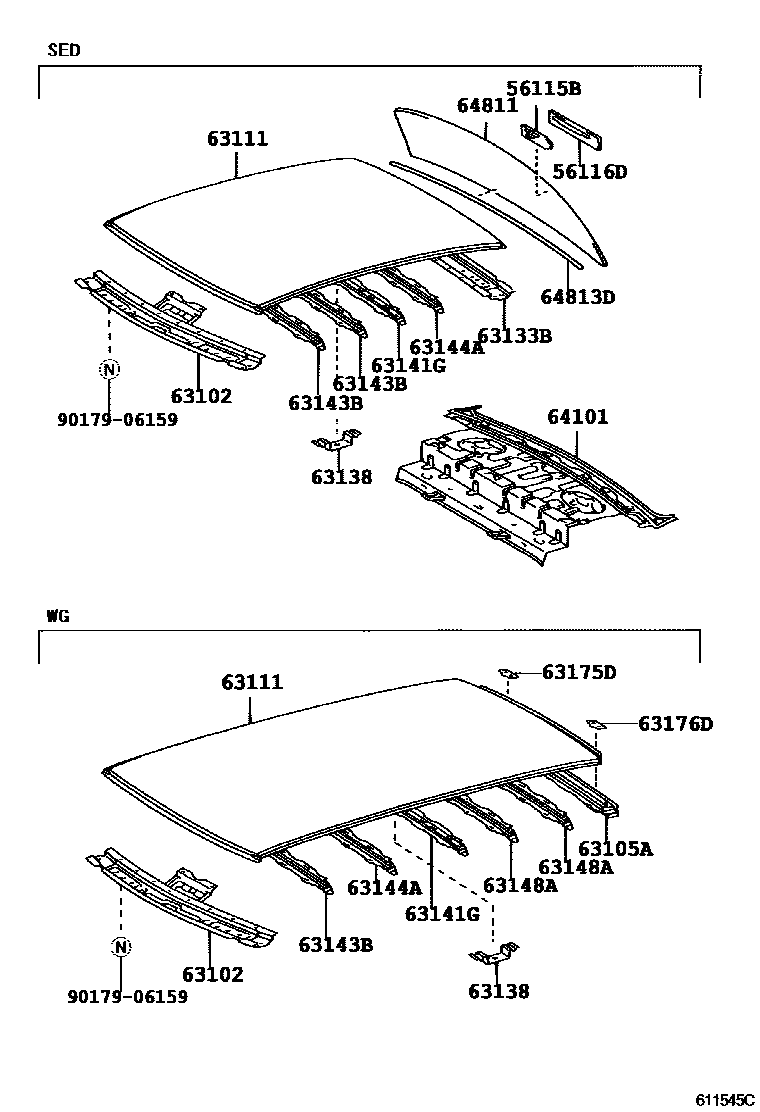

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
56116DSTOPPER, BACK WINDOW GLASS, NO.2
63102REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63105AFRAME SUB-ASSY, BACK DOOR OPENING
63111PANEL, ROOF
W(ROOF RAIL)
63133BFRAME, BACK WINDOW
63138BRACKET, DOME LAMP, NO.2
63141GREINFORCEMENT, ROOF PANEL, NO.1
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63148AREINFORCEMENT, ROOF PANEL, NO.7
63175DREINFORCEMENT, BACK DOOR HINGE FEMALE, RH
63176DREINFORCEMENT, BACK DOOR HINGE FEMALE, LH
64101PANEL SUB-ASSY, UPPER BACK
W(6:4 SPRIT REAR SEAT)
64811GLASS, BACK WINDOW
*EHTT,T=3.1,GREEN
*EHTT,T=3.1,GREEN,(L)
*EHTT,T=3.1,GREEN,COLD AREA SPEC
*EHTT,T=3.1,GREEN,COLD AREA SPEC,(L)
*EHT,T=3.1,GREEN,(J)
*EHT,T=3.1,GREEN,COLD AREA SPEC,(J)
64813DDAM, BACK WINDOW GLASS ADHESIVE
sub56117-47010
9017906159
main90179-06159
17 parts on this diagram · 2 diagrams in section
