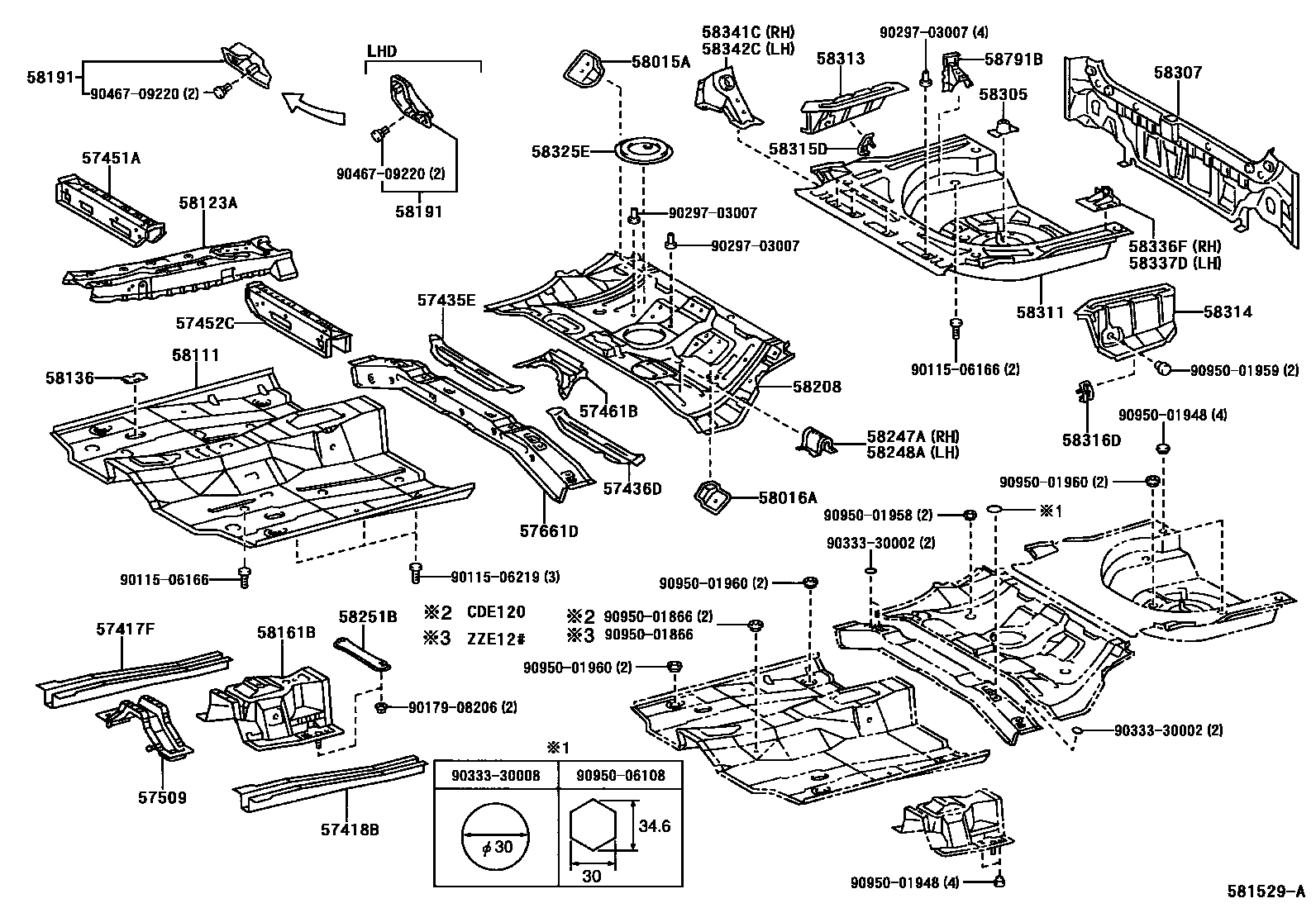

FLOOR PAN & LOWER BACK PANEL
57417FREINFORCEMENT, FRONT FLOOR UNDER, RH
57418BREINFORCEMENT, FRONT FLOOR UNDER, LH
57435EMEMBER, CENTER FLOOR SIDE, RH
57436DMEMBER, CENTER FLOOR SIDE, LH
57451AMEMBER, FRONT FLOOR CROSS, RH
57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57661DMEMBER, REAR FLOOR CROSS, FRONT
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
W(FIXED TYPE REAR SEAT )
W(SPLIT TYPE REAR SEAT)
W(FIXED TYPE REAR SEAT )
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58111PAN, FRONT FLOOR
58123ASUPPORT, SHIFT & SELECT LEVER
58136COVER, FRONT FLOOR HOLE
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58191FOOTREST, FRONT FLOOR
58208PAN, CENTER FLOOR
W(FIXED TYPE REAR SEAT )
W(SPLIT TYPE REAR SEAT)
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58251BBRACE, FLOOR PANEL, FRONT
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58336FREINFORCEMENT, REAR FLOOR PAN, RH
58337DREINFORCEMENT, REAR FLOOR PAN, LH
58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58791BCARRIER, JACK
9011506166
9011506219
9017908206
9029703007
9033330002
9033330008
9046709220
9095001866
9095001948
9095001958
9095001959
9095001960
9095006108
46 parts on this diagram · 2 diagrams in section
