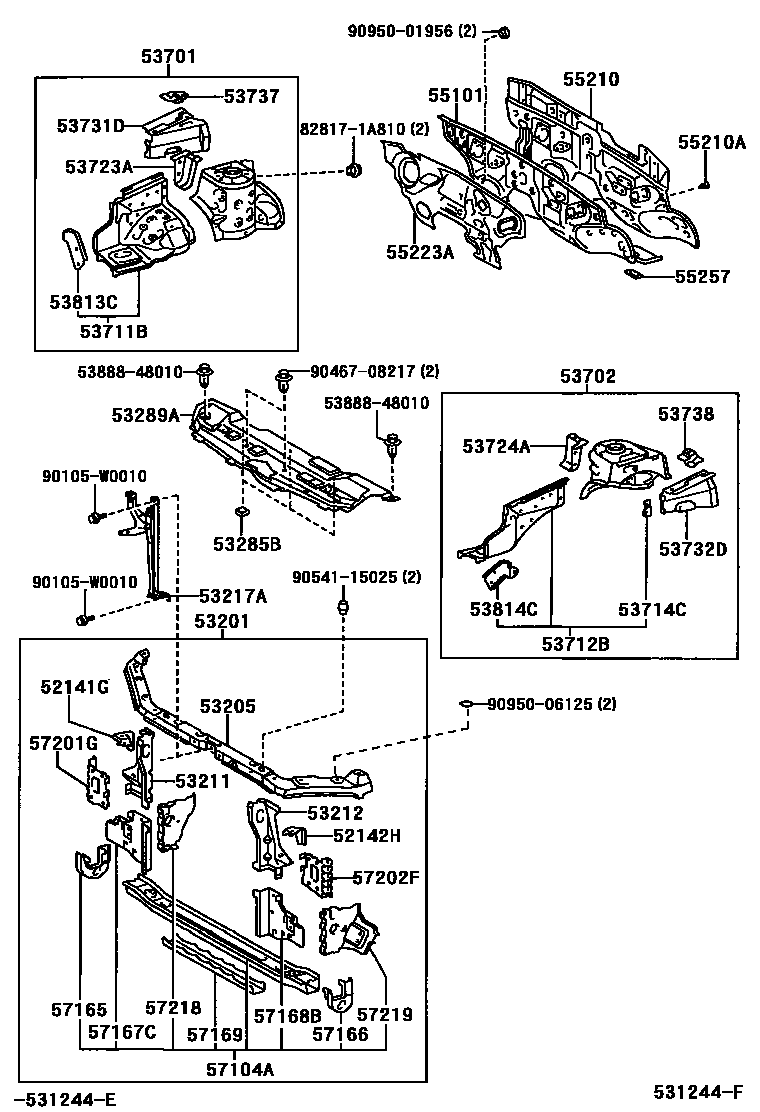

FRONT FENDER APRON & DASH PANEL
52141GSTAY, FRONT BUMPER, RH
52142HSTAY, FRONT BUMPER, LH
53201SUPPORT SUB-ASSY, RADIATOR
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53217ABRACE, HOOD LOCK SUPPORT
(L)
(J)
53285BSEAL, RADIATOR SIDE AIR, NO.1
53289ACOVER, RADIATOR SUPPORT OPENING
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
(L)
(J)
53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH
53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
(L)
(J)
53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
(L)
(J)
53813CEXTENSION, FRONT FENDER, RH
(L)
(J)
53814CEXTENSION, FRONT FENDER, LH
(L)
(J)
55101PANEL SUB-ASSY, DASH
COLD AREA SPEC
COLD SPEC
COLD SPEC
COLD AREA SPEC
55210ACLIP
55257COVER, DASH PANEL OPENING
57104AMEMBER SUB-ASSY, FRONT CROSS
57165REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH
57166REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH
57167CGUSSET, FRONT CROSSMEMBER SIDE, RH
57168BGUSSET, FRONT CROSSMEMBER SIDE, LH
57169MEMBER, FRONT FLOOR, FRONT RH
57218GUSSET, FRONT SIDE MEMBER, NO.1
57219GUSSET, FRONT SIDE MEMBER, NO.2
5388848010SHEET, BAFFLE
828171A810PROTECTOR, WIRING HARNESS, NO.1
90105W0010
9046708217
9054115025
9095001956
9095006125
44 parts on this diagram · 2 diagrams in section
