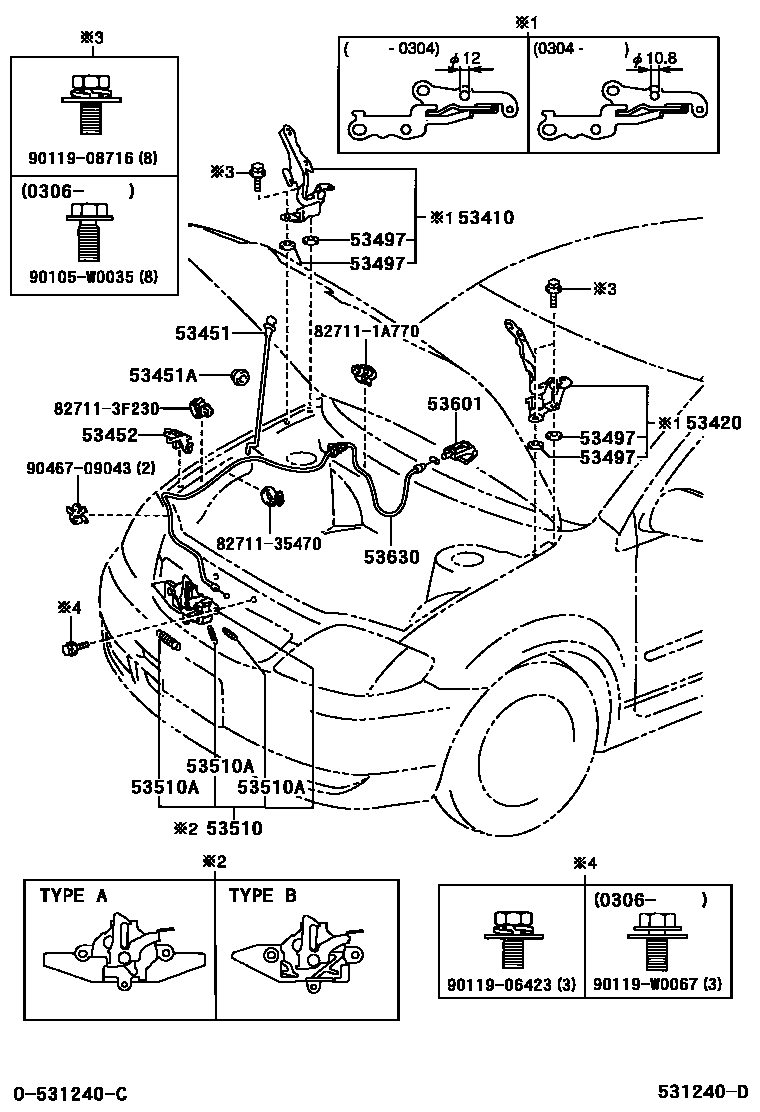

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-02040iCDE120,ZZE12#..UKP200201-200304

sub53410-02041

sub90105-08031

main53410-02041iCDE120,ZZE12#..UKP200304-200406

53420HINGE ASSY, HOOD, LH

main53420-02040iCDE120,ZZE12#..UKP200201-200304

sub53420-02041

sub90105-08031

main53420-02041iCDE120,ZZE12#..UKP200304-200406

53451ROD, HOOD SUPPORT

main53440-02020iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15034iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

53452HOLDER, HOOD STAY

main53452-12040iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

53497PAD, HOOD HINGE, NO.1

main53497-42010iCDE120,ZZE12#..UKP200201-200406

T=0.5

53510LOCK ASSY, HOOD

main53510-02170iZZE12#..UKP..RHD..TERRA200301-200406

TYPE A:REFER TO ILLUSTRATION

main53510-02170iCDE120,NDE120,ZZE12#..UKP..RHD200406

main53510-02180iCDE120,NDE120,ZZE12#..UKP..LHD200406

main53510-02180iZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA200301-200406

TYPE A:REFER TO ILLUSTRATION

main53510-12690iCDE120,ZZE12#..UKP..RHD..(DCR,HTWC)200201-200301

sub53510-12780

main53510-12700iCDE120,ZZE12#..UKP..LHD..(DCR,HTWC)200201-200301

sub53510-12790

main53510-12780iCDE120..UKP..RHD..DCR;ZZE121..UKP..RHD..SOL200301-200406

TYPE B:REFER TO ILLUSTRATION

main53510-12790iZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA200301-200406

TYPE B:REFER TO ILLUSTRATION

53510ASPRING, TENSION(FOR HOOD LOCK)

main90080-50365iCDE120,ZZE12#..UKP..(DCR,HTWC)200301-200307

WD=1.8,CW=16,TYPE A:REFER TO ILLUSTRATION

main90080-50398iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200301-200406

WD=0.9,CW=20.75,TYPE A:REFER TO ILLUSTRATION

main90080-50398iCDE120,NDE120,ZZE12#..UKP..LHD200406

WD=0.9,CW=20.75

main90080-50399iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA200301-200406

WD=1.2,CW=8.5,TYPE A:REFER TO ILLUSTRATION

main90080-50399iCDE120,NDE120,ZZE12#..UKP200406

WD=1.2,CW=8.5

main90506-09052iCDE120,ZZE12#..UKP..RHD..(DCR,HTWC)200201-200301

WD=0.9,CW=20.75

main90506-09055iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA200301-200406

WD=0.9,CW=21,TYPE B:REFER TO ILLUSTRATION

main90506-12063iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA200301-200406

WD=1.2,CW=8.5,TYPE B:REFER TO ILLUSTRATION

main90506-12063iCDE120,ZZE12#..UKP..(DCR,HTWC)200201-200301

WD=1.2,CW=8.5

main90506-18067iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA200301-200406

WD=1.8,CW=13,TYPE B:REFER TO ILLUSTRATION

main90506-18067iCDE120,ZZE12#..UKP..(DCR,HTWC)200201-200301

WD=1.8,CW=13

main90506-W0001iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200307-200406

WD=1.8,CW=16,TYPE A:REFER TO ILLUSTRATION

main90506-W0001iCDE120,NDE120,ZZE12#..UKP200406

WD=1.8,CW=16

main90905-06005iCDE120,ZZE12#..UKP..LHD..(DCR,HTWC)200201-200301

WD=0.9,CW=21.25

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-05030-B0iCDE120,NDE120,ZZE12#..UKP200406

DK.GRAY,TRIM1#

sub53601-05030

main53601-05030-B0iCDE120,ZZE12#..UKP200301-200406

DK.GRAY,TRIM1#,(L)

sub53601-05030

main53601-52010-B3iCDE120,ZZE12#..UKP200301-200406

DK.GRAY,TRIM1#,(J)

sub53601-52010

main53601-52010-B3iCDE120,ZZE12#..UKP200201-200301

DK.GRAY,TRIM1#

sub53601-52010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-02100iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA200301-200406

(L)

main53630-02100iCDE120,NDE120,ZZE12#..UKP200406

main53630-12510iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200301-200406

(J)

main53630-12510iCDE120,ZZE12#..UKP..(DCR,HTWC)200201-200301

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

8271135470WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35470

827113F230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F230

90105W0035

main90105-W0035

9011906423

main90119-06423

9011908716

main90119-08716

90119W0067

main90119-W0067

9046709043

main90467-09043

18 parts on this diagram · 2 diagrams in section
