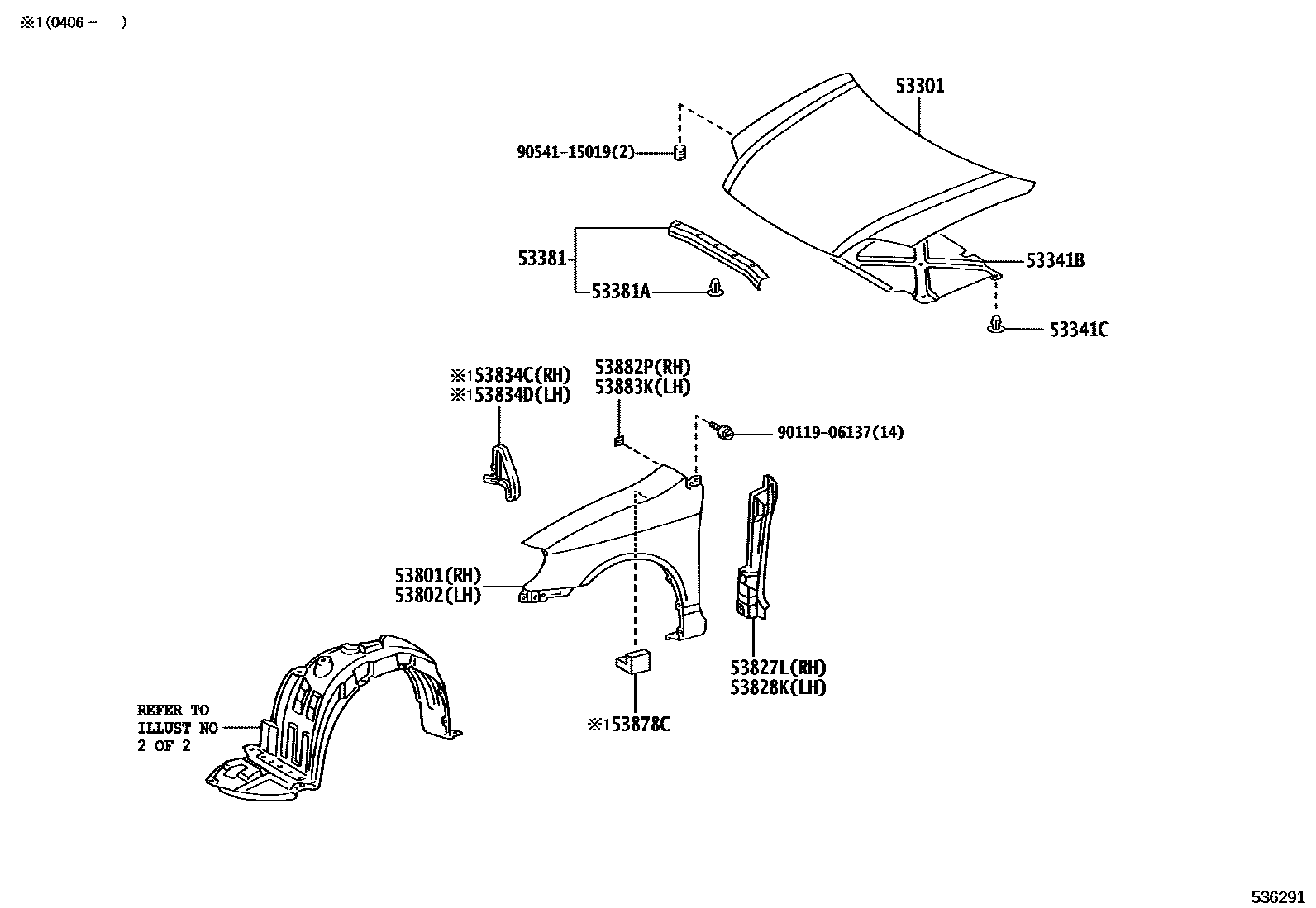

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-02080iCDE120,NDE120,ZZE12#..UKP200201-200406

53341BINSULATOR, HOOD

main53341-02060iZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA200201-200406

main53341-02080iCDE120,NDE120..UKP200201-200406

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA¥120200201-200406

main90467-W0003iCDE120,NDE120,ZZE12#..UKP¥130200406

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-02060iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iCDE120,NDE120,ZZE12#..UKP¥100200201-200406

53801FENDER SUB-ASSY, FRONT RH

main53811-02080iCDE120,NDE120,ZZE12#..UKP200201-200406

53802FENDER SUB-ASSY, FRONT LH

main53812-02080iCDE120,ZZE12#..UKP200201-200406

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-02060iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA200301-200406

(L)

main53827-02060iCDE120,NDE120,ZZE12#..UKP200406

main53827-12050iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA¥2,420200301-200406

(J)

main53827-12050iCDE120,ZZE12#..UKP..(DCR,HTWC)¥2,420200201-200301

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-02060iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200301-200406

(L)

main53828-02060iCDE120,NDE120,ZZE12#..UKP200406

main53828-12050iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA¥2,420200301-200406

(J)

main53828-12050iCDE120,ZZE12#..UKP..(DCR,HTWC)¥2,420200201-200301

53834CPLATE, FRONT FENDER SUPPORT, RH

main53834-02010iCDE120,NDE120,ZZE12#..UKP200406

53834DPLATE, FRONT FENDER SUPPORT, LH

main53834-02010iCDE120,NDE120,ZZE12#..UKP200406

53878CSPACER, FRONT FENDER

main53878-02010iCDE120,NDE120,ZZE12#..UKP200406

53882PSEAL, FRONT FENDER, RH

main53882-16030iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA¥60200201-200406

53883KSEAL, FRONT FENDER, LH

main53882-16030iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA¥60200201-200406

9011906137

main90119-06137¥70

9054115019

main90541-15019¥200

16 parts on this diagram · 2 diagrams in section
