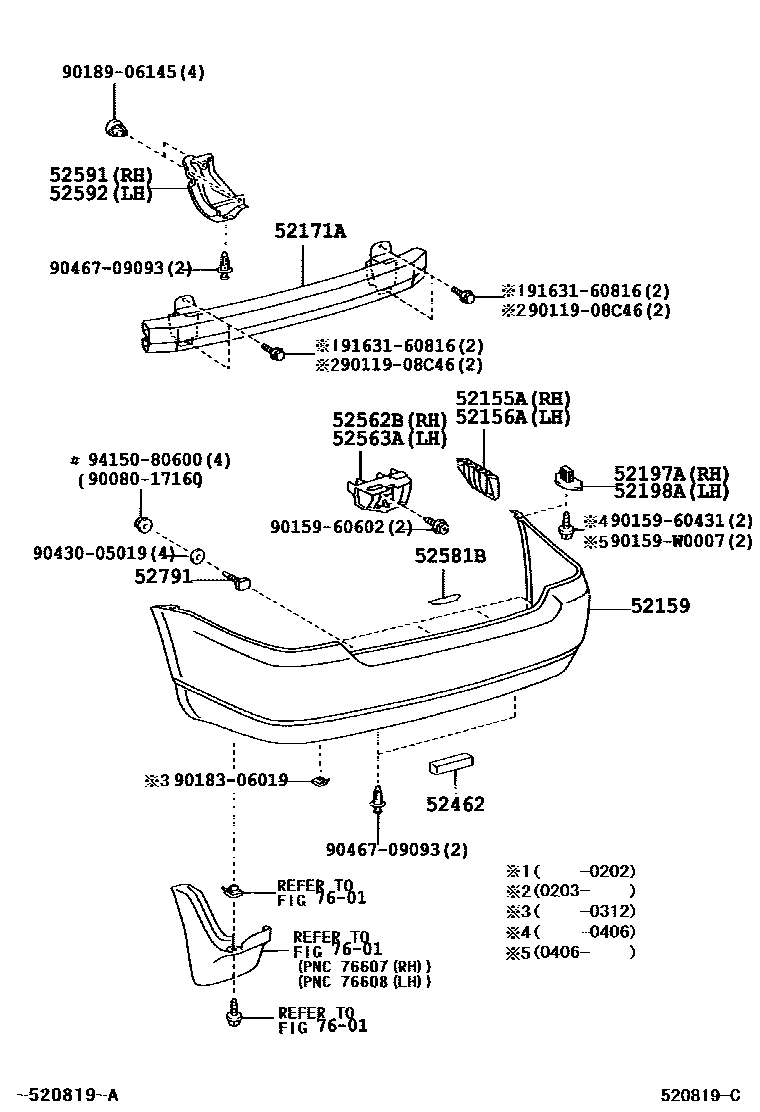

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-02060iZZE12#..UKP..SED..5F;ZZE121..UKP..LHD..SED..4FC200201-200406

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-02060iZZE12#..UKP..SED..5F;ZZE121..UKP..LHD..SED..4FC200201-200406

52159COVER, REAR BUMPER

main52159-02909iCDE120,ZZE12#..UKP..SED200201-200406

PAINT REQ.

main52159-02917iCDE120,NDE120,ZZE12#..UKP..WG200208-200406

PAINT REQ.

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52023-02070iCDE120,NDE120,ZZE12#..UKP..SED200201-200406

sub52023-12200

main52023-02100iCDE120,NDE120,ZZE12#..UKP..WG200208-200406

sub52023-12260

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-12080iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

52198ABRACKET, REAR BUMPER SEAL, LH

main52198-12080iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

52462PAD, REAR BUMPER, RH

main52462-12070iZZE12#..UKP..SED..5F;ZZE121..UKP..LHD..SED..4FC200201-200406

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-02030iZZE12#..UKP..SED..5F;ZZE121..UKP..LHD..SED..4FC200201-200406

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-02020iCDE120..UKP..SED..DCR;ZZE121..UKP..RHD..SOL200201-200406

52581BPROTECTOR, REAR BUMPER

main52581-12120iZZE12#..UKP..SED..5F;ZZE121..UKP..LHD..SED..4FC200201-200406

52591SEAL, REAR BUMPER SIDE, RH

main52591-02030iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

52592SEAL, REAR BUMPER SIDE, LH

main52592-02020iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

52791BOLT, BUMPER MOULDING SET, NO.1

main52791-12040iZZE12#..UKP..SED..5F;ZZE121..UKP..LHD..SED..4FC200201-200406

7601

9008017160

main90080-17160

9011908C46

main90119-08C46

9015960431

main90159-60431

9015960602

main90159-60602

90159W0007

main90159-W0007

9018306019

main90183-06019

9018906145

main90189-06145

9043005019

main90430-05019

9046709093

main90467-09093

9163160816

main91631-60816

9415080600

main94150-80600

25 parts on this diagram · 2 diagrams in section
