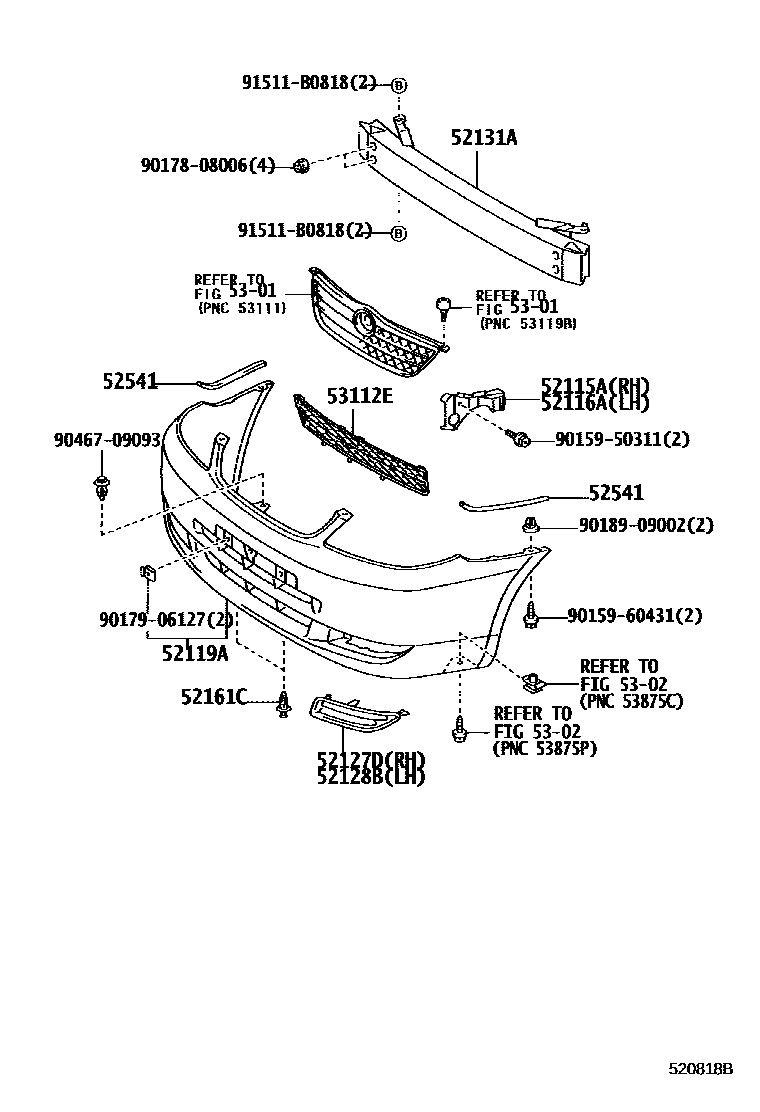

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-02050iCDE120,ZZE12#..UKP200201-200406

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-02050iCDE120,NDE120,ZZE12#..UKP200406

52119ACOVER, FRONT BUMPER

main52119-02912iCDE120,ZZE12#..UKP200201-200406

PAINT REQ.

main52119-02942iCDE120,NDE120,ZZE12#..UKP200406

PAINT REQ.

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-02030iCDE120,ZZE12#..UKP200201-200406

sub52127-12170

main52127-02150iCDE120,NDE120,ZZE12#..UKP200406

W(FOG LAMP)

main52127-02160iCDE120,NDE120,ZZE12#..UKP200406

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-02020iCDE120,ZZE12#..UKP200201-200406

sub52128-12070

main52128-02160iZZE12#..UKP200406

W(FOG LAMP)

main52128-02170iCDE120,NDE120..UKP200406

W(FOG LAMP)

main52128-02180iZZE12#..UKP200406

main52128-02190iCDE120,NDE120..UKP200406

52131AREINFORCEMENT, FRONT BUMPER

main52021-02050iCDE120,ZZE12#..UKP200201-200301

sub52021-13020

main52021-02080iCDE120,ZZE12#..UKP200301-200406

sub52021-13030

52161CPIECE, FRONT BUMPER

main52161-16010×2iCDE120,ZZE12#..UKP200201-200406

sub52161-0K040

52541PROTECTOR, FRONT BUMPER

main52541-12020×2iCDE120,ZZE12#..UKP200201-200406

5301

5302

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-02020iCDE120,ZZE12#..UKP200201-200406

NO PAINT REQ.

sub53112-12110

main53112-02050iCDE120,NDE120,ZZE12#..UKP200406

NO PAINT REQ.

9015950311

main90159-50311

9015960431

main90159-60431

9017808006

main90178-08006

9017906127

main90179-06127

9018909002

main90189-09002

9046709093

main90467-09093

91511B0818

main91511-B0818

18 parts on this diagram · 3 diagrams in section
