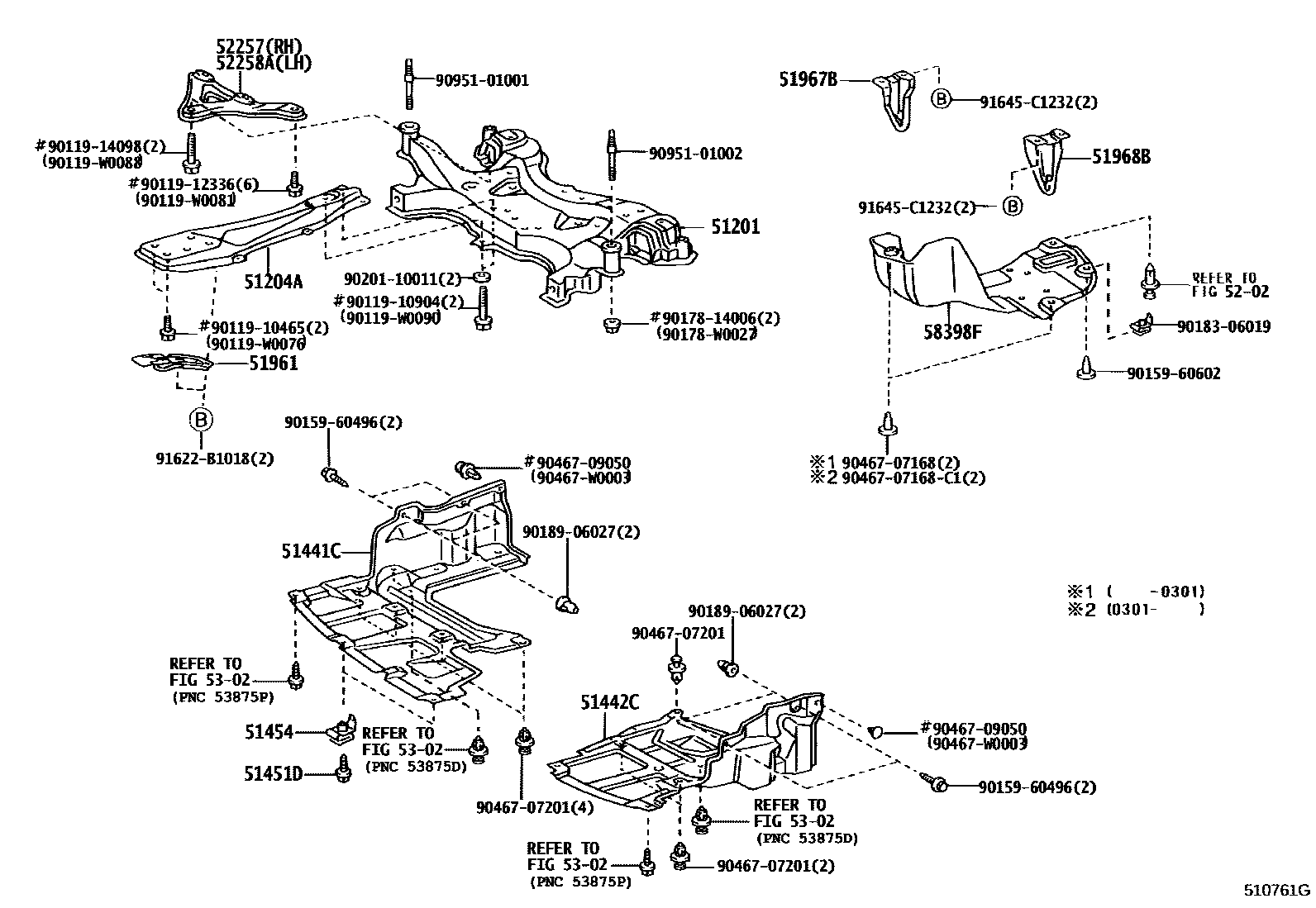

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02080iCDE120,ZZE12#..UKP200201-200209

sub51201-02081

main51201-02081iCDE120,ZZE12#..UKP200209-200304

sub51201-02082

sub90119-08C04

main51201-02082iCDE120,NDE120,ZZE12#..UKP200406

FRAME NO.=EXXXXXX

sub51201-0F011

main51201-02082iCDE120,ZZE12#..UKP200304-200406

sub51201-0F011

main51201-0F010iCDE120,NDE120,ZZE12#..UKP200405-200502

FRAME NO.=RXXXXXX

sub51201-0F011

main51201-0F011iCDE120,NDE120,ZZE12#..UKP200503

FRAME NO.=RXXXXXX

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-02041iCDE120,ZZE12#..UKP200201-200301

sub51204-02042

main51204-02042iCDE120,ZZE12#..UKP200301-200402

sub51204-02043

main51204-02043iCDE120,ZZE12#..UKP200402-200406

main51204-05051iCDE120,NDE120,ZZE12#..UKP200406

51441CCOVER, ENGINE UNDER, RH

main51410-02040iCDE120..UKP200201-200406

main51410-02080iCDE120..UKP200406

main51410-02090iNDE120..UKP200408

main51441-02090iZZE12#..UKP200201-200406

51442CCOVER, ENGINE UNDER, LH

main51420-02060iCDE120,NDE120..UKP200406

main51442-02130iCDE120,ZZE12#..UKP..5F200201-200406

main51442-02140iZZE121..UKP..4FC200201-200406

51451DSCREW, NO.1

main90159-60488iCDE120,NDE120,ZZE12#..UKP200201-200702

51454CLIP

main90467-05138iCDE120,ZZE12#..UKP200201-200702

51961HOOK, NO.1

main51960-02030iCDE120,ZZE12#..UKP200201-200406

51967BHOOK, TRANSPORT, REAR RH

main51967-02020iCDE120,ZZE12#..UKP200201-200406

51968BHOOK, TRANSPORT, REAR LH

main51968-02030iCDE120,ZZE12#..UKP200201-200406

5202

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-02020iCDE120,ZZE12#..UKP200201-200406

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-02020iCDE120,ZZE12#..UKP200201-200406

5302

58398FCOVER, FLOOR UNDER, NO.1

main58398-02020iCDE120,ZZE12#..UKP200201-200406

9011910465

main90119-10465

9011910904

main90119-10904

9011912336

main90119-12336

9011914098

main90119-14098

90119W0076

main90119-W0076

90119W0081

main90119-W0081

90119W0088

main90119-W0088

90119W0090

main90119-W0090

9015960496

main90159-60496

9015960602

main90159-60602

9017814006

main90178-14006

90178W0027

main90178-W0027

9018306019

main90183-06019

9018906027

main90189-06027

9020110011

main90201-10011

9046707168

main90467-07168

9046707168C1

main90467-07168C1

9046707201

main90467-07201

9046709050

main90467-09050

90467W0003

main90467-W0003

9095101001

main90951-01001

9095101002

main90951-01002

91622B1018

main91622-B1018

91645C1232

main91645-C1232

38 parts on this diagram · 3 diagrams in section
