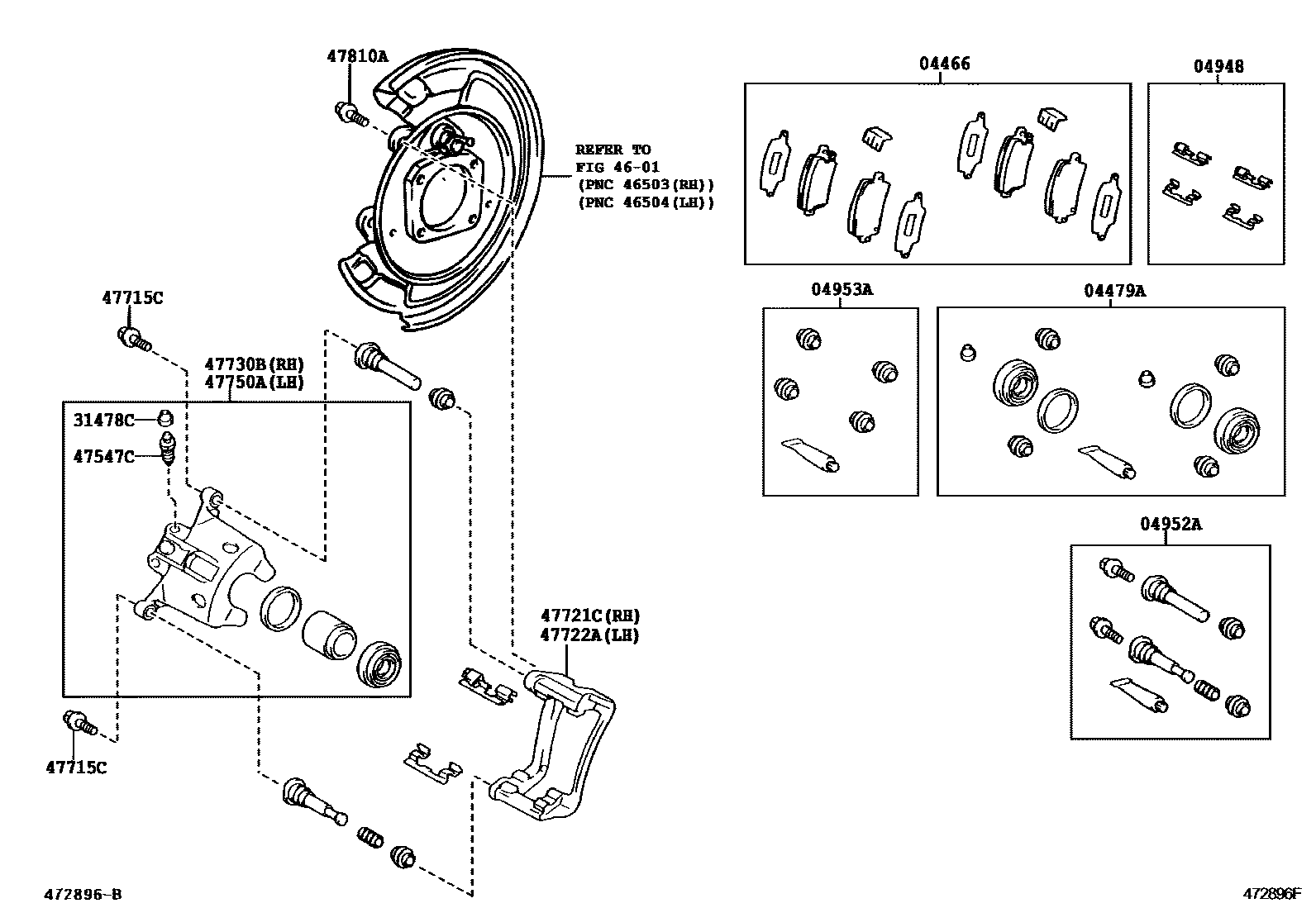

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-02070iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA¥8,300200201-200702

MARK TRW FER 4088F

sub04466-02160¥8,300

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02090iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA200201-200406

04948FITTING KIT, DISC BRAKE, REAR

main04948-02030iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04952-02040iCDE120,NDE120,ZZE12#..UKP200201-200612

sub04956-09020

main04956-09020iCDE120,NDE120,ZZE12#..UKP200612

04953ABOOT KIT, REAR DISC BRAKE CYLINDER SLIDE PIN

main04953-02020iCDE120,NDE120,ZZE12#..UKP200406

main04953-02040iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

sub04953-02020

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main47548-02010iCDE120,NDE120,ZZE12#..UKP200201-200406

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-05011iCDE120,NDE120,ZZE12#..UKP200410-200611

sub47547-05012

main47547-05012iCDE120,NDE120,ZZE12#..UKP200612

main90080-93014iCDE120,NDE120,ZZE12#..UKP200201-200410

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-02090iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200611

sub47715-02091¥650

main47715-02091iCDE120,NDE120,ZZE12#..UKP¥650200612

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-02110iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200611

sub47721-02111

main47721-02111iCDE120,NDE120,ZZE12#..UKP200612

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-02110iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200611

sub47722-02111

main47722-02111iCDE120,NDE120,ZZE12#..UKP200612

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-02110iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200611

sub47730-02111

main47730-02111iCDE120,NDE120,ZZE12#..UKP200612

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-02110iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200611

sub47750-02111

main47750-02111iCDE120,NDE120,ZZE12#..UKP200612

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10263iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA¥190200201-200406

14 parts on this diagram · 1 diagram in section
