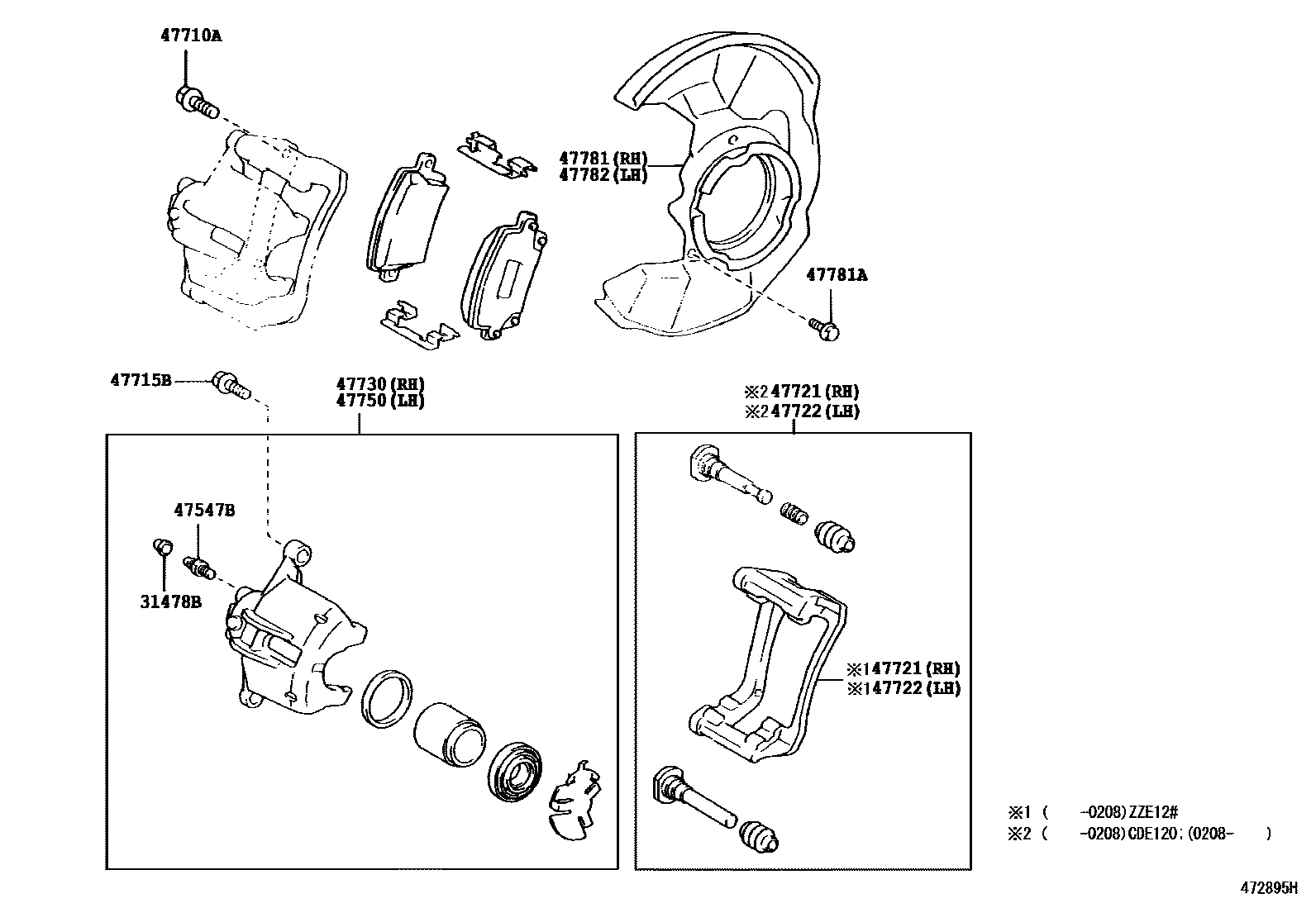

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main47548-02010iCDE120,ZZE12#..UKP200201-200406

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-05011iCDE120,NDE120,ZZE12#..UKP200410-200611

sub47547-05012

main47547-05012iCDE120,NDE120,ZZE12#..UKP200612

main90080-93014iCDE120,ZZE12#..UKP200201-200410

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iCDE120,ZZE12#..UKP¥160200201-200406

*12-1.25PX29.5-23

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-02091iCDE120,NDE120,ZZE12#..UKP¥650200612

main90080-10190iCDE120,ZZE12#..UKP200201-200611

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-02090iZZE12#..UKP200201-200208

sub47721-09160

main47721-09060iCDE120..UKP¥8,500200201-200612

sub47721-09380¥8,500

main47721-09160iZZE12#..UKP200208-200612

sub47721-09400

main47721-09380iCDE120,NDE120..UKP¥8,500200612

main47721-09400iZZE12#..UKP200612

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-02170iZZE12#..UKP200201-200208

sub47721-09170

main47721-09090iCDE120..UKP200201-200612

sub47721-09390

main47721-09170iZZE12#..UKP200208-200612

sub47721-09410

main47721-09390iCDE120,NDE120..UKP200612

main47721-09410iZZE12#..UKP200612

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-02100iZZE12#..UKP..SED200201-200611

sub47730-02101

main47730-02101iCDE120,NDE120,ZZE12#..UKP200612

main47730-02190iZZE12#..UKP200201-200208

sub47730-02100

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-02100iZZE12#..UKP..SED200201-200611

sub47750-02101

main47750-02101iCDE120,NDE120,ZZE12#..UKP200612

main47750-02190iZZE12#..UKP200201-200208

sub47750-02100

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-02040iCDE120,ZZE12#..UKP¥1,680200301-200406

(L)FRAME NO.=EXXXXXX

sub47781-02070

main47781-02070iCDE120,ZZE12#..UKP200301-200406

(L)FRAME NO.=RXXXXXX

main47781-02070iCDE120,NDE120,ZZE12#..UKP200406

main47781-12240iCDE120,ZZE12#..UKP¥1,690200201-200301

main47781-12240iCDE120,ZZE12#..UKP¥1,690200301-200406

(J)

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90080-11525iCDE120,ZZE12#..UKP¥100200201-200406

(L)

main90080-11525iCDE120,NDE120,ZZE12#..UKP¥100200406

main90119-06227iCDE120,ZZE12#..UKP¥90200201-200406

(J)

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-02040iCDE120,ZZE12#..UKP¥1,680200301-200406

(L)FRAME NO.=EXXXXXX

sub47782-02070

main47782-02070iCDE120,ZZE12#..UKP200301-200406

(L)FRAME NO.=RXXXXXX

main47782-02070iCDE120,NDE120,ZZE12#..UKP200406

main47782-12240iCDE120,ZZE12#..UKP¥1,690200301-200406

(J)

main47782-12240iCDE120,ZZE12#..UKP¥1,690200201-200301

11 parts on this diagram · 2 diagrams in section
