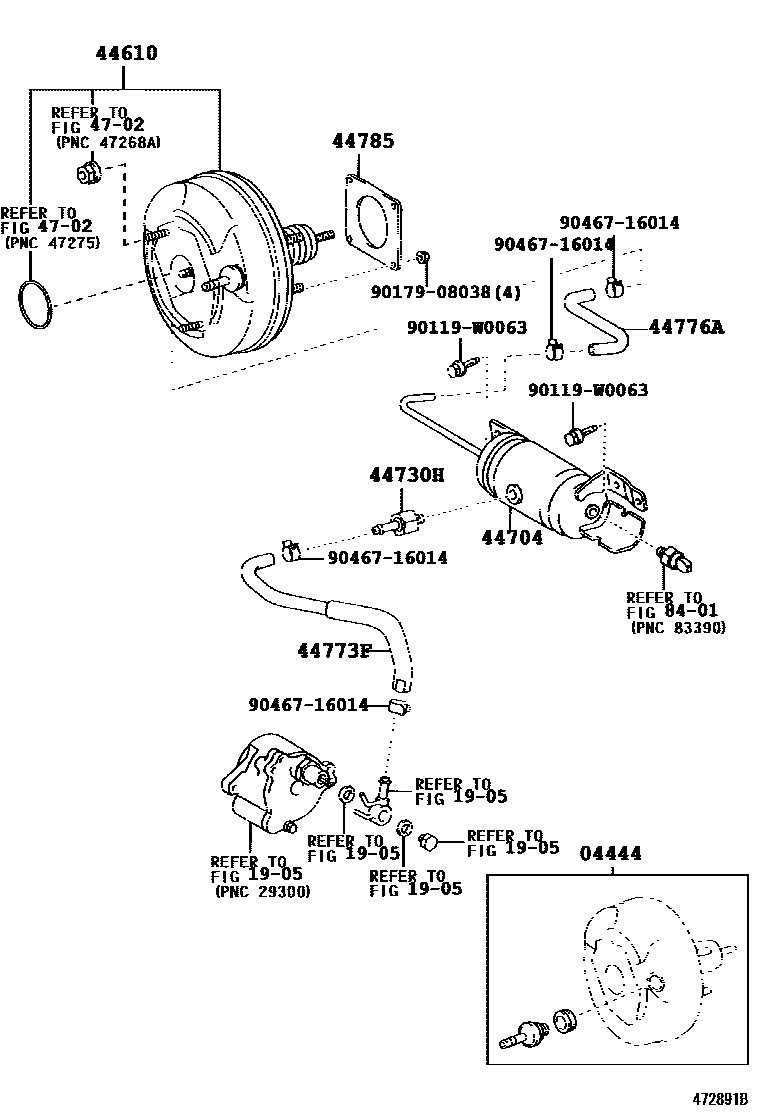

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

04444VALVE KIT, BOOSTER CONTROL

main04444-02010iCDE120..UKP200304-200406

1905

44610BOOSTER ASSY, BRAKE

main44610-09050iCDE120..UKP..RHD200201-200612

sub44610-09470

main44610-09060iCDE120..UKP..LHD200201-200406

sub44610-09480

main44610-09070iZZE12#..UKP..RHD200201-200612

sub44610-09380

main44610-09080iZZE12#..UKP..LHD200201-200612

sub44610-09370

main44610-09100iCDE120,NDE120..UKP..LHD200406-200612

sub44610-09360

main44610-09360iCDE120,NDE120..UKP..LHD200612

main44610-09370iZZE12#..UKP..LHD200612

main44610-09380iZZE12#..UKP..RHD200612

main44610-09470iCDE120,NDE120..UKP..RHD200612

44704RESERVOIR SUB-ASSY, VACUUM

main44704-12150iCDE120..UKP..RHD200201-200406

main44704-12160iCDE120..UKP..LHD200201-200406

44730HVALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR)

main44730-12080iCDE120..UKP200201-200406

44773HOSE, VACUUM, NO.2

main44773-12790iCDE120..UKP..LHD200201-200406

44773FHOSE, UNION TO CHECK VALVE

main44773-12750iCDE120..UKP200201-200406

44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

main44776-12160iCDE120..UKP..RHD200201-200406

44785GASKET, BRAKE BOOSTER

main44785-20020iCDE120,ZZE12#..UKP200201-200406

4702

8401

90119W0063

main90119-W0063

9017908038

main90179-08038

9046716014

main90467-16014

14 parts on this diagram · 8 diagrams in section
