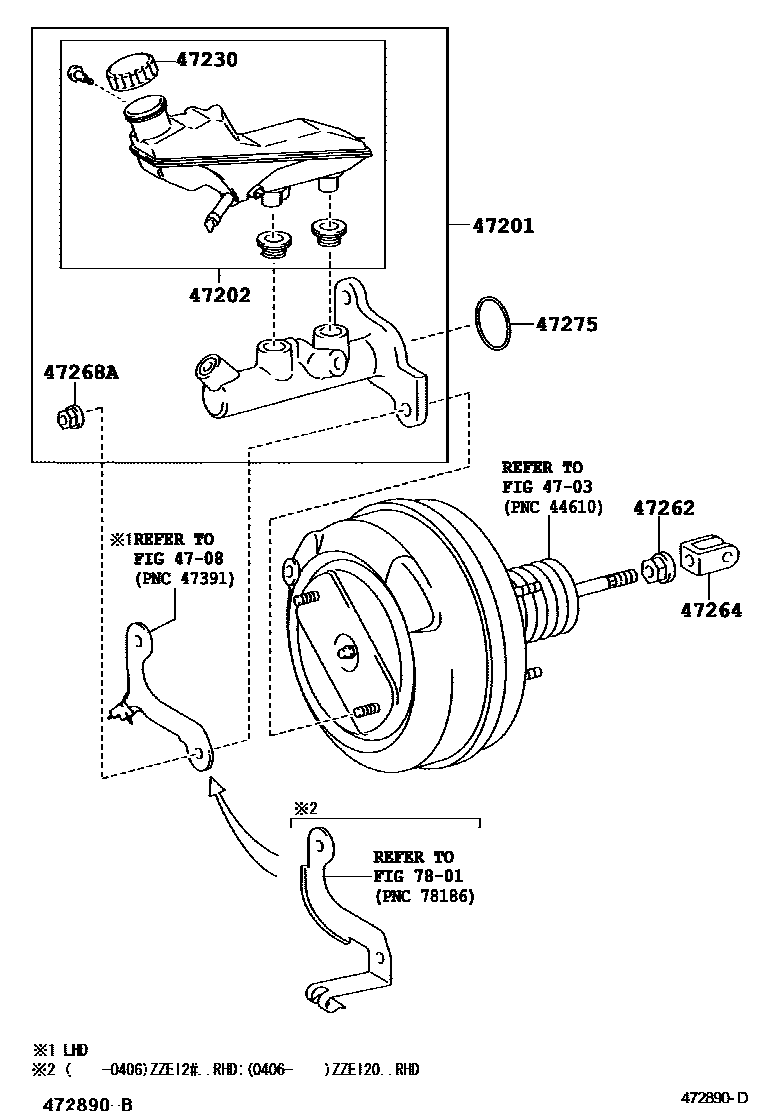

BRAKE MASTER CYLINDER

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09040iCDE120..UKP..RHD..DCR;ZZE121..UKP..RHD..SOL200201-200612

sub47201-09270

main47201-09050iCDE120,NDE120,ZZE12#..UKP..RHD200406-200510

W(VSC)

sub47201-09280

main47201-09060iZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA200201-200612

sub47201-09250

main47201-09070iCDE120,NDE120,ZZE12#..UKP..LHD200406-200612

W(VSC)

sub47201-09260

main47201-09250iCDE120,NDE120,ZZE12#..UKP..LHD200612

sub47201-09470

main47201-09260iCDE120,NDE120,ZZE12#..UKP..LHD200612

W(VSC)

sub47201-09480

main47201-09270iCDE120,NDE120,ZZE12#..UKP..RHD200612

sub47201-09420

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-09010iZZE12#..UKP..RHD..TERRA200201-200406

main47220-09020iCDE120,NDE120,ZZE12#..UKP..LHD200201-200406

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-02100iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA200201-200406

47262NUT, MASTER CYLINDER PUSH ROD

main47262-02010iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200611

sub47262-02011

main47262-02011iCDE120,NDE120,ZZE12#..UKP200612

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-02020iZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA200201-200406

main47264-02050iCDE120..UKP..RHD..DCR;ZZE121..UKP..RHD..SOL200201-200406

47268ANUT, BRAKE MASTER CYLINDER

main47268-02010iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200611

main47268-0K030iCDE120,NDE120,ZZE12#..UKP200612

47275GASKET, BRAKE MASTER CYLINDER

main47275-02010iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

7801

10 parts on this diagram · 1 diagram in section
