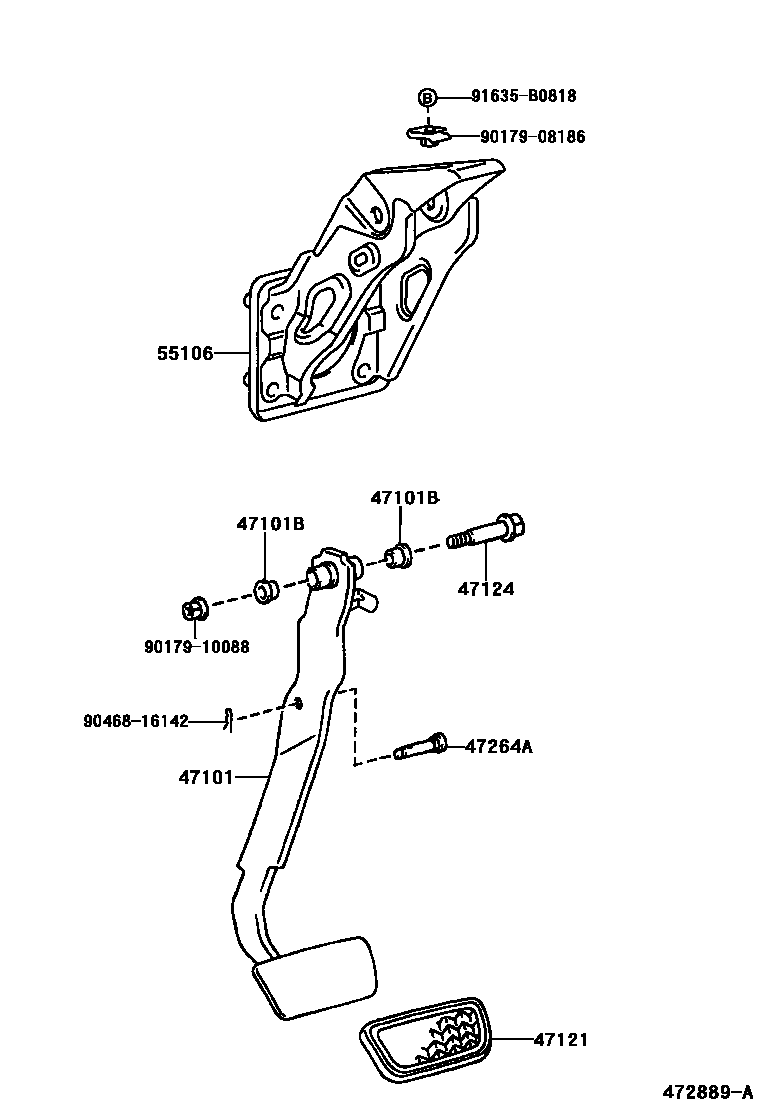

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-02110iZZE12#..UKP..RHD..TERRA200201-200406

main47101-02120iCDE120..UKP..LHD..DCR200201-200406

main47101-02130iZZE121..UKP..WG..4FC..TERRA200201-200406

main47101-02140iZZE121..UKP..RHD..SOL200201-200406

sub47101-02100

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

47121PAD, BRAKE PEDAL

main31321-52010iCDE120,NDE120,ZZE12#..UKP..5F200201-200406

main47121-52010iZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA200201-200406

47124SHAFT, BRAKE PEDAL

main90109-10174iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

47264APIN(FOR PUSH ROD)

main47148-12070iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-02070iZZE12#..UKP..RHD..TERRA200201-200406

main55106-02080iCDE120..UKP..LHD..DCR;ZZE121..UKP..WG..4FC..TERRA200201-200406

9017908186

main90179-08186

9017910088

main90179-10088

9046816142

main90468-16142

91635B0818

main91635-B0818

10 parts on this diagram · 1 diagram in section
