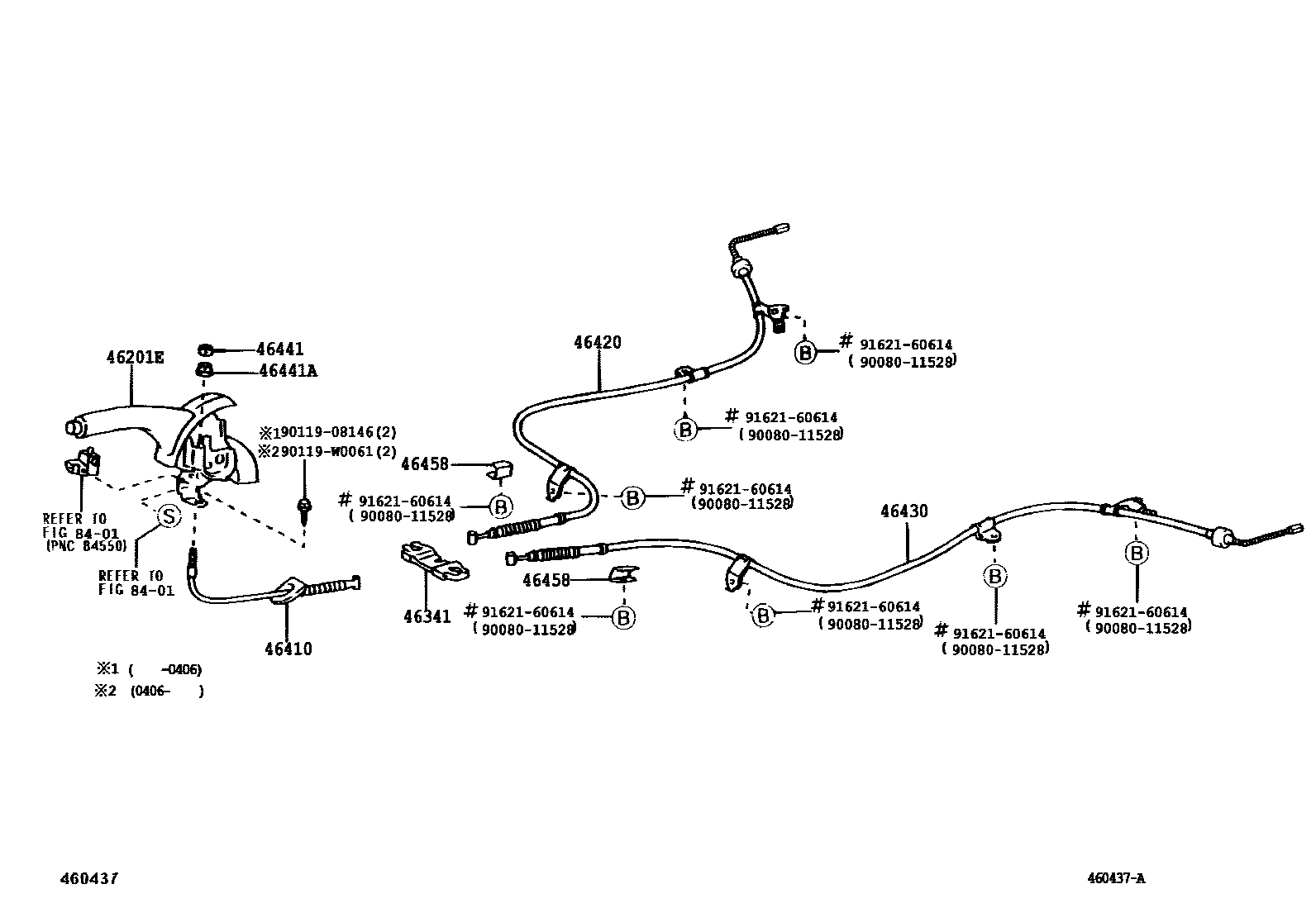

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-02120-B0iCDE120,ZZE12#..UKP..RHD200201-200205

DK.GRAY,TRIM1#

sub46201-02121

main46201-02121-B0iCDE120,ZZE12#..UKP..RHD200301-200406

FRAME NO.=EXXXXXX,DK.GRAY,TRIM1#

main46201-02121-B0iCDE120,ZZE12#..UKP..RHD200205-200301

DK.GRAY,TRIM1#

main46201-02130-B0iCDE120,ZZE12#..UKP..LHD200201-200205

DK.GRAY,TRIM1#

sub46201-02131

main46201-02131-B0iCDE120,ZZE12#..UKP..LHD200205-200301

DK.GRAY,TRIM1#

main46201-02131-B0iCDE120,ZZE12#..UKP..LHD200301-200406

FRAME NO.=EXXXXXX,DK.GRAY,TRIM1#

main46201-02180-B0iCDE120,ZZE12#..UKP..RHD200301-200406

FRAME NO.=RXXXXXX,DK.GRAY,TRIM1#

main46201-02180-B0iCDE120,NDE120,ZZE12#..UKP..RHD200406

DK.GRAY,TRIM1#

main46201-02190-B0iCDE120,NDE120,ZZE12#..UKP..LHD200406

DK.GRAY,TRIM1#

main46201-02190-B0iCDE120,ZZE12#..UKP..LHD200301-200406

FRAME NO.=RXXXXXX,DK.GRAY,TRIM1#

46341EQUALIZER, PARKING BRAKE

main46341-02040iZZE12#..UKP..SED..5F;ZZE121..UKP..LHD..SED..4FC200301-200406

FRAME NO.=RXXXXXX

main46341-02040iCDE120,NDE120,ZZE12#..UKP200406

main46341-20070iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA200201-200406

main46341-20070iZZE12#..UKP..SED..5F;ZZE121..UKP..LHD..SED..4FC200301-200406

(J)

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-02070iCDE120,NDE120,ZZE12#..UKP200301-200406

(L)

main46410-12270iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200301-200406

(J)

main46410-12270iCDE120,ZZE12#..UKP..(DCR,HTWC)200201-200301

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-02090iCDE120..UKP..SED..DCR;ZZE121..UKP..RHD..SOL200301-200406

FRAME NO.=RXXXXXX

main46420-02090iCDE120,NDE120,ZZE12#..UKP200406

main46420-02110iCDE120,ZZE12#..UKP..SED..(DCR,HTWC)200301-200307

FRAME NO.=EXXXXXX

sub46420-02111

main46420-02111iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200307-200406

FRAME NO.=EXXXXXX

sub46420-02090

main46420-12540iCDE120,ZZE12#..UKP..(DCR,HTWC)200201-200301

main46420-12541iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA200301-200406

(J)

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-02090iCDE120..UKP..SED..DCR;ZZE121..UKP..RHD..SOL200301-200406

FRAME NO.=RXXXXXX

main46430-02090iCDE120,NDE120,ZZE12#..UKP200406

main46430-02110iCDE120,ZZE12#..UKP..SED..(DCR,HTWC)200301-200307

FRAME NO.=EXXXXXX

sub46430-02111

main46430-02111iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200307-200406

FRAME NO.=EXXXXXX

sub46430-02090

main46430-12440iCDE120,ZZE12#..UKP..(DCR,HTWC)200201-200301

main46430-12441iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA200301-200406

(J)

46441NUT, WIRE ADJUSTING, NO.1

main90080-17171iCDE120,ZZE12#..UKP200201-200202

(L)

main90178-W0019iCDE120,NDE120,ZZE12#..UKP200406

main90179-06299iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200202-200406

main90179-06299iCDE120,ZZE12#..UKP200201-200202

(J)

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06171iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

46458RETAINER, CABLE

main46458-28010iZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

8401

9008011528

main90080-11528

9011908146

main90119-08146

90119W0061

main90119-W0061

9162160614

main91621-60614

13 parts on this diagram · 3 diagrams in section
